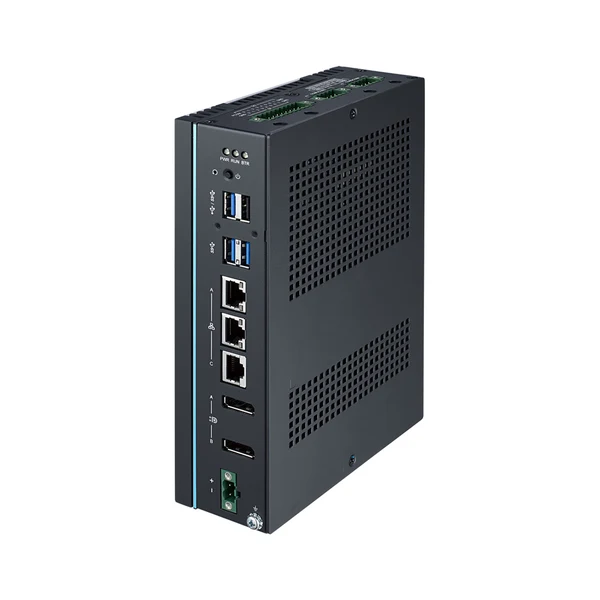

Advantech UNO-100 Series — Edge PC
DIN-rail, fanless edge controller / IPC series — 5 models from Intel Atom to 13th Gen Core i7; isolated COM and digital I/O, 2.5GbE TSN, M.2 NVMe, mPCIe + SIM, TPM 2.0, 10 – 36 VDC, wide temperature down to −40 °C; iDoor / PCIe ×4 extension kits.
Manufacturer: Advantech
Processors: Atom x6413E / x6425RE / E3940 · 11th Gen Core · 13th Gen Core
Mounting: DIN rail, fanless aluminium housing, 10 – 36 VDC
Expansion: mPCIe + nano SIM · M.2 · iDoor / PCIe ×4 second-stack kit
Number of models: 5 (current UNO-1xx models)
UNO-100 is Advantech’s DIN-rail edge controller series (“Din-Rail Automation Controller” in the Advantech catalogue): a fanless, modular industrial computer that clips onto the rail next to the PLC inside the cabinet. It collects data at the source — from the sensor, drive and PLC layer — pre-processes it and sends only summarised data to the cloud or a central server. The series comes in three size classes: the pocket-size UNO-127, the small-size UNO-137 / 137 V2 and the full-size UNO-148 / 148 V2; all share isolated I/O, TPM 2.0 and the second-stack extension architecture.
Common platform: DIN rail, fanless, isolated I/O
All models mount on a DIN rail in a fanless aluminium housing, are powered from a terminal block at 10 – 36 VDC (UNO-127: 10 – 30 VDC) and carry TPM 2.0. In the UNO-137/148 classes the serial ports and 8 DI / 8 DO are isolated to 2500 VDC and there are two DisplayPort outputs; 50 G shock, 2 – 4 Grms vibration resistance and IEC 61010 compliance are common. Where wide temperature is needed in field cabinets, UNO-137 and 137 V2 run from −40 to 70 °C, the others from −20 to 60 °C.
Which model for which job
UNO-148 V2 (13th Gen Core, 2 × NVMe RAID, 2 × 2.5GbE TSN, 4 × COM) for machine data acquisition, SCADA/MES edge server and image processing with an MXM GPU; UNO-148 (11th Gen Core, iBMC, Azure/AWS certified) for cloud-connected edge applications; UNO-137 V2 (Atom x6413E/x6425RE, 2 × 2.5GbE) and UNO-137 (Atom E3940) for small wide-temperature cabinets; UNO-127 (Atom x6413E, eMMC, HDMI) for low-power gateway and protocol conversion.
Expansion: iDoor and second-stack kits
On every model the full-size mPCIe (with nano SIM) takes a 4G/LTE module and the M.2 E key a Wi-Fi module. Second-stack extension kits — UNO-148-IS2EA (iDoor + 2.5″ SSD/HDD), UNO-148-P11EB (PCIe ×4), UNO-137-ID1EC and UNO-127-EKCE (iDoor) — add PROFINET, EtherCAT, PROFIBUS, EtherNet/IP and CANBus fieldbus, isolated serial ports, Gigabit/PoE Ethernet, digital I/O and MRAM through Advantech iDoor modules. UNO-148 V2 can take an NVIDIA Quadro MXM GPU via the UNO-MXM-CB01 carrier stack.
Where it is used
Edge node collecting and pre-processing machine and line data from the PLC layer; OPC UA / MQTT gateway and protocol converter; SCADA/HMI client and local data logger; control computer in cobot and AGV cells; remote monitoring unit in energy, water and smart-city cabinets. FST commissions the UNO controller together with Industrial Panels (FPM monitors), the sensor/camera layer and SCADA/IoT software as one solution.
Models in the series
The five current UNO-100 models are listed below; click a model name in the cards or the table for specifications, ordering and accessories. Contact us for the older-platform UNO-1372G / 1372G-J / 1372GH (Atom E3845, Celeron J1900; 1372GH explosion-proof C1D2) and the UNO-MXM-CB01 carrier stack in the same category.

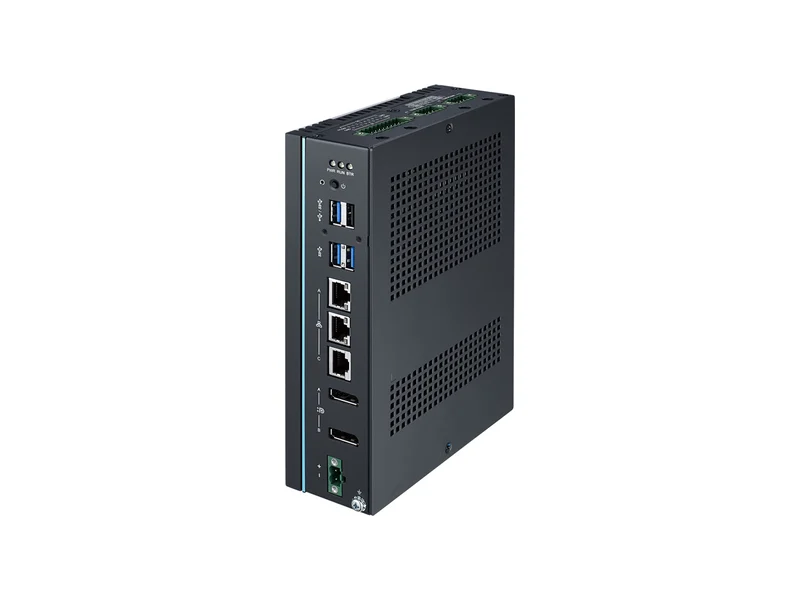

UNO-148 V2
13th Gen Core i3/i5/i7 · 3 × LAN (2 × 2.5GbE TSN) · 4 × COM · 8 DI / 8 DO · 2 × NVMe · iDoor / PCIe ×4 · New

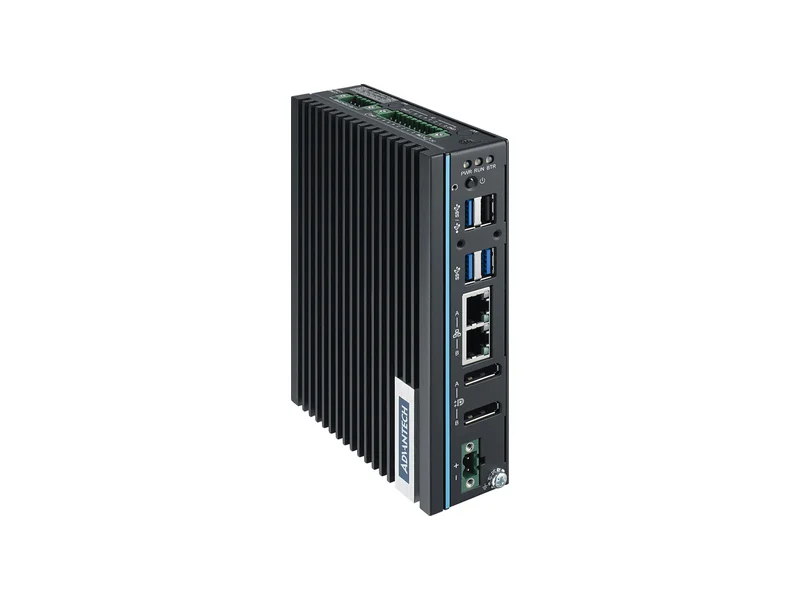

UNO-137 V2
Atom x6413E / x6425RE · 2 × 2.5GbE · 2 × COM · 8 DI / 8 DO · −40 to 70 °C · iDoor · New

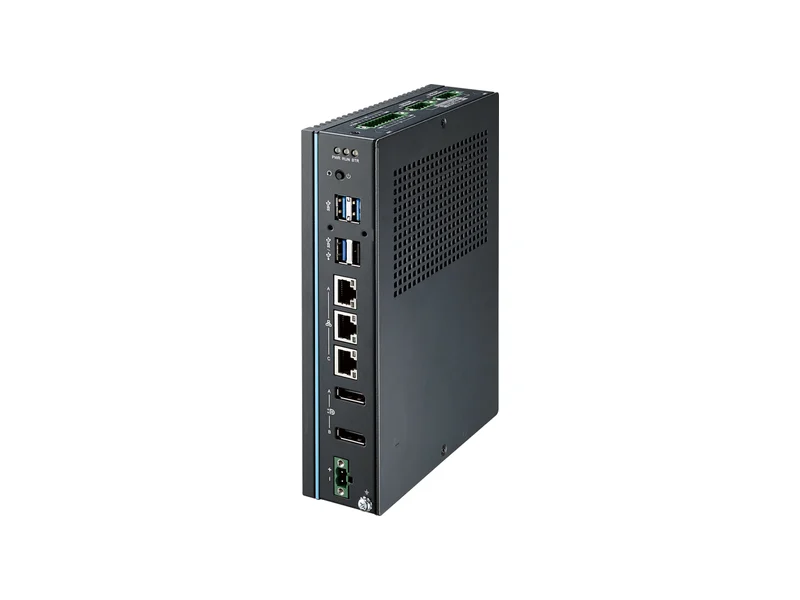

UNO-148
11th Gen Core i3/i5/i7 · 3 × LAN (1 × 2.5GbE TSN) · 4 × COM · 8 DI / 8 DO · iBMC · Azure / AWS certified
UNO-137
Atom E3940 · 2 × GbE · 2 × COM · 8 DI / 8 DO · −40 to 70 °C · IP40 · Azure / AWS certified

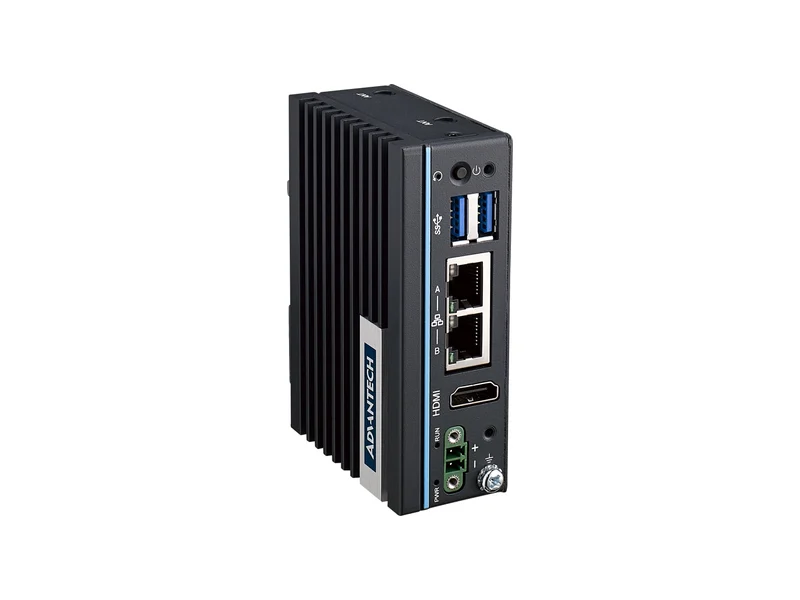

UNO-127
Atom x6413E · 4/8 GB · 64 GB eMMC · 2 × GbE · 2 × USB · HDMI · pocket size · Ubuntu Core certified
| Model | Processor | Interfaces | Operating temperature | Dimensions | Power (typ. / max.) |
|---|---|---|---|---|---|
| UNO-148 V2 | Core i3/i5/i7 (13th Gen) | 3 × LAN · 4 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP | −20 to 60 °C | 53 × 140 × 200 mm | 41 W / 63 W |
| UNO-137 V2 | Atom x6413E / x6425RE | 2 × 2.5GbE · 2 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP | −40 to 70 °C | 35 × 105 × 150 mm | 21 W / 44 W |
| UNO-148 | Core i3/i5/i7 (11th Gen) | 3 × LAN · 4 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP | −20 to 60 °C | 45 × 140 × 200 mm | 31 W / 55 W |
| UNO-137 | Atom E3940 | 2 × GbE · 2 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP | −40 to 70 °C | 35 × 105 × 150 mm | 21 W / 47 W |
| UNO-127 | Atom x6413E | 2 × GbE · 2 × USB · HDMI | −20 to 60 °C | 33.5 × 70 × 100 mm | 15.8 W / 35 W |
Is UNO-100 right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s choose the processor class, extension kit and iDoor modules together.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-148 V2 (17 August 2026), UNO-137 V2 (23 July 2025), UNO-148 (23 July 2025), UNO-137 (22 May 2023) and UNO-127 (3 March 2026) datasheets and the advantech.com product pages.
