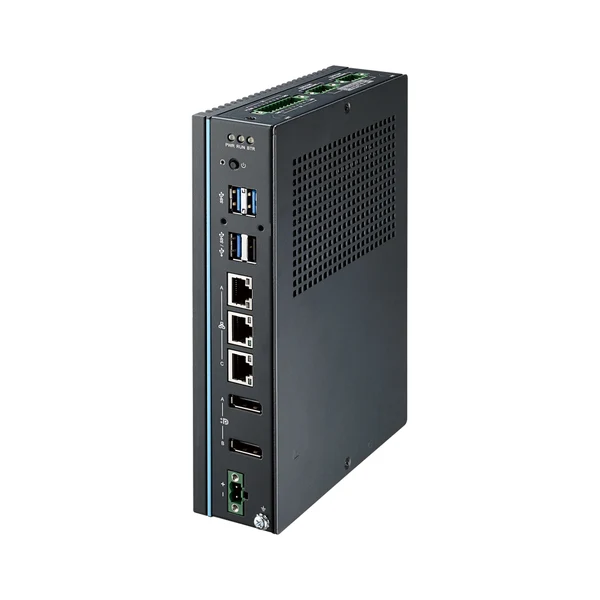

ADVANTECH UNO-148 — Edge PC
Fanless DIN-rail edge controller with an 11th Gen Intel Core i3/i5/i7 — 3 × LAN (1 × 2.5GbE TSN), 4 × isolated COM, 8 DI / 8 DO, 4 × USB, 2 × DP 1.4 (8K), M.2 NVMe + M.2 B key, mPCIe + nano SIM, iBMC remote management, TPM 2.0, 10 – 36 VDC, −20 to 60 °C; Azure IoT Edge / AWS Greengrass certified.
Status: In production
Product: Fanless DIN-rail edge controller — 11th Gen Intel Core, 8 GB DDR4, iBMC
CPU: Intel Core i3-1115G4E / i5-1145G7E / i7-1185G7E (11th Gen)
Interfaces: 3 × LAN · 4 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP
Storage: M.2 2280 NVMe + M.2 B key 2242
Environment: −20 to 60 °C · 10 – 36 VDC · IP20
UNO-148 is the UNO-100 series DIN-rail edge controller with an 11th Gen Intel Core (i3-1115G4E, i5-1145G7E or i7-1185G7E, Iris Xe graphics); the 45 × 140 × 200 mm, 1.3 kg fanless aluminium body holds 8 GB DDR4-3200 (up to 64 GB), an M.2 2280 NVMe and an M.2 B key 2242 SATA SSD slot. One of the three Ethernet ports is 2.5GbE Intel I225 with TSN; there are four isolated RS-232/422/485, 8 isolated digital inputs, 8 digital outputs, four USB and two DisplayPort 1.4 outputs with 8K support. Out-of-band remote power management with Advantech iBMC and Microsoft Azure IoT Edge / AWS IoT Greengrass certification aim this model at cloud-connected edge applications.
The mPCIe + nano SIM and M.2 B key 3042/3052 slots take a 4G/5G module, the M.2 E key slot Wi-Fi. The UNO-148-IS2EA (iDoor + 2.5″ SSD/HDD) and UNO-148-P11EB (PCIe ×4) second-stack kits add fieldbus, extra I/O or a PCIe card. 10 – 36 VDC input, 31 W typical / 55 W max. consumption, −20 to 60 °C operating range, 50 G shock and 4 Grms vibration resistance and IEC 61010-1 compliance are intended for in-cabinet use. Compared with UNO-148 V2 it offers an 11th Gen instead of a 13th Gen processor, a single NVMe and a single 2.5GbE port; it is chosen for extending existing UNO-148 installations or projects requiring iBMC/cloud certification. Windows 10/11 LTSC and AdvLinux images can be ordered.
Technical specifications
| UNO-148 | |
|---|---|
| System hardware | |
| Processor | 11th Gen Intel Core i7-1185G7E (quad-core, 1.8 GHz, up to 4.4 GHz) / i5-1145G7E (quad-core, 1.5 GHz, up to 4.1 GHz) / i3-1115G4E (dual-core, 2.2 GHz, up to 3.9 GHz) |
| Memory | 8 GB DDR4-3200 SO-DIMM (2 slots, up to 64 GB; select the CPU/RAM thermal pad when expanding) |
| Graphics | Intel Iris Xe |
| Storage | 1 × M.2 M key 2280 NVMe (PCIe ×4); 1 × M.2 B key 2242 SSD (SATA) |
| BIOS / watchdog | AMI UEFI 256 Mbit; programmable timer with 255 intervals (1 – 255 s) |
| Security / management | TPM 2.0; remote out-of-band (OOB) power management with Advantech iBMC |
| LED indicators | Power, RTC battery, LAN (active/status), 1 × programmable |
| I/O | |
| Serial ports | 4 × isolated RS-232/422/485 (terminal block), 50 – 115.2 kbps, 2500 VDC isolation |
| LAN | 1 × 2.5GbE (Intel I225-LM, TSN IEEE 802.1Qav/Qbv) + 2 × GbE (Intel I210-IT, I219-LM), IEEE 802.3az/802.1AS |
| USB | 3 × USB 3.2 Gen2, 1 × USB 2.0 |
| Isolated DI/O | 8 × isolated digital inputs (2500 VDC; wet contact 10 – 30 VDC, dry contact) and 8 × digital outputs (5 – 30 VDC, 500 mA sink per channel) |
| Displays | 2 × DisplayPort 1.4, up to 7680 × 3840 (8K) @ 60 Hz |
| Power connector | 1 × 2-pin terminal block |
| Expansion | |
| Slots | 1 × full-size mPCIe (PCIe/USB 2.0); 1 × M.2 E key 2230 Wi-Fi (PCIe); 1 × M.2 B key 2242 SSD (SATA) or 3042/3052 cellular module (USB); 1 × nano SIM |
| Second-stack extension kit | UNO-148-IS2EA: 1 × iDoor + 1 × 2.5″ SSD/HDD (SATA); UNO-148-P11EB: 1 × PCIe ×4 (24 VDC ± 20 % recommended) |
| iDoor | iDoor modules (with the second-stack extension kit): CANBus / PROFIBUS / PROFINET / EtherCAT / EtherNet/IP fieldbus, isolated RS-232/422/485, Gigabit and PoE Ethernet, 24-ch digital I/O, MRAM, locked USB — full list in the datasheet |
| Physical characteristics | |
| Dimensions (W × D × H) | 45 × 140 × 200 mm |
| Weight (net) | 1.3 kg |
| Enclosure | Aluminium housing |
| Mounting | DIN rail |
| Power and software | |
| Power input | 10 – 36 VDC |
| Power consumption | 31 W typical, 55 W max. (61 W with IS2EA kit, 76 W with P11EB) |
| OS support | Windows 10 2019 LTSC, Windows 11, AdvLinux (Ubuntu 20.04) |
| Cloud certification | Microsoft Azure IoT Edge, Amazon AWS IoT Greengrass |
| Environment | |
| Operating temperature | −20 to 60 °C (with 0.7 m/s airflow) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % RH @ 40 °C (non-condensing) |
| Shock | Operating, IEC 60068-2-27, 50 G, half sine, 11 ms |
| Vibration | Operating, IEC 60068-2-64, 4 Grms (SSD) / 0.3 Grms (HDD), 5 – 500 Hz |
| Ingress protection | IP20 |
| Certification | |
| Certification | CE, FCC, UL 61010-2-201, CCC, BSMI, RHEL 8.4+ (datasheet); the web table also lists CB. IEC 61010-1 compliant |
Key features
- 11th Gen Intel Core i3/i5/i7 processor with 8 GB DDR4 (up to 64 GB)
- Port isolation for 8 × DI, 8 × DO and 4 × COM
- M.2 M key 2280 NVMe SSD, M.2 B key 2242 SSD / 3042-3052 cellular module, M.2 E key 2230 Wi-Fi
- Time-Sensitive Networking (TSN) on the 2.5GbE port
- Remote out-of-band power management with Advantech iBMC
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
- Modular design with optional iDoor / PCIe ×4 extension kit
Ordering information
| Part number | Description |
|---|---|
| UNO-148-B33BA | i3-1115G4E, 8 GB DDR4, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O |
| UNO-148-B53BA | i5-1145G7E, 8 GB DDR4, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O |
| UNO-148-B73BA | i7-1185G7E, 8 GB DDR4, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O |
| UNO-148-B53BU | i5-1145G7E, 8 GB DDR4, US region |
| UNO-148-IS2EA | Extension kit: 1 × iDoor + 1 × 2.5″ SSD/HDD slot |
| UNO-148-P11EB | Extension kit: 1 × PCIe ×4 slot |
The last letter of the part number indicates the region (A: general, U: US). Memory/storage upgrades, wireless modules and the extension kit are configured at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSD-A120W24-MN | DIN-rail power supply 100 – 240 V, 120 W, 24 V (NDR) |
| PSD-A120W24 | DIN-rail power supply 100 – 240 V, 120 W, 24 V |
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V (C14) |
| 1702002605 | Power cable, EU plug, 1.8 m (industrial grade) |
| UNO-148-FANKIT | Cooling fan kit |
| 98R1U148100 | Thermal kit for add-on NVMe |
| 1990031130N010 / 1990026184N000 | Thermal pad for CPU / RAM |
| 32CS2271000101 | Edge service package with AWS IoT Greengrass |
Is this controller right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s configure the processor class, memory/storage, extension kit and iDoor modules together. FST commissions the UNO controller together with SCADA/IoT software and the sensor/camera layer as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-148 datasheet dated 23 July 2025 and the advantech.com product page.
