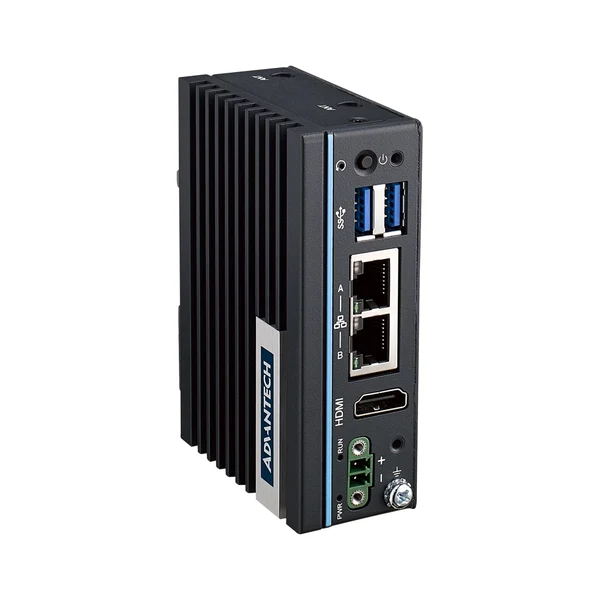

ADVANTECH UNO-127 — Edge PC
Pocket-size (33.5 × 70 × 100 mm) fanless DIN-rail edge IPC with an Intel Atom x6413E — 4/8 GB DDR4, 64 GB eMMC, 2 × GbE, 2 × USB 3.2, HDMI, full-size mPCIe, TPM 2.0, 10 – 30 VDC, −20 to 60 °C; optional iDoor kit; Ubuntu Core 20 certified.
Status: In production
Product: Pocket-size DIN-rail edge IPC — Intel Atom x6413E, 64 GB eMMC
CPU: Intel Atom x6413E (1.5 GHz, quad-core)
Interfaces: 2 × GbE · 2 × USB 3.2 · HDMI · mPCIe
Storage: 64 GB eMMC (optional mSATA)
Environment: −20 to 60 °C · 10 – 30 VDC · IP30
UNO-127 is the pocket-size (33.5 × 70 × 100 mm, 0.5 kg) DIN-rail edge computer of the UNO-100 series: an Intel Atom x6413E quad-core, 4 or 8 GB onboard DDR4 and 64 GB onboard eMMC (256 GB on request) in a cable-free, fanless, vibration-resistant design. Basic I/O consists of two Gigabit Ethernet (Intel I210), two USB 3.2 and one HDMI (1080p) output; the full-size mPCIe slot takes a Wi-Fi/Bluetooth, LTE (Quectel EG25G) or mSATA module. TPM 2.0 and an isolated grounding system are built in; it is IEC 61010-2-201 certified.
The UNO-127-EKCE second-stack kit adds a slot for iDoor modules (fieldbus, serial, Ethernet/PoE, digital I/O). 10 – 30 VDC input, 15.8 W typical / 35 W max. consumption, −20 to 60 °C operating range, 50 G shock and 2 Grms vibration resistance and IP30 rating apply. It is Canonical Ubuntu Core 20 certified hardware compatible with Advantech WISE-DeviceOn / WISE IoT Edge software; Windows 10/11 LTSC and Ubuntu 20.04 are supported. According to Advantech’s datasheet the -E22BA / -E23BA / -E22BU versions reached end of life in August 2026; current orders use the -E22CA / -E23CA / -E22CU codes.
Technical specifications
| UNO-127 | |
|---|---|
| System hardware | |
| Processor | Intel Atom x6413E, quad-core, 1.5 GHz |
| Memory | 4 GB or 8 GB DDR4-2666, onboard |
| Graphics | Intel UHD Graphics |
| Storage | Onboard 64 GB eMMC (up to 256 GB upon request); optional mSATA (shared with the mPCIe slot) |
| BIOS / watchdog | AMI EFI x64; programmable timer with 255 intervals (1 – 255 s) |
| Security | TPM 2.0 (library revision 1.38); isolated grounding system |
| LED indicators | Power, Run (programmable), LAN (active/status) |
| I/O | |
| LAN | 2 × 10/100/1000 Mbps RJ45 (Intel I210-IT) |
| USB | 2 × USB 3.2 Gen1 |
| Display output | 1 × HDMI (1920 × 1080 @ 60 Hz) |
| Power connector | 1 × 2-pin terminal block |
| Expansion | |
| Slots | 1 × full-size mPCIe (SATA/PCIe/USB 2.0) — Wi-Fi, LTE (Quectel EG25G with SIM holder) or mSATA |
| Second-stack extension kit | UNO-127-EKCE: 1 × iDoor slot (chassis only; the datasheet introduction also mentions a 4 × COM + M.2 B key kit) |
| iDoor | iDoor modules (with the second-stack extension kit): CANBus / PROFIBUS / PROFINET / EtherCAT / EtherNet/IP fieldbus, isolated RS-232/422/485, Gigabit and PoE Ethernet, 24-ch digital I/O, MRAM, locked USB — full list in the datasheet |
| Physical characteristics | |
| Dimensions (W × D × H) | 33.5 × 70 × 100 mm |
| Weight (net) | 0.5 kg |
| Enclosure | Aluminium housing |
| Mounting | DIN rail |
| Power and software | |
| Power input | 10 – 30 VDC |
| Power consumption | 15.8 W typical, 35 W max. |
| OS support | Windows 10 LTSC, Windows 11, Ubuntu 20.04, Ubuntu Core 20 |
| Software compatibility | Canonical Ubuntu Core 20 certification, WISE-DeviceOn, WISE IoT Edge |
| Environment | |
| Operating temperature | −20 to 60 °C @ 5 – 85 % RH (with 0.7 m/s airflow) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 10 – 95 % RH @ 40 °C (non-condensing) |
| Shock | Operating, IEC 60068-2-27, 50 G, half sine, 11 ms |
| Vibration | Operating, IEC 60068-2-64, 2 Grms, 5 – 500 Hz, 1 hr/axis (mSATA) |
| Ingress protection | IP30 |
| Certification | |
| Certification | CE, FCC, UL, CCC, BSMI; IEC 61010-2-201 certified |
Key features
- Intel Atom x6413E quad-core processor with 4 GB / 8 GB onboard DDR4
- Compact, robust, fanless and cable-free design
- Optimised basic I/O with 2 × GbE, 2 × USB 3.2 and 1 × HDMI
- Full-size mPCIe slot for flexible expansion; optional iDoor kit
- Built-in TPM 2.0 and isolated grounding system
- IEC 61010-2-201 certified; Ubuntu Core 20 certified hardware
- Windows 11 IoT Enterprise LTSC support
Ordering information
| Part number | Description |
|---|---|
| UNO-127-E22CA | Atom x6413E, 4 GB DDR4, 2 × GbE, 2 × USB, 1 × mPCIe, 1 × HDMI, 64 GB eMMC |
| UNO-127-E23CA | Atom x6413E, 8 GB DDR4, 2 × GbE, 2 × USB, 1 × mPCIe, 1 × HDMI, 64 GB eMMC |
| UNO-127-E22CU | Atom x6413E, 4 GB DDR4, 2 × LAN, 2 × USB, 1 × HDMI, made in Taiwan |
| UNO-127-E22BA / E23BA / E22BU | Previous versions — end of life in August 2026 according to Advantech’s datasheet |
| UNO-127-EKCE | Second-stack extension kit with 1 × iDoor slot |
The last letter of the part number indicates the region (A: general, U: US). Memory/storage upgrades, wireless modules and the extension kit are configured at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| UNO-IPS2460-AE | DIN-rail power supply 100 – 240 V, 60 W, 24 V |
| 96PSD-A60W24-MM | DIN-rail power supply 100 – 240 V, 60 W, 24 V (MDR) |
| PWR-247-DE | UNO series power adapter, 60 W |
| 1702002605 | Power cable, EU plug, 1.8 m (industrial grade) |
| EWM-W193H01E | Wi-Fi 802.11ac + Bluetooth 5.0 mPCIe module; half-to-full-size bracket 9656EWMG00E, antenna 1750008717-01, cable 1750008800-01 |
| 968AD00589 | Quectel EG25G LTE Cat. 4 mPCIe module with SIM holder; antenna 1750007990-01, cable 1750006264 |
Is this controller right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s configure the processor class, memory/storage, extension kit and iDoor modules together. FST commissions the UNO controller together with SCADA/IoT software and the sensor/camera layer as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-127 datasheet dated 3 March 2026 and the advantech.com product page.
