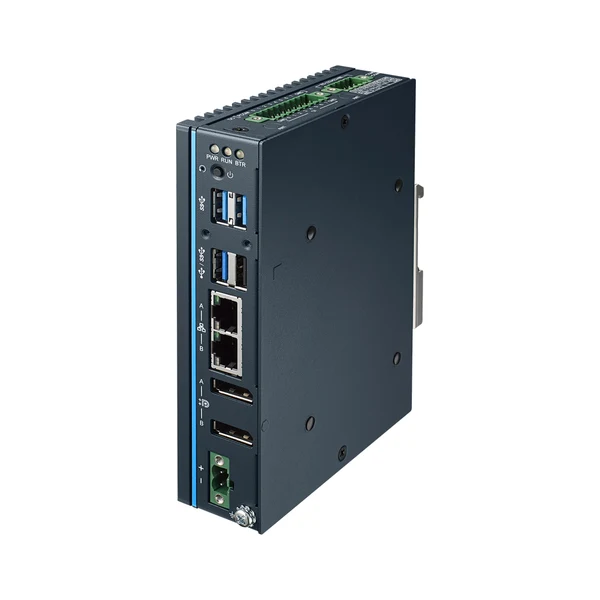

ADVANTECH UNO-137 — Edge PC
Small-size DIN-rail IPC with an Intel Atom E3940 and a −40 to 70 °C wide temperature range — 2 × GbE, 2 × isolated COM, 8 DI / 8 DO, 4 × USB, 2 × DP 1.2, 2.5″ SSD/HDD + M.2 B key, mPCIe + nano SIM, TPM 2.0, 10 – 36 VDC, IP40; Azure IoT Edge / AWS Greengrass certified.
Status: In production
Product: Small-size DIN-rail IPC — Intel Atom E3940, 8 GB DDR3L, −40 to 70 °C
CPU: Intel Atom E3940 (1.6 GHz, quad-core)
Interfaces: 2 × GbE · 2 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP
Storage: 2.5″ SSD/HDD + M.2 B key 2242
Environment: −40 to 70 °C · 10 – 36 VDC · IP40
UNO-137 is the first-generation small-size DIN-rail controller of the UNO-100 series: an Intel Atom E3940 quad-core (1.6 GHz), built-in 8 GB DDR3L, a 2.5″ SSD/HDD bay and an M.2 B key 2242 SATA SSD come in a 35 × 105 × 150 mm, 0.8 kg fanless aluminium body. The −40 to 70 °C wide operating range and IP40 rating suit field cabinets. It has two Gigabit Ethernet (Intel I210), two isolated RS-232/422/485, 8 isolated digital inputs, 8 digital outputs, four USB and two DisplayPort 1.2 outputs; TPM 2.0 is on board. Microsoft Azure IoT Edge and AWS IoT Greengrass certification target cloud-connected data-acquisition applications.
The full-size mPCIe slot and the M.2 B key 3042/3052 slot (with nano SIM) take a 4G/5G module; Advantech’s AIW-355DQ 5G module and its heatsink are on the accessory list. The modular design allows an optional iDoor extension. 10 – 36 VDC input, 21 W typical / 47 W max. consumption, 50 G shock and 4 Grms vibration resistance and IEC 61010-1 compliance apply. For new projects, UNO-137 V2 with 2.5GbE, DDR4 and a newer processor is recommended; UNO-137 is listed for refreshing existing installations and continuity with Windows 10 2019 LTSC / AdvLinux images.
Technical specifications
| UNO-137 | |
|---|---|
| System hardware | |
| Processor | Intel Atom E3940, quad-core, 1.6 GHz (up to 1.8 GHz) |
| Memory | Built-in 8 GB DDR3L-1600 (max. 8 GB) |
| Graphics | Intel HD Graphics |
| Storage | 1 × 2.5″ SSD/HDD (up to 9.5 mm); 1 × M.2 B key 2242 SSD (SATA) |
| BIOS / watchdog | AMI UEFI 128 Mbit; programmable timer with 255 intervals (1 – 255 s) |
| Security | TPM 2.0 |
| LED indicators | Power, RTC battery, LAN (active/status), 1 × programmable |
| I/O | |
| Serial ports | 2 × isolated RS-232/422/485 (terminal block), 50 bps – 115.2 kbps, 2500 VDC isolation |
| LAN | 2 × 10/100/1000 Mbps (Intel I210-IT, IEEE 802.1AS, 802.3az) |
| USB | 3 × USB 3.2 Gen1, 1 × USB 2.0 |
| Isolated DI/O | 8 × isolated digital inputs (2500 VDC; wet contact 10 – 30 VDC, dry contact) and 8 × digital outputs (5 – 30 VDC, 500 mA sink per channel) |
| Displays | 2 × DisplayPort 1.2, up to 4096 × 2306 @ 60 Hz |
| Power connector | 1 × 2-pin terminal block |
| Expansion | |
| Slots | 1 × full-size mPCIe (PCIe/USB); 1 × M.2 B key 2242 SSD (SATA) or 3042/3052 cellular module (USB); 1 × nano SIM |
| Second-stack extension | Optional 1 × iDoor extension kit (modular design; contact us for the kit part number) |
| iDoor | iDoor modules (with the second-stack extension kit): CANBus / PROFIBUS / PROFINET / EtherCAT / EtherNet/IP fieldbus, isolated RS-232/422/485, Gigabit and PoE Ethernet, 24-ch digital I/O, MRAM, locked USB — full list in the datasheet |
| Physical characteristics | |
| Dimensions (W × D × H) | 35 × 105 × 150 mm |
| Weight (net) | 0.8 kg |
| Enclosure | Aluminium housing |
| Mounting | DIN rail |
| Power and software | |
| Power input | 10 – 36 VDC |
| Power consumption | 21 W typical, 47 W max. (56 W with USB iDoor, 77 W with PoE iDoor) |
| OS support | Windows 10 2019 LTSC, AdvLinux (Ubuntu 20.04) |
| Cloud certification | Microsoft Azure IoT Edge, Amazon AWS IoT Greengrass |
| Environment | |
| Operating temperature | −40 to 70 °C (with 0.7 m/s airflow and wide-temperature SSD/wireless modules; keep below 60 °C with M.2 SSDs) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % RH @ 40 °C (non-condensing) |
| Shock | Operating, IEC 60068-2-27, 50 G, half sine, 11 ms |
| Vibration | Operating, IEC 60068-2-64, 4 Grms (SSD) / 0.3 Grms (HDD), 5 – 500 Hz |
| Ingress protection | IP40 |
| Certification | |
| Certification | CE, FCC, UL 61010-2-201, CCC, BSMI (datasheet); the web table also lists CB. IEC 61010-1 compliant |
Key features
- Intel Atom E3940 processor (1.6 GHz) with 8 GB DDR3L
- Wide operating temperature range (−40 to 70 °C)
- Port isolation for 8 × DI, 8 × DO and 2 × COM
- Modular design with optional 1 × iDoor extension
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
- 2.5″ SSD/HDD bay and M.2 B key 2242; on-board TPM 2.0
- IEC 61010-1 compliant, ruggedised DIN-rail kit
Ordering information
| Part number | Description |
|---|---|
| UNO-137-E13BA | Atom E3940 (1.6 GHz), 8 GB DDR3L, 2 × LAN, 2 × COM, 4 × USB, 8 × DI/O |
The last letter of the part number indicates the region (A: general, U: US). Memory/storage upgrades, wireless modules and the extension kit are configured at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| PSD-A60W24 | DIN-rail power supply 100 – 240 V, 60 W, 24 V |
| 96PSD-A120W24-MN | DIN-rail power supply 100 – 240 V, 120 W, 24 V (NDR) |
| PSD-A120W24 | DIN-rail power supply 100 – 240 V, 120 W, 24 V |
| XARK-ADP-90MDH | Power adapter 100 – 240 V, 90 W, 19 V (2-pin) |
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V (C14) |
| 1702002605 | Power cable, EU plug, 1.8 m (industrial grade) |
| AIW-355DQ-E01 | 5G (Sub-6) / LTE / WCDMA module, GNSS, Europe (China: -C01, US: -N01); heatsink UNO-M2-3052HS, antenna 1750009372-01 |
| UNO-137-VEGA330 | Accessory kit for VEGA-330 |
| 32CS2271000101 | Edge service package with AWS IoT Greengrass |
Is this controller right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s configure the processor class, memory/storage, extension kit and iDoor modules together. FST commissions the UNO controller together with SCADA/IoT software and the sensor/camera layer as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-137 datasheet dated 22 May 2023 and the advantech.com product page.
