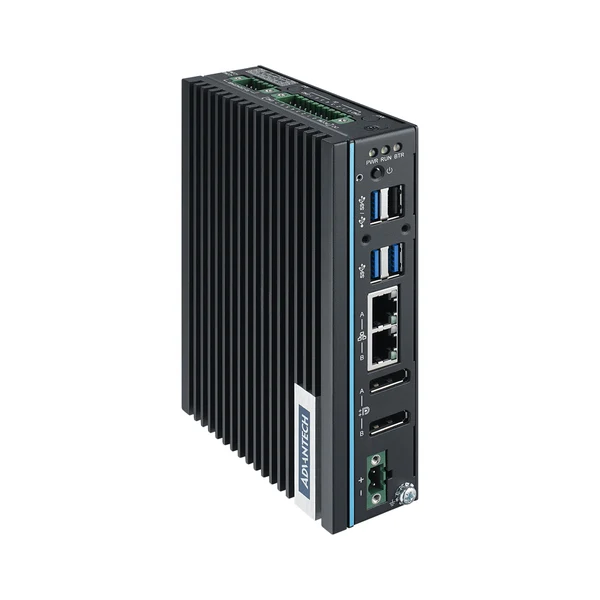

ADVANTECH UNO-137 V2 — Edge PC
Small-size DIN-rail IPC with an Intel Atom x6413E / x6425RE and a −40 to 70 °C wide temperature range — 2 × 2.5GbE, 2 × isolated COM, 8 DI / 8 DO, 4 × USB, 2 × DP 1.2, M.2 NVMe/SATA, mPCIe + nano SIM, TPM 2.0, 10 – 36 VDC; optional iDoor kit. Listed as “New” by Advantech.
Status: In production
Product: Small-size DIN-rail IPC — Intel Atom x6413E / x6425RE, 8 GB DDR4, −40 to 70 °C
CPU: Intel Atom x6413E (1.5 GHz) / x6425RE (1.9 GHz)
Interfaces: 2 × 2.5GbE · 2 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP
Storage: M.2 M key 2242 (NVMe/SATA)
Environment: −40 to 70 °C · 10 – 36 VDC · IP20
UNO-137 V2 is the small-size (35 × 105 × 150 mm, 0.8 kg) DIN-rail controller of the UNO-100 series: an Intel Atom x6413E (1.5 GHz) or x6425RE (1.9 GHz) quad-core, 8 GB DDR4-3200 and an M.2 2242 NVMe/SATA SSD make it suited to in-cabinet data acquisition and pre-processing. Its standout feature is the −40 to 70 °C wide operating range (−40 to 60 °C with the x6425RE); wide-temperature SSD and memory are recommended. It offers two 2.5GbE Intel I226 ports, two isolated RS-232/422/485, 8 isolated digital inputs and 8 digital outputs, four USB and two DisplayPort 1.2 outputs with DP++ HDMI/DVI compatibility; TPM 2.0 is on board.
The full-size mPCIe slot (with nano SIM) takes a 4G/LTE module and the M.2 E key slot a Wi-Fi 6E/Bluetooth module. The UNO-137-ID1EC second-stack kit adds one iDoor slot: PROFINET, EtherCAT, PROFIBUS, EtherNet/IP and CANBus fieldbus cards, isolated serial ports, 2.5GbE TSN or PoE Ethernet, a 16 DI / 8 DO module, MRAM and locked USB — the system runs up to 60 °C with most modules. 10 – 36 VDC input, 21 W typical / 44 W max. consumption, 50 G shock and 2 Grms vibration resistance and IEC 61010-1 compliance suit machine-side and field cabinets; Windows 10/11 LTSC and AdvLinux images can be ordered.
Technical specifications
| UNO-137 V2 | |
|---|---|
| System hardware | |
| Processor | Intel Atom x6413E, quad-core, 1.5 GHz (up to 3.0 GHz) or Intel Atom x6425RE, quad-core, 1.9 GHz |
| Memory | 8 GB DDR4-3200 (up to 32 GB; datasheet says “built-in”, the web table “1 × SO-DIMM”; select the CPU/RAM thermal pad when expanding) |
| Graphics | Intel UHD Graphics |
| Storage | 1 × M.2 M key 2242 SSD (PCIe ×2 / SATA); 1 × M.2 E key 2230 (PCIe ×2); the feature list also mentions mSATA |
| BIOS / watchdog | AMI 256 Mbit SPI; programmable timer with 255 intervals (1 – 255 s) |
| Security | TPM 2.0 |
| LED indicators | Power, RTC battery, LAN (active/status), 1 × programmable |
| I/O | |
| Serial ports | 2 × isolated RS-232/422/485 (terminal block), 50 bps – 115.2 kbps, 2500 VDC isolation |
| LAN | 2 × 10/100/1000/2500 Mbps (Intel I226-IT, IEEE 802.1AS, 802.3az) |
| USB | 2 × USB 3.2 Gen2, 1 × USB 3.2 Gen1, 1 × USB 2.0 |
| Isolated DI/O | 8 × isolated digital inputs (2500 VDC; wet contact 10 – 30 VDC, dry contact) and 8 × digital outputs (5 – 30 VDC, 500 mA sink per channel) |
| Displays | 2 × DisplayPort 1.2 (DP++, HDMI/DVI compatible), up to 4096 × 2160 @ 60 Hz |
| Power connector | 1 × 2-pin terminal block |
| Expansion | |
| Slots | 1 × full-size mPCIe (PCIe/USB 2.0/SATA); 1 × nano SIM (with mPCIe); 1 × M.2 E key 2230 Wi-Fi (PCIe ×2 + USB 2.0) |
| Second-stack extension kit | UNO-137-ID1EC: 1 × iDoor slot (35 × 105 × 150 mm, 0.2 kg); operation up to 60 °C with most iDoor modules (excluding PoE and USB 3.0 modules) |
| iDoor | iDoor modules (with the second-stack extension kit): CANBus / PROFIBUS / PROFINET / EtherCAT / EtherNet/IP fieldbus, isolated RS-232/422/485, Gigabit and PoE Ethernet, 24-ch digital I/O, MRAM, locked USB — full list in the datasheet |
| Physical characteristics | |
| Dimensions (W × D × H) | 35 × 105 × 150 mm |
| Weight (net) | 0.8 kg |
| Enclosure | Aluminium housing |
| Mounting | DIN rail |
| Power and software | |
| Power input | 10 – 36 VDC |
| Power consumption | 21 W typical, 44 W max. (56 W with USB iDoor, 77 W with PoE iDoor) |
| OS support | Windows 10 2021 LTSC, Windows 11, AdvLinux (Ubuntu 20.04) |
| Environment | |
| Operating temperature | x6413E: −40 to 70 °C (with 0.7 m/s airflow); x6425RE: −40 to 60 °C; both −40 to 60 °C without airflow — with wide-temperature SSD/memory |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % RH @ 40 °C (non-condensing) |
| Shock | Operating, IEC 60068-2-27, 50 G, half sine, 11 ms |
| Vibration | Operating, IEC 60068-2-64, 2 Grms, 5 – 500 Hz, 1 hr/axis |
| Ingress protection | IP20 |
| Certification | |
| Certification | CE, FCC, UL 61010-2-201, CCC, BSMI; IEC 61010-1 compliant |
Key features
- Intel Atom x6413E (1.5 GHz) or x6425RE (1.9 GHz) with 8 GB DDR4
- Wide power input (10 – 36 VDC) and wide operating temperature (−40 to 70 °C)
- Port isolation for 8 × DI, 8 × DO and 2 × COM
- DP++ ensures HDMI/DVI compatibility
- Dual storage: M.2 M key 2242 PCIe/NVMe or SATA plus mSATA
- On-board TPM 2.0; modular design with optional iDoor extension
- Ruggedised DIN-rail kit, IEC 61010-1 compliant
Ordering information
| Part number | Description |
|---|---|
| UNO-137-E23BA | Atom x6413E (1.5 GHz), 8 GB DDR4, 2 × LAN, 2 × COM, 4 × USB, 8 × DI/O |
| UNO-137-I23BA | Atom x6425RE (1.9 GHz), 8 GB DDR4, 2 × LAN, 2 × COM, 4 × USB, 8 × DI/O |
| UNO-137-E23BU | Atom x6413E, 8 GB DDR4, US region |
| UNO-137-ID1EC | Second-stack extension kit with 1 × iDoor slot (for E23BA / I23BA) |
The last letter of the part number indicates the region (A: general, U: US). Memory/storage upgrades, wireless modules and the extension kit are configured at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| PSD-A60W24 | DIN-rail power supply 100 – 240 V, 60 W, 24 V |
| 96PSD-A120W24-MN | DIN-rail power supply 100 – 240 V, 120 W, 24 V (NDR) |
| PSD-A120W24 | DIN-rail power supply 100 – 240 V, 120 W, 24 V |
| XARK-ADP-90MDH | Power adapter 100 – 240 V, 90 W, 19 V (2-pin) |
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V (C14) |
| 1702002605 | Power cable, EU plug, 1.8 m (industrial grade) |
| EWM-W165M203E | Wi-Fi 6E + Bluetooth 5.3 module (Intel AX210, −40 to 85 °C); antenna 1750008717-01, cable 1750008799-01 |
| 1990034408N010 / 1990026727N000 | Thermal pad for CPU / RAM |
| UNO-137-VEGA330 | Accessory kit for VEGA-330 |
Is this controller right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s configure the processor class, memory/storage, extension kit and iDoor modules together. FST commissions the UNO controller together with SCADA/IoT software and the sensor/camera layer as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-137 V2 datasheet dated 23 July 2025 and the advantech.com product page.
