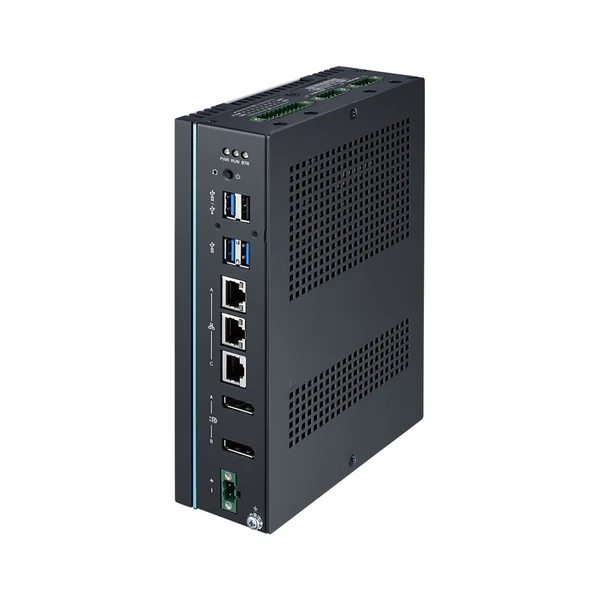

ADVANTECH UNO-148 V2 — Edge PC
Fanless DIN-rail edge controller with a 13th Gen Intel Core i3/i5/i7 — 3 × LAN (2 × 2.5GbE TSN), 4 × isolated COM, 8 DI / 8 DO, 4 × USB, 2 × DP 1.4, 2 × M.2 NVMe (RAID), mPCIe + nano SIM, TPM 2.0, 10 – 36 VDC, −20 to 60 °C; iDoor / PCIe ×4 extension kit. Listed as “New” by Advantech.
Status: In production
Product: Fanless DIN-rail edge controller — 13th Gen Intel Core, 8 GB DDR5, isolated I/O
CPU: Intel Core i3-1315UE / i5-1335UE / i7-1365UE (13th Gen)
Interfaces: 3 × LAN · 4 × COM · 4 × USB · 8 DI / 8 DO · 2 × DP
Storage: 2 × M.2 2280 NVMe (RAID)
Environment: −20 to 60 °C · 10 – 36 VDC · IP20
UNO-148 V2 is the most powerful DIN-rail controller in Advantech’s UNO-100 series: a 13th Gen Intel Core i3-1315UE, i5-1335UE or i7-1365UE, 8 GB DDR5-4800 (two slots, up to 64 GB) and two M.2 2280 NVMe SSD slots (RAID) make it a fanless edge server inside the cabinet. Two of the three Ethernet ports are 2.5GbE Intel I226 with TSN; four isolated RS-232/422/485 ports, 8 isolated digital inputs and 8 digital outputs connect directly to the PLC/sensor layer; two DisplayPort 1.4 outputs drive 4K displays. Full-size mPCIe + nano SIM and M.2 E key slots take 4G/5G and Wi-Fi modules; TPM 2.0 is on board.
Second-stack extension kits grow the system: UNO-148-IS2EA adds one iDoor slot and a 2.5″ SSD/HDD (PROFINET, EtherCAT, PROFIBUS, CANBus, extra serial/Ethernet/digital-I/O modules), while UNO-148-P11EB opens a full PCIe ×4 card slot; with the UNO-MXM-CB01 carrier stack an NVIDIA Quadro A1000/2000A MXM GPU can be added for image processing and AI inference. 10 – 36 VDC input, 41 W typical / 63 W max. consumption, −20 to 60 °C operating range, 50 G shock and 2 Grms vibration resistance and IEC 61010-2 compliance are intended for in-cabinet industrial use. Windows 10/11 LTSC and AdvLinux (Ubuntu 22.04) images can be ordered; memory-less -DxNBA versions are offered for your own memory configuration.
Technical specifications
| UNO-148 V2 | |
|---|---|
| System hardware | |
| Processor | 13th Gen Intel Core i3-1315UE (6 cores, 1.2 GHz, up to 4.5 GHz) / i5-1335UE (10 cores, 1.3 GHz, up to 4.5 GHz) / i7-1365UE (10 cores, 1.7 GHz, up to 4.9 GHz) |
| Memory | 8 GB DDR5-4800 SO-DIMM (2 slots, up to 64 GB); memory-less -DxNBA version available |
| Graphics | Intel UHD (i3/i5), Intel Iris Xe (i7) |
| Storage | 2 × M.2 M key 2280 NVMe (PCIe ×4), RAID supported |
| BIOS / watchdog | AMI UEFI 256 Mbit; programmable timer with 255 intervals (1 – 255 s) |
| Security | TPM 2.0 |
| LED indicators | Power, RTC battery, LAN (active/status), 1 × programmable |
| I/O | |
| Serial ports | 4 × isolated RS-232/422/485 (terminal block), 50 – 115.2 kbps, 2500 VDC isolation |
| LAN | 2 × 2.5GbE (Intel I226-IT, TSN IEEE 802.1Qav/Qbv) + 1 × GbE (Intel I219-LM), IEEE 802.3az/802.1AS |
| USB | 2 × USB 3.2 Gen2, 1 × USB 3.2 Gen1, 1 × USB 2.0 |
| Isolated DI/O | 8 × isolated digital inputs (2500 VDC; wet contact 10 – 30 VDC, dry contact) and 8 × digital outputs (5 – 30 VDC, 500 mA sink per channel) |
| Displays | 2 × DisplayPort 1.4, up to 3840 × 2160 (4K) @ 60 Hz |
| Power connector | 1 × 2-pin terminal block |
| Expansion | |
| Slots | 1 × full-size mPCIe (PCIe/USB 2.0); 1 × nano SIM (datasheet; the web table says micro SIM); 1 × M.2 E key 2230 Wi-Fi (PCIe + USB) |
| Second-stack extension kit | UNO-148-IS2EA: 1 × iDoor + 1 × 2.5″ SSD/HDD (SATA); UNO-148-P11EB: 1 × PCIe ×4 (the kit occupies the mPCIe PCIe signal and the M.2 B key SATA signal; 24 VDC ± 20 % recommended) |
| iDoor | iDoor modules (with the second-stack extension kit): CANBus / PROFIBUS / PROFINET / EtherCAT / EtherNet/IP fieldbus, isolated RS-232/422/485, Gigabit and PoE Ethernet, 24-ch digital I/O, MRAM, locked USB — full list in the datasheet |
| GPU option | UNO-MXM-CB01 MXM carrier stack + NVIDIA Quadro A1000 (4 GB) / 2000A (8 GB) MXM module (ordered separately) |
| Physical characteristics | |
| Dimensions (W × D × H) | 53 × 140 × 200 mm |
| Weight (net) | 1.8 kg |
| Enclosure | Aluminium housing |
| Mounting | DIN rail |
| Power and software | |
| Power input | 10 – 36 VDC |
| Power consumption | 41 W typical, 63 W max. (72 W with IS2EA kit, 87 W with P11EB) |
| OS support | Windows 10 2021 LTSC, Windows 11, AdvLinux (Ubuntu 22.04) |
| Environment | |
| Operating temperature | −20 to 60 °C (15 W TDP, with 0.7 m/s airflow) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % RH @ 40 °C (non-condensing) |
| Shock | Operating, IEC 60068-2-27, 50 G, half sine, 11 ms |
| Vibration | Operating, IEC 60068-2-64, 2 Grms (SSD) / 0.3 Grms (HDD), 5 – 500 Hz |
| Ingress protection | IP20 |
| Certification | |
| Certification | CE, FCC, UL 61010-2-201, CCC, BSMI (datasheet); the web table also lists CB. IEC 61010-2 compliant |
Key features
- 13th Gen Intel Core i3/i5/i7 processor with 8 GB DDR5 (2 slots, up to 64 GB)
- Port isolation for 8 × DI, 8 × DO and 4 × COM
- 2 × M.2 M key 2280 NVMe SSD (RAID) and M.2 E key 2230 Wi-Fi module
- Time-Sensitive Networking (TSN) on the two 2.5GbE ports
- Modular design with optional iDoor / PCIe ×4 extension kit; MXM GPU carrier option
- On-board TPM 2.0, IEC 61010-2 compliant, ruggedised DIN-rail kit
- Memory-less SKU for easy assembly
Ordering information
| Part number | Description |
|---|---|
| UNO-148-D33BA | i3-1315UE, 8 GB DDR5, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O (web table) |
| UNO-148-D53BA | i5-1335UE, 8 GB DDR5, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O (web table) |
| UNO-148-D73BA | i7-1365UE, 8 GB DDR5, 3 × LAN, 4 × COM, 4 × USB, 8 × DI/O (web table) |
| UNO-148-D3NBA / D5NBA / D7NBA | i3-1315UE / i5-1335UE / i7-1365UE, no memory installed (datasheet) |
| UNO-148-D73BU | i7-1365UE, 8 GB DDR5, US region |
| UNO-148-IS2EA | Extension kit: 1 × iDoor + 1 × 2.5″ SSD/HDD slot |
| UNO-148-P11EB | Extension kit: 1 × PCIe ×4 slot |
The last letter of the part number indicates the region (A: general, U: US). Memory/storage upgrades, wireless modules and the extension kit are configured at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSD-A120W24-MN | DIN-rail power supply 100 – 240 V, 120 W, 24 V (NDR) |
| PSD-A120W24 | DIN-rail power supply 100 – 240 V, 120 W, 24 V |
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V (C14) |
| 1702002605 | Power cable, EU plug, 1.8 m (industrial grade) |
| 98R1U148201 | UNO-148 V2 fan kit |
| 98R1U148200 / 202 / 203 / 204 | Thermal kits: add-on NVMe / 2nd RAM (≤ 16 GB) / 2nd RAM (≥ 32 GB) / Hailo module |
| UNO-MXM-CB01 | MXM carrier stack (GPU module separate: SKY-MXM-A1000-4SLA / SKY-MXM-2000A-8SLA + 98R1X200000) |
Is this controller right for your project?
Share the data to be collected (PLC, serial devices, sensors, cameras), your network and fieldbus needs, and the space and temperature conditions in the cabinet; let’s configure the processor class, memory/storage, extension kit and iDoor modules together. FST commissions the UNO controller together with SCADA/IoT software and the sensor/camera layer as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s UNO-148 V2 datasheet dated 17 August 2026 and the advantech.com product page.
