Emergency Stop & Enabling Switches

An emergency stop button or rope pull switch lets the operator stop the machine instantly in a hazardous situation; an enabling switch runs the machine only while it is held, during maintenance or teaching. This card covers Omron’s A22E/A22NE-P and A165E emergency stop switches with various head types and the three-position A4EG enabling grip switch; Telemecanique’s EN/ISO 13850-compliant Preventa XY2 series emergency-stop rope pull switches (XY2CH 30 m, XY2CE 70 m, and the double-sided XY2CED for long conveyors); and Panasonic’s compact, lightweight SG-C1 enabling grip switch. Note: Panasonic’s SG-E1 emergency stop switch is discontinued; Panasonic appears on this card with its enabling switch only. Contact count, reset method and rope length are chosen to match the application.

Panasonic SG-C1 — enable grip switch models (6)

Panasonic’s SG-C1 enable grip switch has a 3-position (off–enable–off) 2-contact switch and a 1NC push-monitor contact; six configurations with optional 2NC emergency-stop button (-E), green indicator (-EG), two momentary pushbuttons (-MM/-EMM) or pushbutton + key selector (-EMK). Yellow silicone boot, solder terminals. Panasonic’s SG-E1 emergency-stop button is discontinued; only the enable grip appears on this card. All models below are verified against the manufacturer’s (industry.panasonic.com) current catalogue.

Panasonic

SG-C1-21

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · yellow silicone boot · solder terminal · IP66/IP67

In production

Panasonic

SG-C1-21-E

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · emergency stop 2NC · yellow silicone boot · solder terminal

In production

Panasonic

SG-C1-21-EG

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · emergency stop 2NC · green indicator · yellow silicone boot · solder terminal

In production

Panasonic

SG-C1-21-MM

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · momentary pushbutton ×2 (2c) · yellow silicone boot · solder terminal

In production

Panasonic

SG-C1-21-EMM

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · emergency stop 2NC · momentary pushbutton ×2 (2c) · yellow silicone boot · solder terminal · IP65

In production

Panasonic

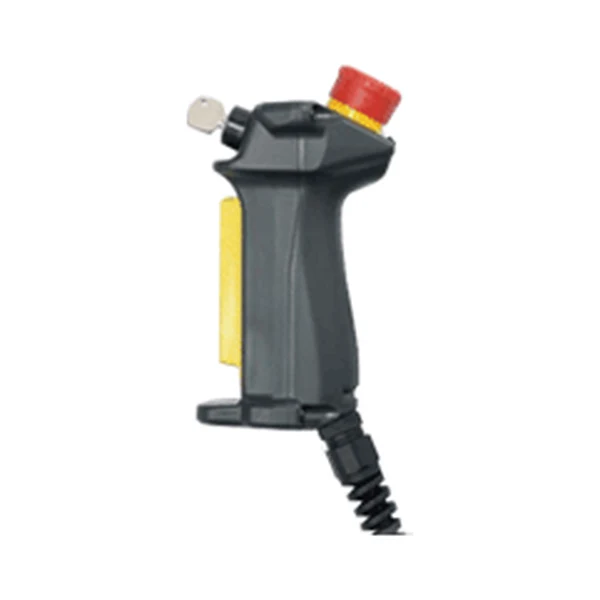

SG-C1-21-EMK

SG-C1 · 3-position enable grip switch · 2 contacts · push monitor 1NC · emergency stop 2NC · momentary pushbutton + key selector (2c) · yellow silicone boot · solder terminal · IP65

In production

Telemecanique Preventa XY2 — emergency-stop rope pull switches (4)

XY2CH (15 m rope) and XY2CE (50 m rope, RH/LH side) latching emergency-stop rope pull switches; EN/ISO 13850. Every model is verified from the manufacturer’s current catalogue.

Telemecanique

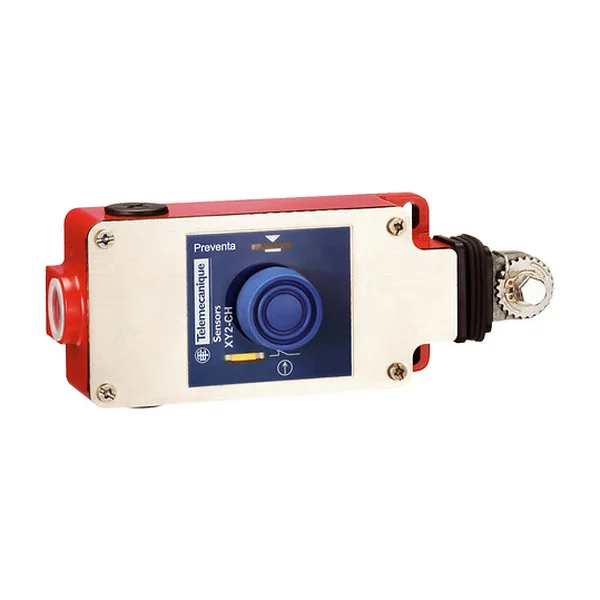

XY2CH13250

XY2CH · rope pull E-stop switch · 1NC+1NO · booted pushbutton · rope up to 30 m

In production

Telemecanique

XY2CH13270

XY2CH · rope pull E-stop switch · 2NC · booted pushbutton · rope up to 30 m

In production

Telemecanique

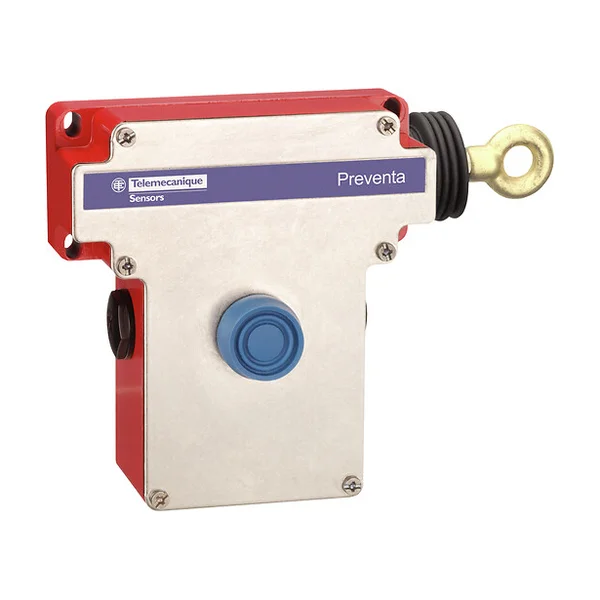

XY2CE1A250

XY2CE · rope pull E-stop switch · RH side · 1NC+1NO · booted pushbutton · rope up to 70 m

In production

Telemecanique

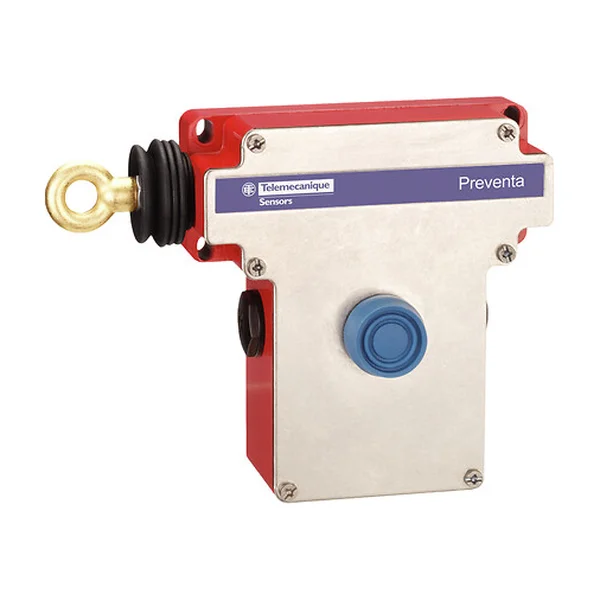

XY2CE2A250

XY2CE · rope pull E-stop switch · LH side · 1NC+1NO · booted pushbutton · rope up to 70 m

In production

Omron A22E / A165E / A4EG — emergency stop and enabling switches (6)

The image shows the series; models are taken from the manufacturer’s (industrial.omron.eu) current product table.

Omron

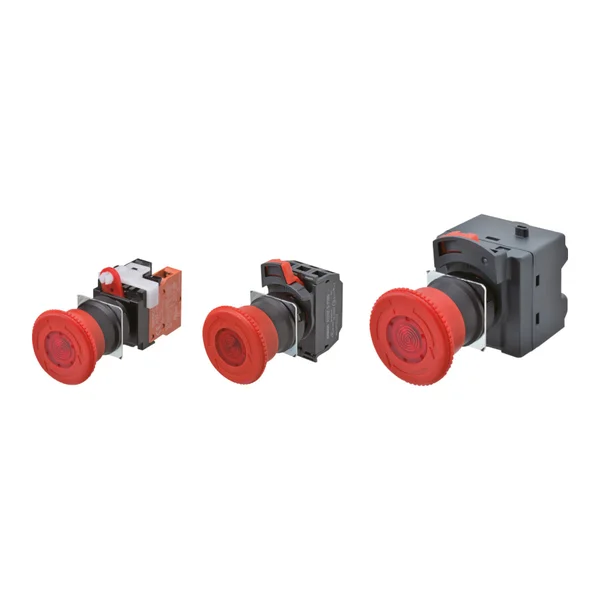

A22E-M-01

A22E · Emergency stop switch · screw terminal · non-illuminated · 40 mm dia · push-lock/turn-reset · 1NC

In production

Omron

A22E-M-02

A22E · Emergency stop switch · screw terminal · non-illuminated · 40 mm dia · push-lock/turn-reset · 2NC

In production

Omron

A22E-M-02B

A22E · Emergency stop switch · 24 VAC / VDC · 40 mm dia. · push-lock / turn-reset · DPST-NC · within a control box

In production

Omron

A22E-M-11

A22E · Emergency stop switch · screw terminal · non-illuminated · 40 mm dia · push-lock/turn-reset · 1NC + 1NO

In production

Omron

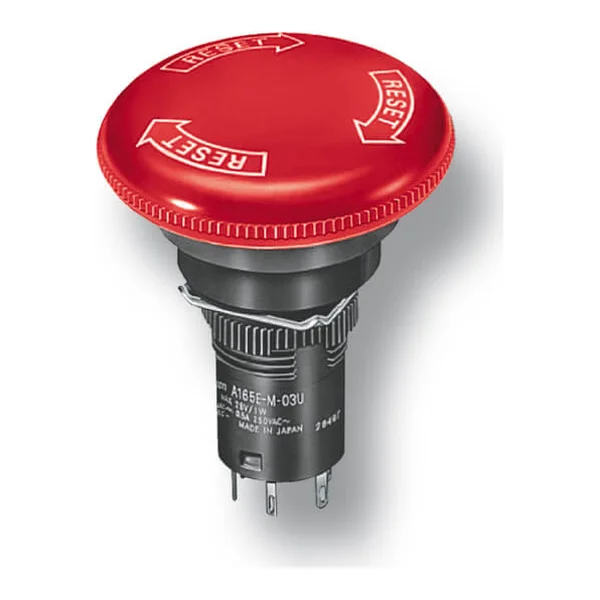

A165E

Emergency stop switches with various head types; wide range of accessories and contact combinations.

In production

Omron

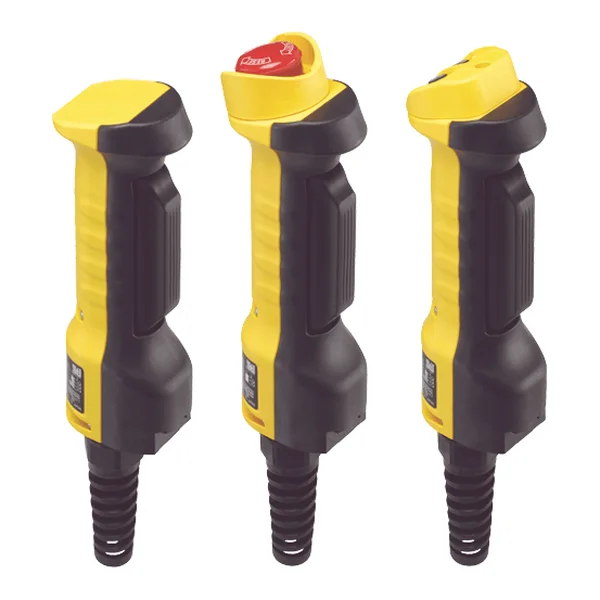

A4EG

Enabling grip switch with distinct feel for three positions; models with emergency stop switch and momentary operation switch.

In production
