Non-Contact Safety Switches
Coded-magnetic and RFID safety switches that work with no mechanical contact between the door actuator and the switch.
A non-contact safety switch works without mechanical contact between the actuator on the door and the switch (coded-magnetic or RFID); there is no wear, alignment tolerance is wide and it suits washdown and hygienic areas. This card covers Panasonic’s SG-P series non-contact door switch with a highly visible LED; Omron’s D40A with electronic detection, the D40Z with integrated monitoring and self-diagnostics, the high-coded D41D and the D40ML combining RFID with magnetic locking; and Telemecanique’s coded-magnetic XCSDMC/XCSDMP/XCSDMR switches, and the SIL 3 / PLe / Category 4, IP69K Preventa XCSR RFID safety switch. Coding level (tamper protection), locking requirement and ambient conditions are chosen to match the application.
Panasonic SG-P — non-contact safety door switch models (4)
Panasonic’s SG-P series is an RFID-based non-contact safety door switch (PLe, SIL3, ISO 14119): low-coded (SG-P10xx) and high-coded (SG-P20xx) versions, compact (x010) and high-visibility LED (x020) housings. The main unit has -M-P (PNP) or -M-N (NPN) OSSD outputs, -S sub units connect in series; maintenance actuators SG-PK-M1/M2. All models below are verified against the manufacturer’s (industry.panasonic.com) current catalogue.

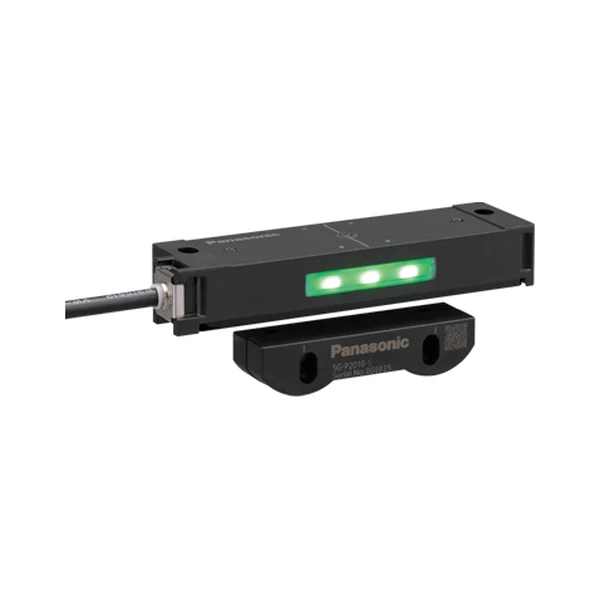

SG-P1010
SG-P · non-contact safety door switch (125 kHz transponder) · low-coded · compact type · PLe · SIL3 · ISO 14119 · OSSD ×2 · -M-P PNP / -M-N NPN · 5 m cable · -S sub unit (3 m) · series-connectable
In production
SG-P1020
SG-P · non-contact safety door switch (125 kHz transponder) · low-coded · visible-LED type · PLe · SIL3 · ISO 14119 · OSSD ×2 · -M-P PNP / -M-N NPN · 5 m cable · -S sub unit (3 m) · series-connectable
In production
SG-P2010
SG-P · non-contact safety door switch (125 kHz transponder) · high-coded · compact type · PLe · SIL3 · ISO 14119 · OSSD ×2 · -M-P PNP / -M-N NPN · 5 m cable · -S sub unit (3 m) · series-connectable
In production

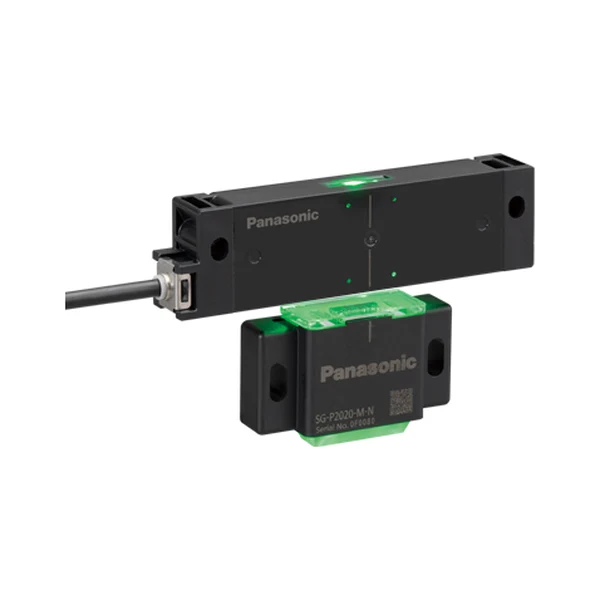

SG-P2020
SG-P · non-contact safety door switch (125 kHz transponder) · high-coded · visible-LED type · PLe · SIL3 · ISO 14119 · OSSD ×2 · -M-P PNP / -M-N NPN · 5 m cable · -S sub unit (3 m) · series-connectable
In productionTelemecanique Preventa XCS — non-contact (coded magnetic and RFID) safety switches (8)
Coded-magnetic XCSDMC/XCSDMP/XCSDMR switches and the standalone and daisy-chain models of the SIL 3 / PLe / Category 4, IP69K Preventa XCSRC RFID switch. Every model is verified from the manufacturer’s current catalogue.

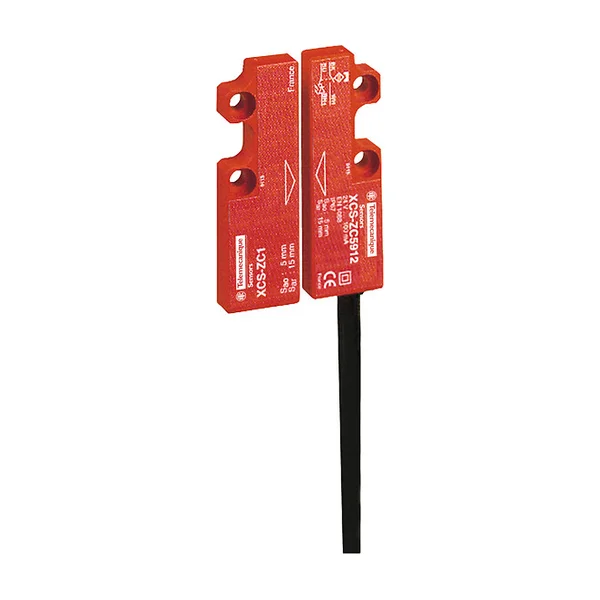

XCSDMC5902
XCSDMC · coded magnetic safety switch · 1NC+1NO · staggered
In production
XCSDMC7902
XCSDMC · coded magnetic safety switch · 2NC · staggered
In production

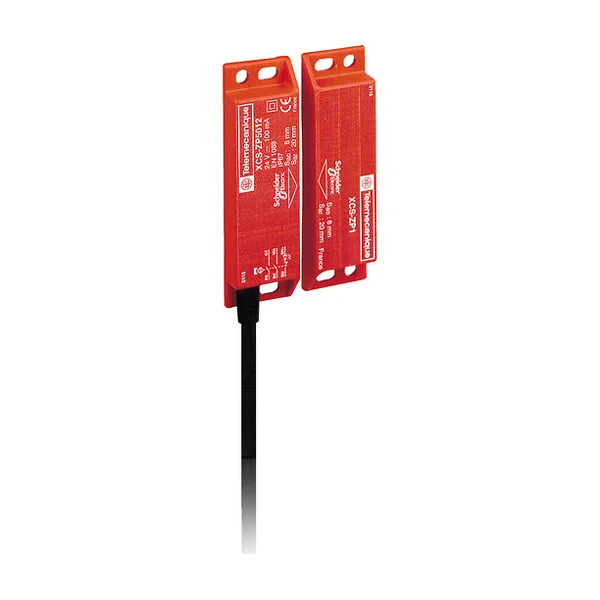

XCSDMP5902
XCSDMP · coded magnetic safety switch · 1NC+1NO · staggered
In production

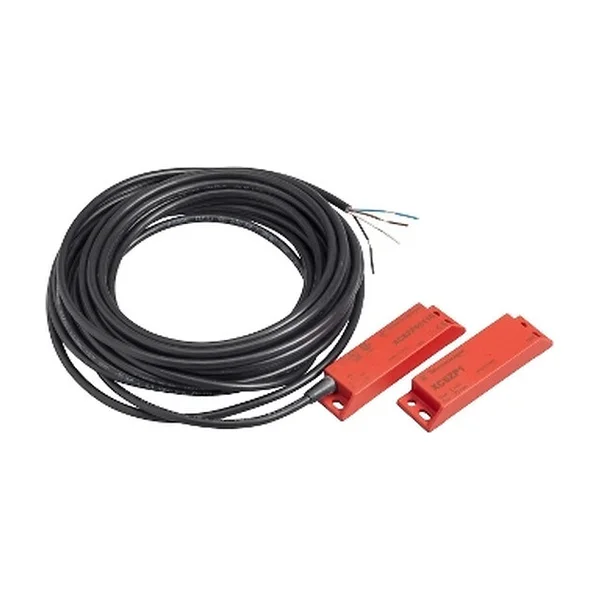

XCSDMP50110
XCSDMP · coded magnetic safety switch · 1NC+2NO · 1NO staggered · 10 m cable
In production

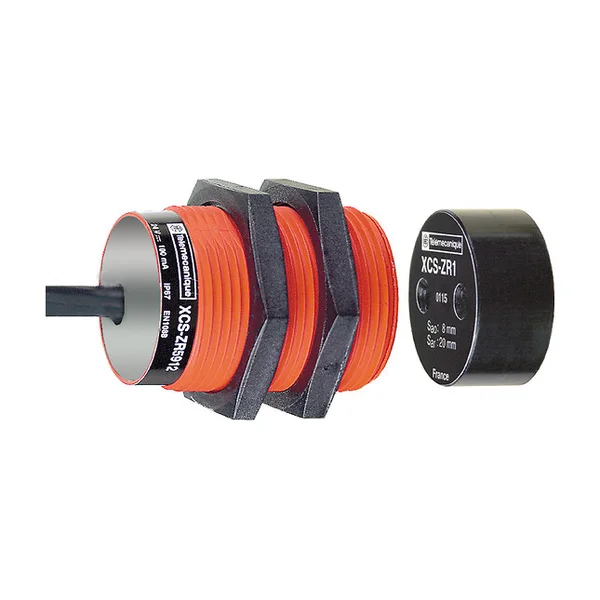

XCSDMR5902
XCSDMR · coded magnetic safety switch · 1NC+1NO · staggered
In production

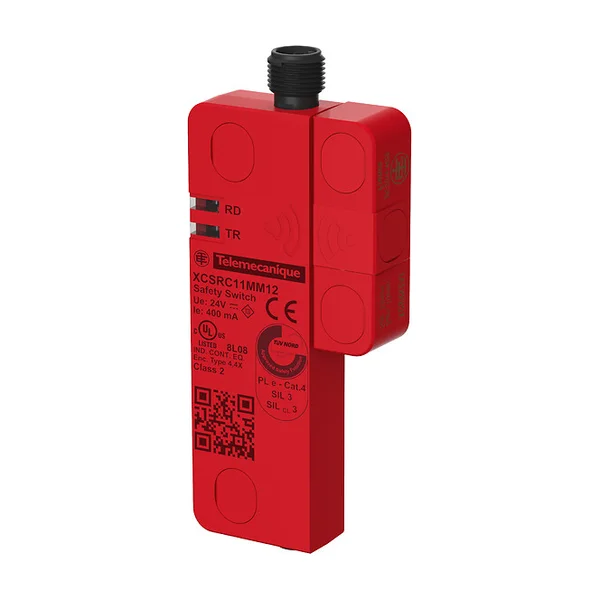

XCSRC11MM12
XCSRC · RFID safety switch · contactless · standalone · EDM + manual start · unique pairing · M12
In production
XCSRC31AM12
XCSRC · RFID safety switch · contactless · standalone · EDM + auto start · multiple pairing · M12
In production

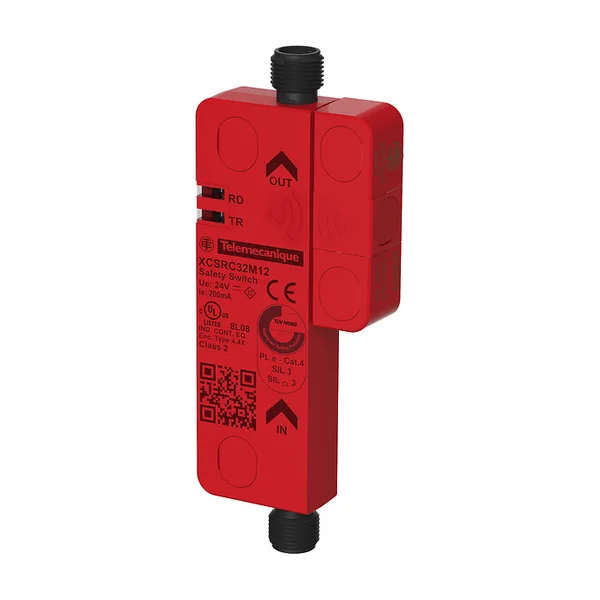

XCSRC32M12
XCSRC · RFID safety switch · contactless · daisy-chain model · multiple pairing · M12
In productionOmron D40A / D40Z / D41D / D40ML — non-contact safety switches (7)
The image shows the series; models are taken from the manufacturer’s (industrial.omron.eu) current product table.

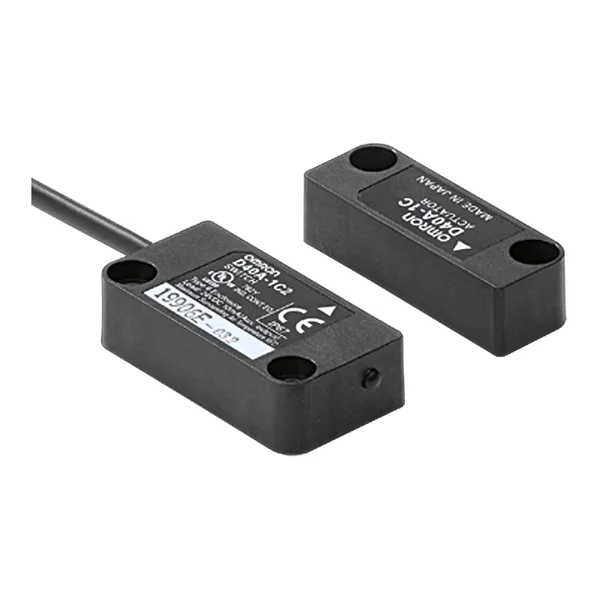

D40A-1C015-F
D40A · Non-contact door switches · D40A · 1 aux output · Pigtail with M12 connector 5-pole
In productionD40A-1C2
D40A · Non-contact door switches · D40A · 1 aux output · 2m cable
In production

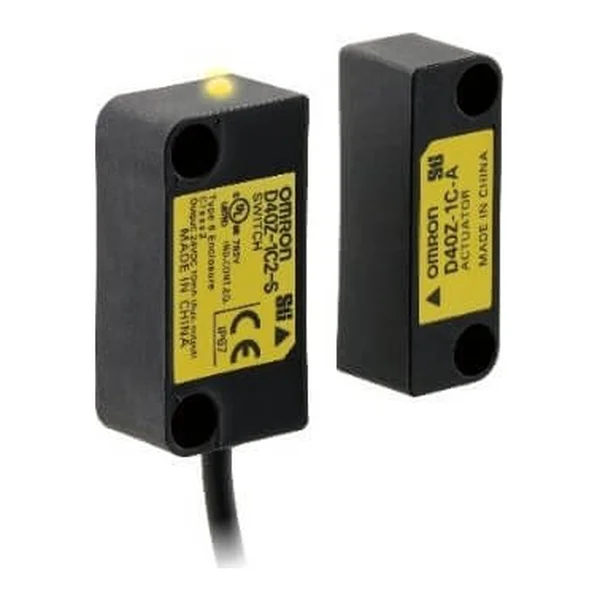

D40Z-1C5
D40Z · Non-contact door switch · compact sensor · LED indicator · 1NO aux · requires G9SX-NS or G9SP controller for Category 4/PLe · 5 m · discontinued; successors D41D (PLe) or D40A (PLd)
Discontinued

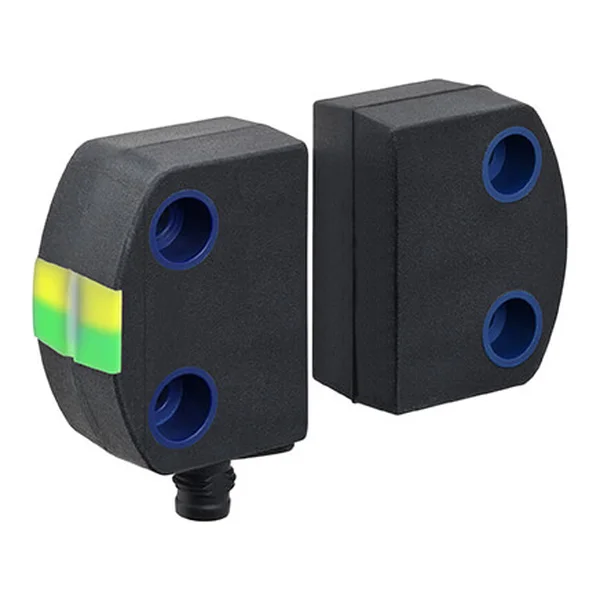

D41D-1CD-N1
D41D · Non-contact Interlock Switch · RFID High-coded · PNP · Test Pulse · Connector plug M8
In production

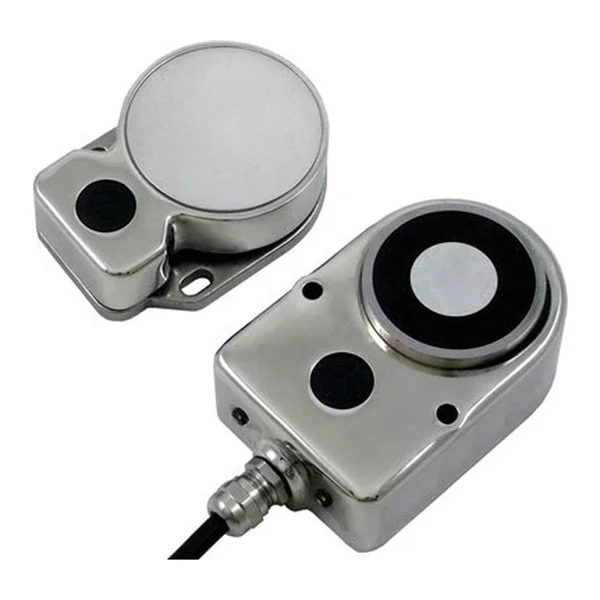

D40ML-M1-U-5M
D40ML · RFID Magnetic Locking Safety Switch · Die-cast Metal · 1500N · Unique Actuator Code · 5m Cable
In productionD40ML-M2-B-5M
D40ML · RFID Magnetic Locking Safety Switch · Die-cast Metal · 900N · Basic Actuator Code · 5m Cable
In productionD40ML-M2-U-M12
D40ML · RFID Magnetic Locking Safety Switch · Die-cast Metal · 900N · Unique Actuator Code · Pigtail w/M12 Connector
