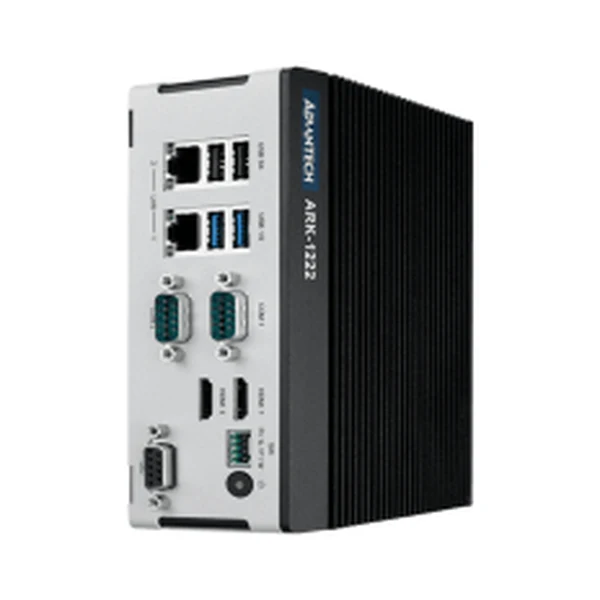

Advantech ARK-1000 Series — Box PC
Ultra-slim fanless box PC series with Intel Atom / N-series / Core i / Core Ultra processors, palm-size and DIN-rail housings and front-side I/O — 2.5GbE, serial ports, CANBus, M.2 and iDoor expansion.
Manufacturer: Advantech
Housing: Palm-size (133 × 46.4 × 94.2 mm) · DIN-rail (60 mm wide)
Processor range: Intel Atom x7211E … Core Ultra 7 155U
Number of models: 6 (current models with a page on this site)
ARK-1000 is Advantech’s ultra-slim fanless box PC series: display-less, aluminium-housed control and gateway computers mounted on a DIN rail or a wall inside the cabinet. The series scales in one design language from a light palm-size computer that aggregates PLCs and field devices over serial/Ethernet/CAN to a DIN-rail system running edge-AI inference on a Core Ultra processor with NPU.
Two housings, one series
The palm-size models (ARK-1125C / ARK-1125H) measure 133 × 46.4 × 94.2 mm and weigh 0.7 kg, fitting inside machines or small cabinets and powered through a 12 V lockable DC jack. The DIN-rail models (ARK-1221L, ARK-1222, ARK-1250L, ARK-1251) are 60 mm wide, gather all connectors on the front and run directly from a 24 V cabinet supply thanks to a 12 – 28 VDC (ARK-1250L: 12 – 24 VDC) wide input. All models are fanless; operating temperature extends from −20 °C or −40 °C, depending on the processor, up to 60 °C (ARK-1222 x7433RE: 70 °C).
Processor options
Entry level covers Intel Atom x7211E and N200 (palm-size), Elkhart Lake Atom x6413E / Celeron (ARK-1221L) and Alder Lake-N / Amston Lake N97, x7433RE and Core i3-N305 (ARK-1222). For more compute, ARK-1250L offers 11th Gen Core i5/i3 with Iris Xe graphics and ARK-1251 offers Core Ultra 5/7 with a 21 – 22 TOPS NPU. Memory ranges from a single slot (16 GB) in the palm-size models to 16 GB built-in up to 96 GB in the DIN-rail models.
Connectivity and expansion
The common denominator of the series is rich industrial I/O: 2.5GbE Intel Ethernet, RS-232/422/485 serial ports (2 – 4), 8-bit programmable DIO, CANBus on most models (built-in or optional) and 4K HDMI/DP display outputs. M.2 E/B/M key slots take storage, Wi-Fi and 5G/LTE modules inside the housing; the iDoor slot on ARK-1222, ARK-1250L and ARK-1251 adds isolated CANBus, serial ports, digital I/O or extra Gigabit Ethernet via MOS modules. TPM 2.0 (on board or as a module), a watchdog timer and Advantech DeviceOn remote management are shared across the series.
Where it is used
As a machine and line controller aggregating the PLC/drive network, driving panel-mounted HMI and monitoring screens, collecting MES/cloud data over OPC UA/MQTT, bringing serial devices onto Ethernet (protocol gateway), CANBus communication in vehicles and mobile machines, and — with ARK-1250L/ARK-1251 — image processing and edge-AI inference. FST commissions the box PC together with machine-vision camera, lens and lighting selection as one system.
Models in the series
The six current ARK-1000 models with a page on this site are listed below; click a model name in a card or in the table for specifications, ordering and accessory information. Contact us for the previous-generation models (ARK-11, ARK-1124, ARK-1220) and the pre-announced ARK-1252.

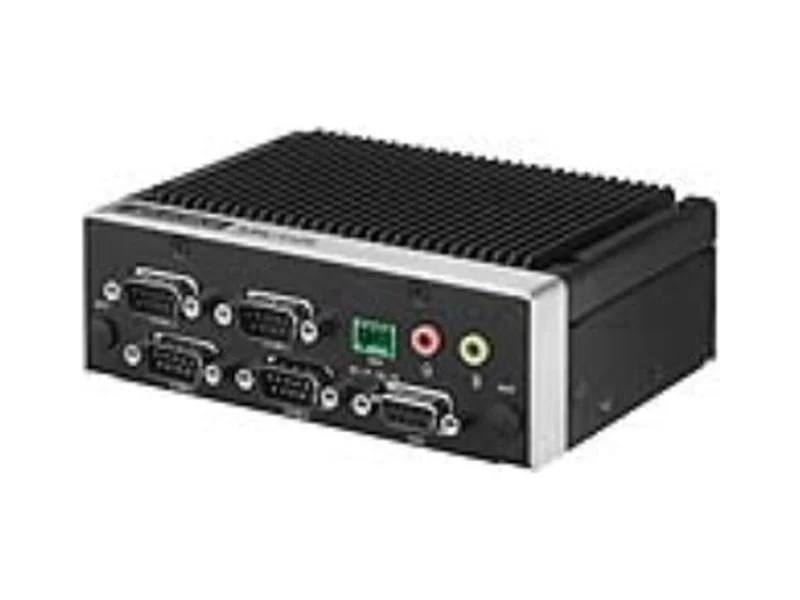

ARK-1125C
Intel Atom x7211E · 4 × COM · 1 × 2.5GbE · 3 × M.2 · IEC 62443-4-2

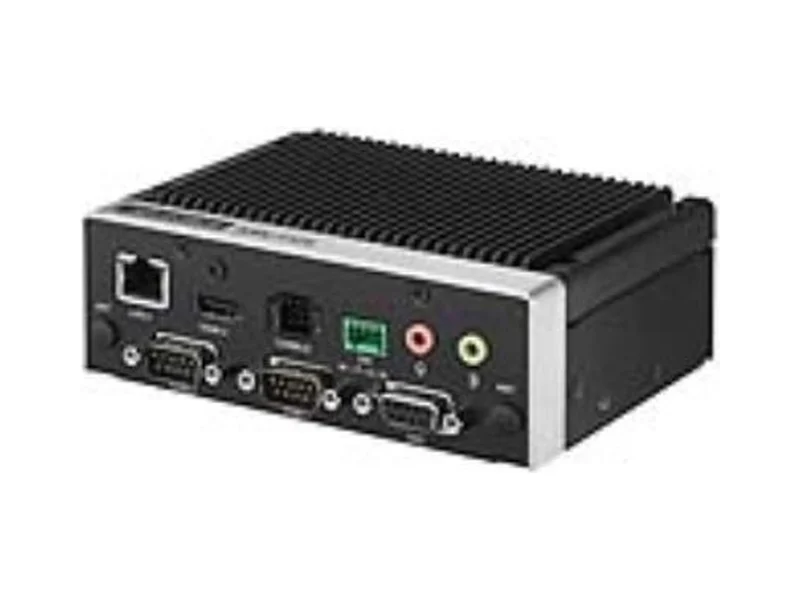

ARK-1125H
Intel N200 · 2 × HDMI 4K · 2 × 2.5GbE · 2 × COM · 2 × CANBus

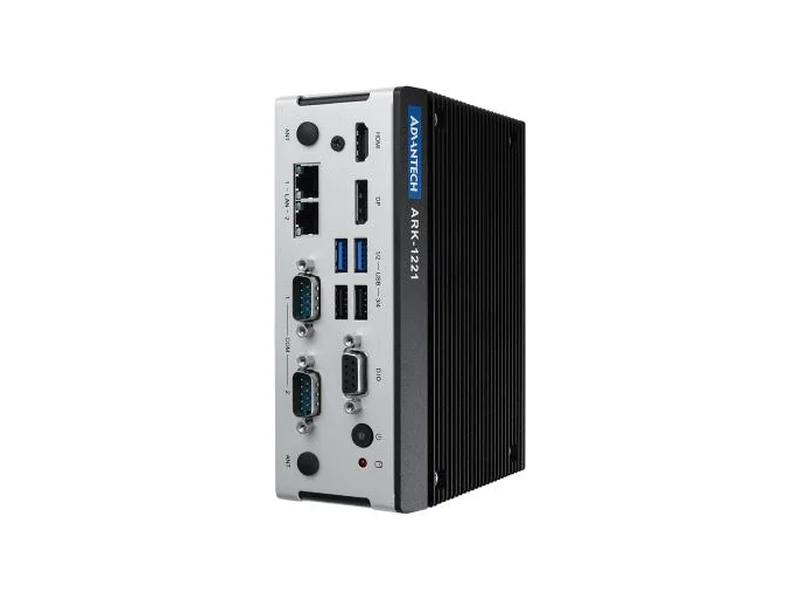

ARK-1221L
Atom x6413E / Celeron J6412 / N6210 · 2 × 2.5GbE · HDMI + DP · 2.5″ SATA

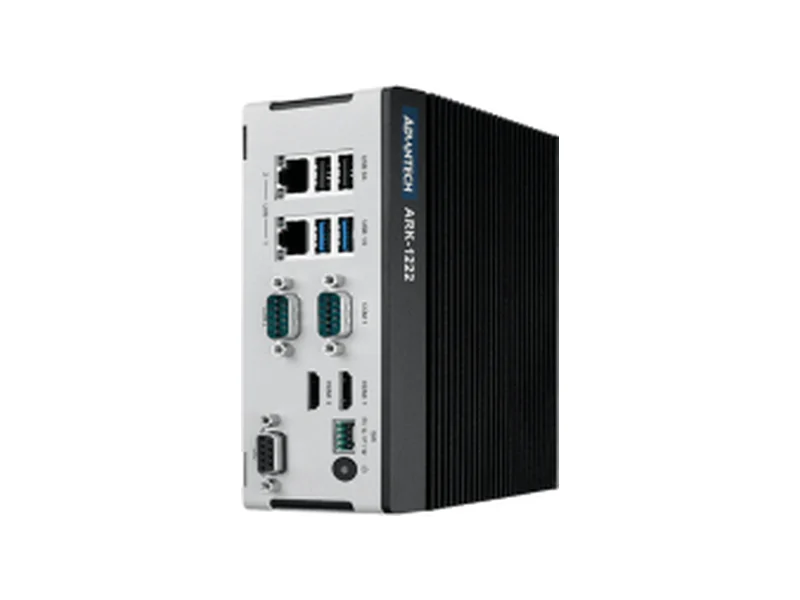

ARK-1222
N97 / Atom x7433RE / i3-N305 · 16 GB DDR5 · 2 × HDMI 4K · 4 × COM · iDoor

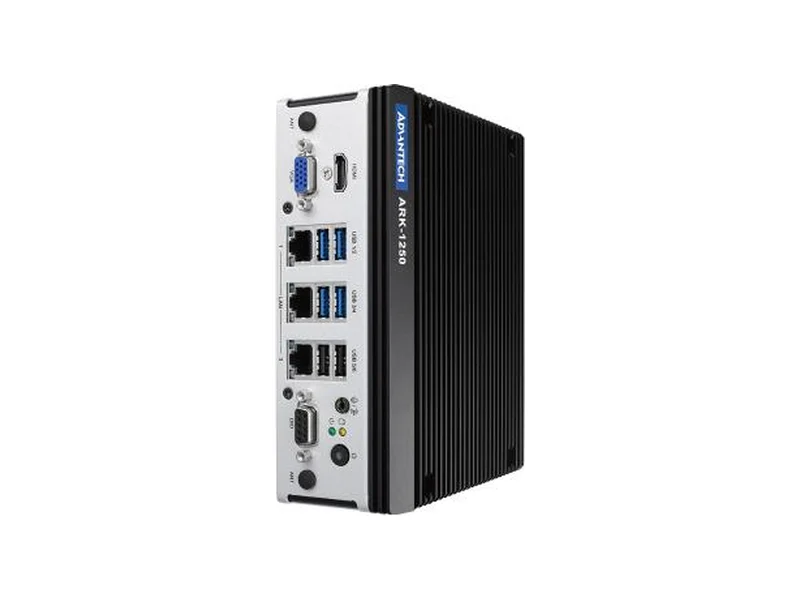

ARK-1250L
11th Gen Core i5 / i3 · Iris Xe · 3 – 4 × GbE · 4 × COM · 64 GB DDR4

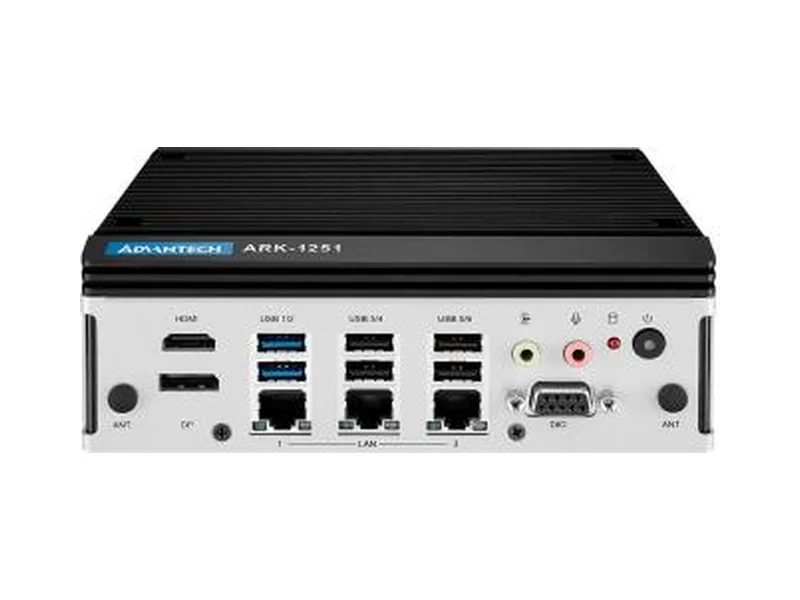

ARK-1251
Core Ultra 5 / 7 · 21 – 22 TOPS NPU · 96 GB DDR5 · 3 × GbE · 4 × COM · 3 × M.2
| Model | Processor | Memory | Ethernet | COM | Display | Operating temperature | Dimensions |
|---|---|---|---|---|---|---|---|
| ARK-1125C | Intel Atom x7211E | DDR5, 16 GB | 1 × 2.5GbE | 4 | 1 × HDMI | −30 – 60 °C | 133 × 46,4 × 94,2 mm |
| ARK-1125H | Intel N200 (4C) | DDR5, 16 GB | 2 × 2.5GbE | 2 (+2 CAN) | 2 × HDMI | −30 – 60 °C | 133 × 46,4 × 94,2 mm |
| ARK-1221L | Atom x6413E / Celeron J6412 / N6210 | DDR4, 32 GB | 2 × 2.5GbE | 2 | HDMI + DP | −40 – 60 °C / −20 – 60 °C | 60 × 158 × 114 mm |
| ARK-1222 | N97 / Atom x7433RE / Core i3-N305 | DDR5, 16 GB built-in | 2 × 2.5GbE | 4 | 2 × HDMI | −40 – 70 °C / −20 – 60 °C | 60 × 158 × 114 mm |
| ARK-1250L | Core i5-1145G7E / Core i3-1115G4E | DDR4, 64 GB | 3 × GbE (S5A2: 4) | 4 | HDMI + VGA / 2 × HDMI | −40 – 60 °C | 60 × 173 × 141 mm |
| ARK-1251 | Core Ultra 7 155U / Core Ultra 5 125U | DDR5, 96 GB | 2 × 2.5GbE + 1 × GbE | 4 | HDMI + DP | −20 – 60 °C | 60 × 173 × 141 mm |
Is ARK-1000 right for your project?
Share the devices to be connected, display and expansion needs, ambient temperature and cabinet layout; let’s configure processor class, memory, storage and modules together.
All product specifications are subject to change without notice; data compiled from Advantech’s model datasheets (ARK-1125H 25 December 2024, ARK-1221L 20 June 2025, ARK-1222 28 July 2025, ARK-1251 19 December 2025, ARK-1250L 24 July 2026) and the advantech.com product pages; ARK-1125C has a web specification table only.
