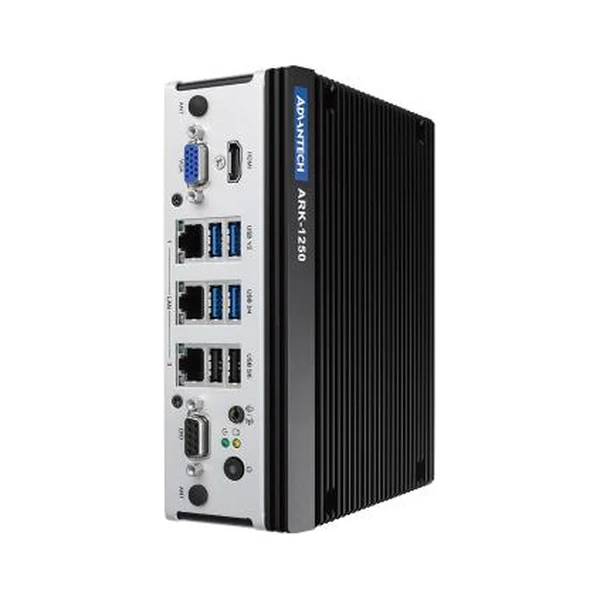

ADVANTECH ARK-1250L — Box PC
DIN-rail fanless box PC with an Intel 11th Gen Core i5-1145G7E (quad-core) or Core i3-1115G4E (dual-core) processor and Iris Xe graphics — 3 × GbE (S5A2: 4), 4 × RS-232/422/485, 6 × USB, HDMI + VGA or 2 × HDMI, iDoor, 12 – 24 VDC, −40 to 60 °C.
Status: In production
Product: DIN-rail fanless box PC — Intel 11th Gen Core i5/i3, 3 – 4 × GbE, 4 × COM
CPU: Core i5-1145G7E (4C) / Core i3-1115G4E (2C), 11th Gen
Interfaces: 3 – 4 × GbE · 4 × COM · 6 × USB · HDMI + VGA / 2 × HDMI · 8 × DIO · iDoor
Dimensions: 60 × 173 × 141 mm · 1,5 kg
Temperature: −40 to 60 °C (with extended-temperature peripherals)
ARK-1250L is the model of the ARK-1000 series that brings Core i-class processing to the DIN-rail housing: an Intel 11th Gen (Tiger Lake) quad-core Core i5-1145G7E or dual-core Core i3-1115G4E, Iris Xe graphics and dual-slot DDR4-3200 memory (up to 64 GB). Three Intel GbE ports (one 1GbE, two 2.5GbE; a fourth 2.5GbE on the S5A2 variant), four RS-232/422/485 serial ports, three USB 3.2 and three USB 2.0 make it a control computer that aggregates all serial and Ethernet field devices while also carrying an image-processing or edge-analytics workload. Display output is 4K HDMI + VGA on the A1 variants and dual HDMI on the S5A2.
Storage options are a 2.5″ SATA III bay, a full-size mSATA slot shared with mPCIe and an M.2 2280 B key (PCIe) with nano-SIM holder; an M.2 2230 E key serves wireless. The iDoor slot adds isolated CANBus, serial ports, digital I/O or Gigabit Ethernet via MOS modules (requires the AMO-I032 expansion kit; mPCIe and M.2 E key are mechanically unavailable while a MOS module is fitted). A thermal kit for 5G or Hailo AI B key modules (AMK-A045), a TPM 2.0 module (AMO-I029) and a CANBus cable replacing GPIO are optional. 12 – 24 VDC input; the 90 W adapter is included; typical consumption 18 – 19.8 W. Windows 10/11 IoT Enterprise LTSC and Ubuntu 20.04/22.04 are supported, and WISE-DeviceOn provides edge-AI OTA and container management.
Technical specifications
| ARK-1250L | |
|---|---|
| Processor | |
| CPU | Intel Core i5-1145G7E (S5A1/S5A1U/S5A2/S5A2U) · Intel Core i3-1115G4E (U2A1/U2A1U) |
| Core number | 4 (i5-1145G7E) · 2 (i3-1115G4E) |
| Frequency | i5: 1.5 GHz, turbo 4.1 GHz · i3: 2.2 GHz, turbo 3.9 GHz |
| BIOS | AMI EFI 256 Mbit |
| Memory | |
| Technology | Dual-channel DDR4 3200 MHz |
| Max. capacity | 64 GB (2 slots) |
| Socket | 2 × 260-pin SO-DIMM |
| ECC support | No |
| Graphics and display | |
| Graphics chipset | Intel Iris Xe Graphics |
| HDMI | Up to 4096 × 2160 @ 60 Hz (S5A2: 2 × HDMI) |
| VGA | Up to 1920 × 1200 @ 60 Hz (A1 variants) |
| Dual display | HDMI + VGA, or HDMI + HDMI (S5A2) |
| Ethernet | |
| LAN | LAN1: Intel i225 2.5GbE · LAN2: Intel i219 1GbE · LAN3: Intel i225 2.5GbE · LAN4: Intel i225 2.5GbE (S5A2 only); all Wake-on-LAN |
| I/O interface | |
| Serial ports | 4 × RS-232/422/485 with auto flow control |
| USB | 3 × USB 3.2, 3 × USB 2.0, 1 × internal USB 2.0 (supported by project) |
| GPIO | 8-bit programmable DIO |
| CANBus | Optional (by project; DB9, replacing GPIO) |
| Audio | Realtek ALC888S; line-out or mic-in |
| Expansion and storage | |
| Mini PCIe | 1 × full-size mPCIe (shared with mSATA) |
| M.2 | 1 × M.2 2230 E key, 1 × M.2 2280 B key (PCIe) with nano-SIM holder |
| iDoor | 1 slot — MOS modules (with AMO-I032 kit): CANBus, LPT, USB, Gigabit Ethernet, isolated RS-232/422/485, isolated 16 DI / 8 DO |
| Storage | 1 × 2.5″ SATA III bay (9.5 mm), 1 × full-size mSATA |
| TPM | TPM 2.0 (optional AMO-I029 module) |
| Watchdog timer | 255-level timer interval, set by software |
| Software | |
| Microsoft Windows | Windows 10/11 IoT Enterprise LTSC |
| Linux | Ubuntu 20.04 / 22.04 |
| Remote management | WISE-DeviceOn (edge-AI OTA, container management) |
| Power | |
| Power type | AT / ATX |
| Input voltage | 12 – 24 VDC |
| Power adaptor | AC/DC 19 V / 4.74 A, 90 W (included) |
| Power consumption | Typical (OS idle) 19.8 W (i5) · 18 W (i3); max. (full load) 35.1 · 30.6 W |
| Mechanical | |
| Construction | Aluminum housing |
| Dimensions (W × H × D) | 60 × 173 × 141 mm |
| Weight | 1,5 kg |
| Mounting | DIN-rail / wall; VESA kit optional |
| Environment | |
| Operating temperature | −40 to 60 °C (with extended-temperature peripherals, 0.7 m/s airflow) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % @ 40 °C (non-condensing) |
| Vibration during operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 – 500 Hz, 1 hr/axis (with wall mount) |
| Shock during operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms (with wall mount) |
| Certification | |
| EMC | CE/FCC Class B, CCC, UKCA |
| Safety | UL, CB, CCC, UKCA |
Key features
- Intel 11th Gen Core i5 / i3
- DIN-rail system with essential I/O ports on the front bezel
- Up to 4 × Intel GbE, 4 × RS-232/422/485, 8-bit DIO, optional CANBus
- 3 expansions: M.2 E key 2230, M.2 B key 2280, full-size mSATA shared with mPCIe
- Dual independent displays with 1 × 4K HDMI + 1 × VGA or 2 × 4K HDMI
- 3 × USB 3.2 and 3 × USB 2.0
- mSATA and 1 × 2.5″ SATA storage device
- 12 – 24 V wide-range power input
- −40 to 60 °C extended operating temperature
- Advantech iEdge support; qualified for the WISE-DeviceOn Edge AI SRP
Ordering information
| Part number | Description |
|---|---|
| ARK-1250L-U2A1 | Core i3-1115G4E; HDMI + VGA; 3 × GbE; made in China |
| ARK-1250L-U2A1U | Core i3-1115G4E; same hardware as U2A1; made in Taiwan |
| ARK-1250L-S5A1 | Core i5-1145G7E; HDMI + VGA; 3 × GbE; made in China |
| ARK-1250L-S5A1U | Core i5-1145G7E; same hardware as S5A1; made in Taiwan |
| ARK-1250L-S5A2 | Core i5-1145G7E; 2 × HDMI (no VGA); 4 × GbE; made in China |
| ARK-1250L-S5A2U | Core i5-1145G7E; same hardware as S5A2; made in Taiwan |
Memory, storage and operating system are bundled on request at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSA-A120W24T2-4 | AC/DC adapter 24 V, 120 W |
| AMK-W006 | ARK-1250 wall mount kit |
| AMK-V023E | ARK-1250 VESA mount kit (must be used with AMK-W006) |
| AMO-I029 | TPM 2.0 module (Infineon SLB9670) |
| AMK-A045 | Thermal kit for 5G or Hailo AI B key module (use mSATA or slim SATA as storage) |
| AMO-I032 | M.2 B key expansion kit for mPCIe iDoor (order together with MOS modules) |
| 1700030518-01 | CANBus cable (replacing GPIO) |
| MOS-2230-Z1201E | iDoor: CANBus module, 2-ch, USB |
| MOS-1130Y-0201E | iDoor: isolated CANBus, 2-ch, DB9, PCIe |
| MOS-2120-Z1101E | iDoor: Gigabit Ethernet module, 1-ch, PCIe |
| MOS-1120Y-0202E | iDoor: isolated RS-232, 2-ch, DB9, PCIe |
| MOS-1121Y-0202E | iDoor: isolated RS-422/485, 2-ch, DB9, PCIe |
| MOS-1110Y-0101E | iDoor: isolated 16 DI / 8 DO, DB37, PCIe |
Is this box PC right for your project?
Share the devices to be connected (serial/Ethernet/CAN), display needs, ambient temperature and cabinet layout; let’s configure processor, memory, storage and expansion modules together. FST commissions the industrial computer together with machine-vision camera, lens and lighting selection as one system.
All product specifications are subject to change without notice; data compiled from Advantech’s ARK-1250L datasheet dated 24 July 2026 and the advantech.com product page.
