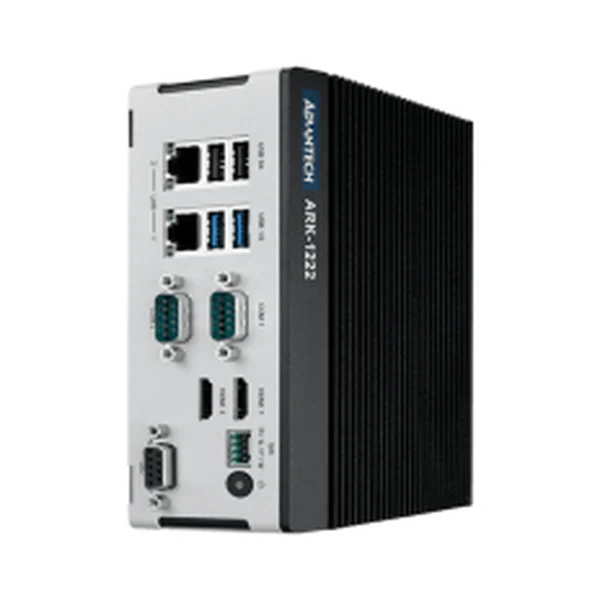

ADVANTECH ARK-1222 — Box PC
DIN-rail fanless box PC with an Intel N97 or Atom x7433RE (quad-core) or Core i3-N305 (octa-core) processor and 16 GB built-in DDR5 — 2 × 4K HDMI, 2 × 2.5GbE, 4 × RS-232/422/485, iDoor expansion, 12 – 28 VDC, up to −40 to 70 °C.
Status: In production
Product: DIN-rail fanless box PC — Intel N97 / Atom x7433RE / Core i3-N305, 2 × HDMI, 4 × COM
CPU: N97 (4C) / Atom x7433RE (4C) / Core i3-N305 (8C)
Interfaces: 2 × HDMI · 2 × 2.5GbE · 4 × COM · 4 × USB · 8 × DIO · iDoor
Dimensions: 60 × 158 × 114 mm · 0,94 kg
Power: 12 – 28 VDC
ARK-1222 brings the same 60 mm DIN-rail housing as ARK-1221L to Intel’s newer Alder Lake-N / Amston Lake platform: the quad-core Intel N97, the industrial-grade quad-core Atom x7433RE (−40 to 70 °C) or the octa-core Core i3-N305. 16 GB of DDR5-4800 memory is soldered on board; four RS-232/422/485 serial ports, two 2.5GbE Intel i226-IT ports and two independent 4K HDMI outputs bring the PLC network, serial field devices and HMI screens into one box. Unlike the other DIN-rail models of the series it carries an iDoor slot: PCIe-based MOS modules add isolated CANBus, isolated serial ports, 16 DI / 8 DO digital I/O or extra Gigabit Ethernet without changing the chassis.
Storage uses an M.2 2280 B key with nano-SIM holder (NVMe, PCIe ×2) and an mSATA slot shared with mPCIe; an M.2 2230 E key serves wireless. TPM 2.0 is on board; an optional cable kit adds two CANBus ports (not usable together with iDoor). The 12 – 28 VDC input connects directly to a 24 V cabinet supply; the 90 W adapter is optional. Advantech bundles SUSI API, WISE-DeviceOn, Trellix and Acronis with the system. Windows 10/11 IoT Enterprise LTSC and Ubuntu 24.04 images are available; VESA and wall mounting kits are optional.
Technical specifications
| ARK-1222 | |
|---|---|
| Processor | |
| CPU | Intel Processor N97 (U0A1/U0A1U) · Intel Atom x7433RE (S5A1/S5A1U) · Intel Core i3-N305 (S8A1) |
| Core number | 4 (N97) · 4 (x7433RE) · 8 (i3-N305) |
| Frequency | N97: 2.0 GHz · x7433RE: 1.5 GHz · i3-N305: 1.8 GHz |
| BIOS | AMI EFI 256 Mbit |
| Memory | |
| Technology | DDR5 4800 MHz |
| Max. capacity | 16 GB (built-in) |
| Socket | 1 × 262-pin SO-DIMM (for the 16 GB built-in) |
| ECC support | No |
| Graphics and display | |
| Graphics chipset | Intel UHD Graphics |
| HDMI | 2 × HDMI 2.0, up to 4096 × 2160 @ 60 Hz |
| Dual display | HDMI + HDMI |
| Ethernet | |
| LAN | 2 × 10/100/1000/2500 Mbps Intel i226-IT, Wake-on-LAN |
| I/O interface | |
| Serial ports | 4 × RS-232/422/485 with auto flow control |
| USB | 2 × USB 3.2 (Gen 2×1), 2 × USB 2.0 |
| GPIO | 8-bit programmable DIO |
| CANBus | Optional 2 × DB9 (via optional cables; cannot coexist with iDoor) |
| Audio | Realtek ALC888S High Definition Audio; line-out, mic-in |
| Expansion and storage | |
| Mini PCIe | 1 × full-size mPCIe (shared with mSATA) |
| M.2 | 1 × M.2 2230 E key (PCIe ×1, USB 2.0), 1 × M.2 2280 B key (PCIe ×2, USB 3) with nano-SIM holder |
| iDoor | 1 slot — MOS modules (PCIe): Gigabit Ethernet, isolated CANBus, isolated 16 DI / 8 DO, isolated/non-isolated RS-232, USB |
| Storage | 1 × NVMe M.2 2280 B key; 1 × full-size mSATA |
| TPM | TPM 2.0 on board (NPCT764) |
| Watchdog timer | 255-level timer interval, set by software |
| Software | |
| Microsoft Windows | Windows 10/11 IoT Enterprise LTSC |
| Linux | Ubuntu 24.04 |
| Bundled software | SUSI API, WISE-DeviceOn, Trellix, Acronis |
| Power | |
| Power type | AT / ATX |
| Input voltage | 12 – 28 VDC |
| Power adaptor | AC/DC 19 V, 90 W (optional) |
| Power consumption | Typical 11.11 W (x7433RE) · 12.95 W (N97) · 14.47 W (i3-N305); max. 29.3 · 32.8 · 49.08 W |
| Mechanical | |
| Construction | Aluminum housing |
| Dimensions (W × H × D) | 60 × 158 × 114 mm |
| Weight | 0,94 kg |
| Mounting | DIN-rail; wall and VESA kits optional |
| Environment | |
| Operating temperature | x7433RE: −40 to 70 °C (with extended-temperature peripherals) · N97 / i3-N305: −20 to 60 °C; 0.7 m/s airflow |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % @ 40 °C (non-condensing) |
| Vibration during operation | 3 Grms, IEC 60068-2-64, random, 5 – 500 Hz, 1 hr/axis (with wall mount) |
| Shock during operation | 30 G, IEC 60068-2-27, half sine, 11 ms (with wall mount) |
| Certification | |
| EMC | CE/FCC Class B, CCC, BSMI, UKCA |
| Safety | UL, CB, CCC, UKCA |
Key features
- Intel N97 and x7433RE quad-core, Core i3-N305 octa-core SoC
- DIN-rail system with essential I/O ports on the front bezel
- Dual 4K HDMI display
- 16 GB DDR5 built-in memory
- Up to 2 × GbE, 4 × USB, 4 × COM, 1 × GPIO, 2 × CANBus
- 1 × M.2 B key, 1 × M.2 E key, 1 × full-size mPCIe (shared with mSATA)
- iDoor expansion slot
- 12 – 28 V wide-range power input
- Windows 10/11 IoT Enterprise LTSC, Ubuntu 24.04
- SUSI API, WISE-DeviceOn, Trellix and Acronis bundled
Ordering information
| Part number | Description |
|---|---|
| ARK-1222-U0A1 | Intel N97, quad-core; 16 GB built-in; −20 to 60 °C |
| ARK-1222-U0A1U | Intel N97; same hardware as U0A1; made in Taiwan |
| ARK-1222-S5A1 | Intel Atom x7433RE, quad-core; 16 GB built-in; −40 to 70 °C |
| ARK-1222-S5A1U | Intel Atom x7433RE; same hardware as S5A1; made in Taiwan |
| ARK-1222-S8A1 | Intel Core i3-N305, octa-core; 16 GB built-in; −20 to 60 °C |
Memory, storage and operating system are bundled on request at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| XARK-ADP-90MDH | AC/DC adapter 19 V, 90 W |
| AMK-W007 | ARK-1222 wall mount kit |
| AMK-V023E | ARK-12XX VESA mount (must be used with AMK-W007) |
| AMK-A0055 / AMK-A0056 | 1-port / 2-port CANBus kit |
| 1960103315N020 / 1960103315N010 | M.2 2242 / M.2 3052 extension bracket |
| 1960117556N000 | M.2 E key thermal bracket (required for Hailo E key module) |
| MOS-2120-Z1101E | iDoor: Gigabit Ethernet module, 1-ch, PCIe |
| MOS-2120-Z1201 | iDoor: dual Intel I210 GbE LAN, 2-ch, PCIe |
| MOS-1130Y-0202 | iDoor: isolated CANBus, 2-ch, DB9, PCIe |
| MOS-1110Y-0101E | iDoor: isolated 16 DI / 8 DO, DB37, PCIe |
| MOS-1120Y-0202E | iDoor: isolated RS-232, 2 ports, DB9, PCIe |
| MOS-1120Y-1402E | iDoor: non-isolated RS-232, 4 ports, DB37, PCIe |
| MOS-2110Z-1201E | iDoor: USB module, 2-ch, PCIe |
Is this box PC right for your project?
Share the devices to be connected (serial/Ethernet/CAN), display needs, ambient temperature and cabinet layout; let’s configure processor, memory, storage and expansion modules together. FST commissions the industrial computer together with machine-vision camera, lens and lighting selection as one system.
All product specifications are subject to change without notice; data compiled from Advantech’s ARK-1222 datasheet dated 28 July 2025 and the advantech.com product page.
