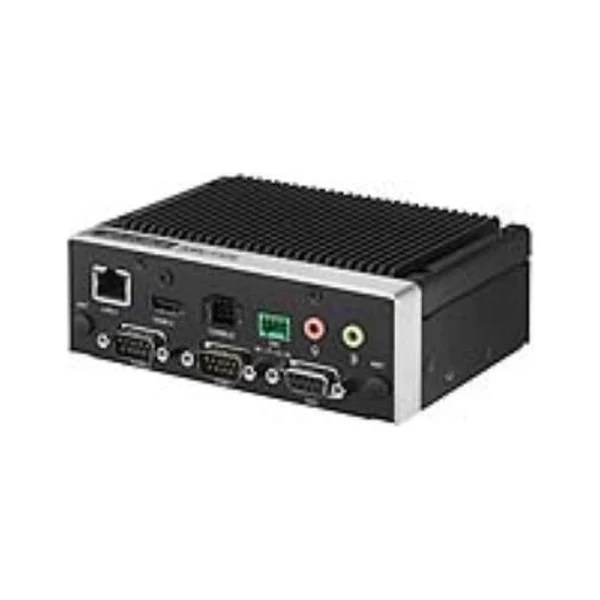

ADVANTECH ARK-1125H — Box PC
Palm-size fanless box PC with a quad-core Intel N200 processor, 133 × 46.4 × 94.2 mm — 2 × HDMI (4K), 2 × 2.5GbE, 2 × RS-232/422/485, 2 × CANBus, M.2 E/B key, TPM 2.0, −30 to 60 °C.
Status: In production
Product: Palm-size fanless box PC — Intel N200, 2 × HDMI, 2 × 2.5GbE, 2 × CANBus
CPU: Intel N200, 4 cores (1.0 GHz, turbo 3.7 GHz)
Interfaces: 2 × HDMI · 2 × 2.5GbE · 2 × COM · 2 × CANBus · 4 × USB · 8 × DIO
Dimensions: 133 × 46,4 × 94,2 mm · 0,7 kg
Temperature: −30 to 60 °C (with extended-temperature peripherals)
ARK-1125H is the palm-size, dual-display model of the ARK-1000 series. With a quad-core Intel N200 processor, two independent 4K HDMI outputs and two 2.5GbE Ethernet ports, it suits tasks that need both display and network connectivity — small HMI/visualisation stations, kiosk and digital-signage control, and on-machine data acquisition. Two CANBus ports and two RS-232/422/485 serial ports communicate directly with vehicle and mobile-machine controllers or field devices; 8-bit programmable DIO handles simple signal exchange without an add-on card.
Memory is single-slot DDR5-4800 SO-DIMM (up to 16 GB); an M.2 2230 E key and an M.2 2280 B key with nano-SIM holder serve storage and wireless modules, and TPM 2.0 is on board. Advantech offers system-level RED-certified wireless configurations with the Wi-Fi 6E (AIW-170BQ-001) and 5G/GNSS (AIW-356DQ-E01) modules — the two cannot be installed at the same time. 12 VDC lockable DC jack, 60 W adapter, 10.5 W typical consumption; DIN-rail, wall and VESA mounting kits are optional. Windows 10 IoT Enterprise, Windows 11 IoT Enterprise and Ubuntu 22.04 images can be ordered by Advantech part number.
Technical specifications
| ARK-1125H | |
|---|---|
| Processor | |
| CPU | Intel Processor N200 |
| Core number | 4 |
| Frequency | 1.0 GHz (web table: max. turbo 3.7 GHz) |
| BIOS | AMI EFI 256 Mbit |
| Memory | |
| Technology | DDR5 4800 MHz |
| Max. capacity | 16 GB |
| Socket | 1 × 262-pin SO-DIMM |
| ECC support | No |
| Graphics and display | |
| Graphics chipset | Intel UHD Graphics |
| HDMI | 2 × HDMI, 4096 × 2160 @ 60 Hz |
| Dual display | HDMI + HDMI |
| Ethernet | |
| LAN | 2 × Intel i226-LM, 2.5GbE, Wake-on-LAN |
| I/O interface | |
| Serial ports | 2 × RS-232/422/485 (default RS-232) with auto flow control |
| USB | 2 × USB 3.2, 2 × USB 2.0 |
| GPIO | 8-bit programmable DIO |
| CANBus | 2 |
| Audio | Realtek ALC888S High Definition Audio; line-out, mic-in |
| Expansion and storage | |
| M.2 | 1 × M.2 2230 E key (PCIe ×1), 1 × M.2 2280 B key with nano-SIM holder (PCIe ×1) |
| Storage | NVMe: M.2 2230 E key and M.2 2280 B key (PCIe ×1 each) |
| TPM | TPM 2.0 on board (Infineon SLB9672) |
| Watchdog timer | 255-level timer interval, set by software |
| Software | |
| Microsoft Windows | Windows 10 Enterprise (images: Windows 10 IoT Enterprise 21H2, Windows 11 IoT Enterprise 24H2) |
| Linux | Ubuntu 22.04 |
| Power | |
| Power type | AT / ATX |
| Input voltage | 12 VDC (minimum 12 V, 5 A) |
| Power adaptor | AC/DC 12 V / 5 A, 60 W with lockable DC jack |
| Power consumption | Typical 10.54 W (OS idle), max. 29.18 W (full load) |
| Mechanical | |
| Construction | Aluminum housing |
| Dimensions (W × H × D) | 133 × 46.4 × 94.2 mm (without mounting kits) |
| Weight | 0,7 kg |
| Mounting | DIN-rail / wall / VESA mounting kits |
| Environment | |
| Operating temperature | −30 to 60 °C (with extended-temperature peripherals, 0.7 m/s airflow) |
| Storage temperature | −40 to 85 °C |
| Relative humidity | 95 % @ 40 °C (non-condensing) |
| Vibration during operation | 3 Grms, IEC 60068-2-64, random, 5 – 500 Hz, 1 hr/axis (with wall mount) |
| Shock during operation | 30 G, IEC 60068-2-27, half sine, 11 ms (with wall mount) |
| Certification | |
| EMC | CE/FCC Class B, CCC, BSMI, UKCA, RED |
| Safety | CB, UL, CCC, BSMI, UKCA |
Key features
- Intel N-series N200 quad-core processor
- DDR5-4800 SO-DIMM memory, up to 16 GB
- Dual independent HDMI outputs with 4K resolution
- M.2 E and B key slots for storage and wireless modules
- TPM 2.0 on board
- −30 to 60 °C extended operating temperature
- 12 V lockable DC-jack power input
- Advantech DeviceOn support
- RED certified with selected wireless modules
Ordering information
| Part number | Description |
|---|---|
| ARK-1125H-S0A1 | Intel N200; 2 × HDMI, 2 × GbE, 2 × COM, 2 × M.2; memory, storage and OS bundled on request; made in China |
| ARK-1125H-S0A1U | Same hardware as S0A1; made in Taiwan |
Memory, storage and operating system are bundled on request at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSA-A60W12W7-3 | AC/DC adapter 100 – 240 V, 60 W, 12 V, lockable DC plug |
| AMK-W001E | ARK-112X wall mounting kit |
| AMK-V003E | ARK-112X VESA mounting kit |
| AMK-R001E | ARK-112X DIN-rail mounting kit |
| AIW-170BQ-001 | Qualcomm Wi-Fi 6E M.2 2230 E key module (RED certified) |
| AIW-356DQ-E01 | 5G Sub-6 + GNSS M.2 3052 B key module (RED certified; cannot be installed together with AIW-170BQ) |
Is this box PC right for your project?
Share the devices to be connected (serial/Ethernet/CAN), display needs, ambient temperature and cabinet layout; let’s configure processor, memory, storage and expansion modules together. FST commissions the industrial computer together with machine-vision camera, lens and lighting selection as one system.
All product specifications are subject to change without notice; data compiled from Advantech’s ARK-1125H datasheet dated 25 December 2024 and the advantech.com product page.
Source: Advantech product data
