Advantech PPC-300 Series — Panel PC
Fanless panel PC series with 13th Gen Intel Core i3/i5/i7 processors, 10.4″ – 21.5″ true-flat touchscreens and IP66 front panels — 2 × 2.5GbE (TSN), M.2 NVMe, iDoor and PCI/PCIe expansion, 24 VDC.
Manufacturer: Advantech
Screen sizes: 10.4″ · 12.1″ · 15″ · 15.6″ · 17″ · 18.5″ · 19″ · 21.5″
Processor: Intel Core i3-1315UE / i5-1335UE / i7-1365UE (13th Gen)
Number of models: 8 (RPL models with a page on this site)
PPC-300 is Advantech’s general-purpose industrial panel PC series: it combines display and computer in one slim aluminium housing, flush-mounted in a cabinet door or fitted on an arm/stand via VESA 75. The eight models on this page share the series’ 13th Gen Intel Core (Raptor Lake, “RPL”) platform; only screen size, aspect ratio, resolution, brightness and touch type change. The same software image and the same I/O layout can therefore be used across the whole line, from a 10.4″ machine panel to a 21.5″ SCADA station.
Common platform: 13th Gen Core, fanless, IP66
All models take an Intel Core i3-1315UE (6 cores), i5-1335UE or i7-1365UE (10 cores); single-slot DDR5-4800 memory scales to 32 GB, storage is an M.2 M key 2280 NVMe/SATA SSD (RAID 0/1) plus a 2.5″ SATA bay. The housing is fanless, the true-flat front is IP66-rated; operating temperature is −10 to 50 °C and the input is 24 VDC ± 30 %. TPM 2.0 is on board as standard.
Connectivity and expansion
Every model has two 2.5GbE Intel I226 ports (TSN capable), two RS-232/422/485 serial ports, three USB 3.2 and one USB 2.0, and a DisplayPort output for a second display; models of 15″ and above add line out and a 2 W speaker. M.2 B key (4G/5G, SIM) and E key (Wi-Fi 6) slots take wireless modules. The iDoor slot adds fieldbus such as PROFIBUS/CANBus, isolated serial ports, digital I/O or extra Ethernet; the optional expansion box adds a PCI or PCIe ×1 card.
Choosing display and touch
The standard 4:3 / 5:4 models (10.4″, 12.1″, 15″, 17″, 19″) fit existing panel cutouts and suit glove operation with resistive touch; the 16:9 widescreen models (15.6″, 18.5″, 21.5″) offer Full HD/HD resolution and P-CAP multi-touch for modern HMI interfaces. Brightness ranges from 250 to 500 cd/m² and backlight life from 30,000 to 50,000 hours. Resistive (R) and P-CAP (P) versions are distinguished in the part number.
Where it is used
On-machine operator panel and HMI, SCADA station flush-mounted in a cabinet door, end-of-line data-entry and labelling terminal, MES client, recipe and quality-control screen; fieldbus-connected machine control via iDoor. FST commissions the panel PC together with SCADA/HMI software and the machine-vision system (camera, lens, lighting) as one solution.
Models in the series
The eight models of the PPC-300 series on the 13th Gen Core (RPL) platform are listed below; click a model name in a card or in the table for specifications, ordering and accessory information. Contact us for the other platforms of the series (Intel N97 “ADL_N”, Atom x7433RE “ASL”, Celeron “EHL”, 11th Gen “TGL” and earlier generations).

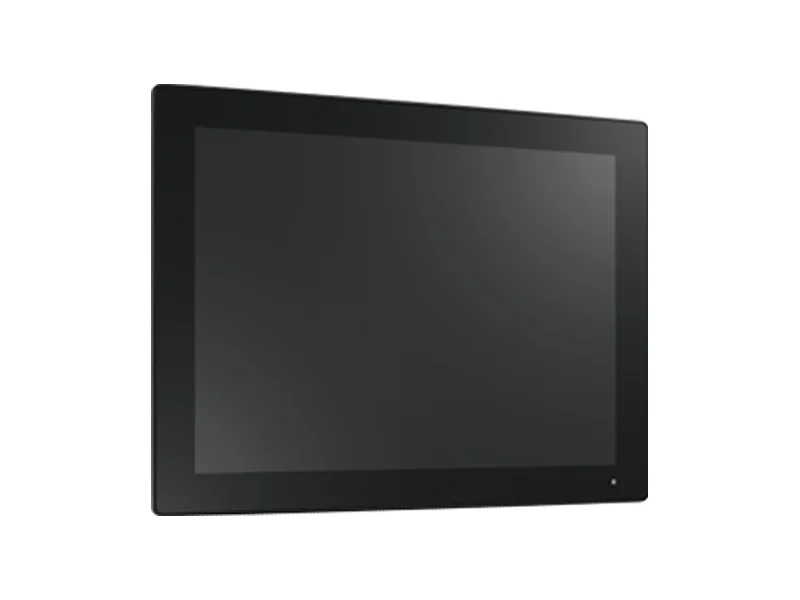

PPC-310S RPL
10.4″ · 1024 × 768 · 5-wire resistive or P-CAP · Core i3/i5/i7 (13th Gen)
PPC-312S RPL
12.1″ · 1024 × 768 (312S) · 1280 × 800 (312SW) · 5-wire resistive (312S) · P-CAP (312SW) · Core i3/i5/i7 (13th Gen) · 312SW 16:10
PPC-315S RPL
15″ · 1024 × 768 · 5-wire resistive or multi-touch P-CAP · Core i3/i5/i7 (13th Gen)

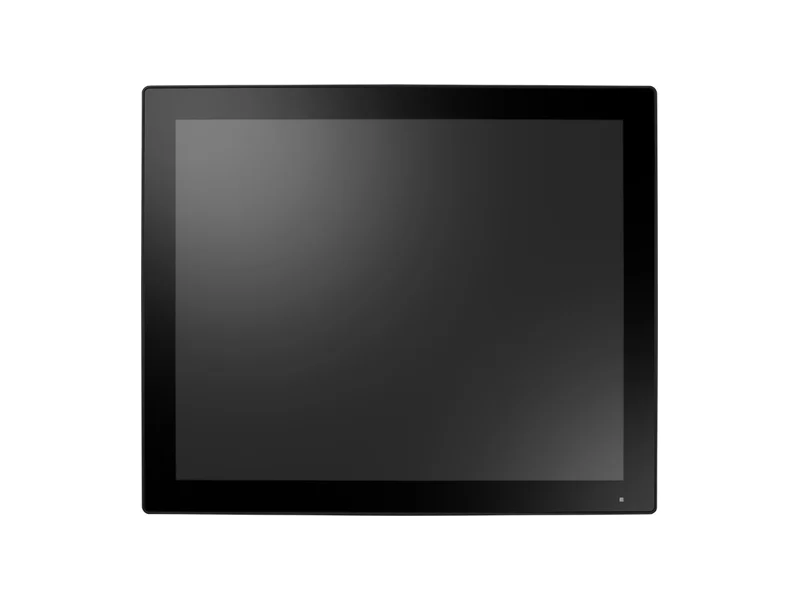

PPC-317S RPL
17″ · 1280 × 1024 · 5-wire resistive or multi-touch P-CAP · Core i3/i5/i7 (13th Gen)

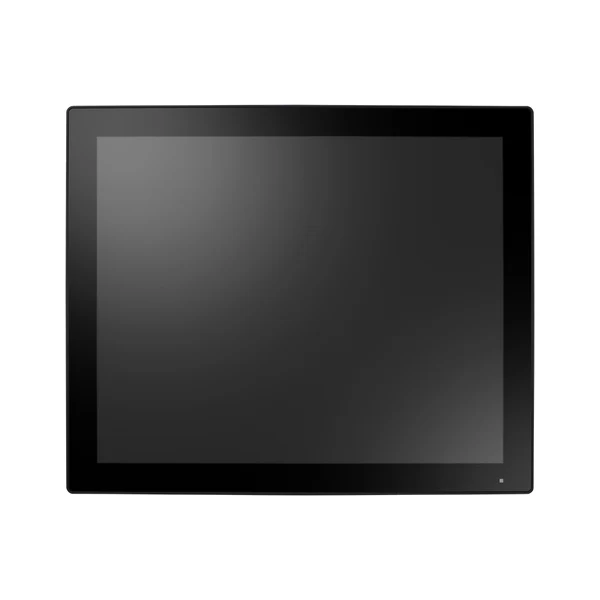

PPC-319S RPL
19″ · 1280 × 1024 · 5-wire resistive or multi-touch P-CAP · Core i3/i5/i7 (13th Gen)
PPC-315SW RPL
15.6″ · 1920 × 1080 · Multi-touch P-CAP or 5-wire resistive · Core i3/i5/i7 (13th Gen)
PPC-318SW RPL
18.5″ · 1366 × 768 · Multi-touch P-CAP or 5-wire resistive · Core i3/i5/i7 (13th Gen)

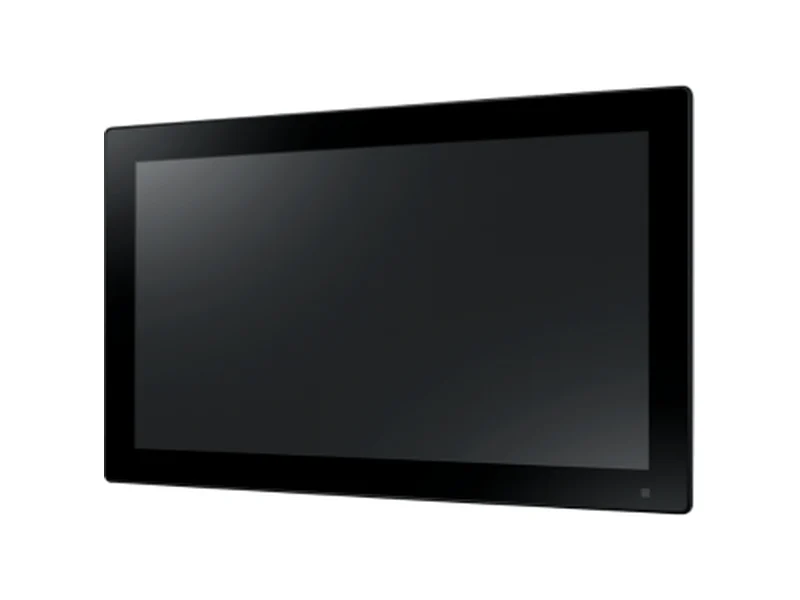

PPC-321SW RPL
21.5″ · 1920 × 1080 · Multi-touch P-CAP or 5-wire resistive · Core i3/i5/i7 (13th Gen)
| Model | Screen | Ratio | Resolution | Brightness | Touch | Dimensions | Power |
|---|---|---|---|---|---|---|---|
| PPC-310S RPL | 10,4″ | 4:3 | 1024 × 768 | 500 cd/m² | 5-wire resistive or P-CAP | 257,9 × 205,3 × 49,9 mm | 65 W |
| PPC-312S RPL | 12,1″ | 4:3 (PPC-312S) · 16:10 (PPC-312SW) | 1024 × 768 (312S) · 1280 × 800 (312SW) | 500 (312S) · 400 (312SW) cd/m² | 5-wire resistive (312S) · P-CAP (312SW) | 295.3 × 233.8 × 49.9 mm (312S) · 312.6 × 214.7 × 49.9 mm (312SW) | 70 W |
| PPC-315S RPL | 15″ | 4:3 | 1024 × 768 | 300 cd/m² | 5-wire resistive or multi-touch P-CAP | 359,6 × 283,6 × 50,4 mm | 75 W |
| PPC-317S RPL | 17″ | 5:4 | 1280 × 1024 | 250 cd/m² | 5-wire resistive or multi-touch P-CAP | 393,4 × 325,8 × 53,4 mm | 85 W |
| PPC-319S RPL | 19″ | 5:4 | 1280 × 1024 | 450 cd/m² | 5-wire resistive or multi-touch P-CAP | 429,7 × 354,6 × 56,4 mm | 70 W |
| PPC-315SW RPL | 15,6″ | 16:9 | 1920 × 1080 | 350 cd/m² | Multi-touch P-CAP or 5-wire resistive | 395,7 × 245,1 × 50,4 mm | 85 W |
| PPC-318SW RPL | 18,5″ | 16:9 | 1366 × 768 | 450 cd/m² | Multi-touch P-CAP or 5-wire resistive | 464,5 × 285,5 × 53,4 mm | 80 W |
| PPC-321SW RPL | 21,5″ | 16:9 | 1920 × 1080 | 250 cd/m² | Multi-touch P-CAP or 5-wire resistive | 529,6 × 321,3 × 53,4 mm | 70 W |
Is PPC-300 right for your project?
Share the screen size, touch type, panel cutout, ambient conditions and the devices to be connected; let’s configure processor, memory, storage and iDoor/PCIe expansion together.
All product specifications are subject to change without notice; data compiled from Advantech’s PPC-310S/312S/312SW RPL (12 February 2026) and PPC-315S(W)/317S/318SW/319S/321SW RPL (27 May 2026) datasheets and the advantech.com product pages.
