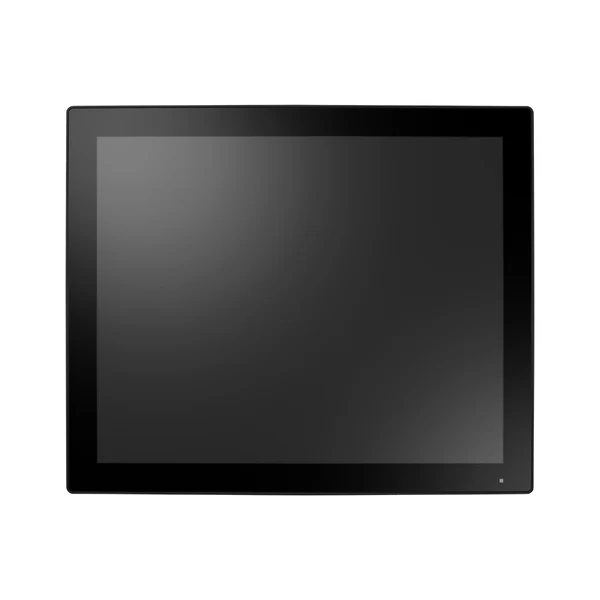

ADVANTECH PPC-319S RPL — Panel PC
Fanless panel PC with a 19″ true-flat touchscreen and a 13th Gen Intel Core i3/i5/i7 processor — 1280 × 1024 resolution, 5-wire resistive or multi-touch P-CAP, IP66 front panel, 2 × 2.5GbE (TSN), 2 × COM, 4 × USB, DP, M.2 NVMe, iDoor / PCIe expansion, 24 VDC.
Status: In production
Product: 19″ fanless panel PC — 13th Gen Intel Core i3/i5/i7, IP66 front panel
Display: 19″ · 1280 × 1024 · 450 cd/m²
CPU: Intel Core i3-1315UE / i5-1335UE / i7-1365UE
Interfaces: 2 × 2.5GbE · 2 × COM · 4 × USB · DP · iDoor
Protection: IP66 front panel · −10 to 50 °C · 24 VDC
PPC-319S RPL is the 19″ 5:4 (1280 × 1024) member of the PPC-300 series, using an industrial-grade LCD with 450 cd/m² brightness, 1000:1 contrast and a 50,000-hour backlight. The 19″ SXGA screen and 450 cd/m² brightness are intended for main operator stations in control rooms and bright production areas. The true-flat front is IP66-rated; resistive or multi-touch P-CAP options are ordered together with the 13th Gen Intel Core i3-1315UE / i5-1335UE / i7-1365UE processor. The fanless aluminium housing is panel-mounted or fitted on an arm/stand via VESA 75.
The platform is shared across the series: single-slot DDR5-4800 (up to 32 GB), a 2.5″ SATA bay plus an M.2 M key 2280 NVMe/SATA SSD (RAID 0/1), 2 × 2.5GbE Intel I226 (TSN), 2 × RS-232/422/485, 3 × USB 3.2 + 1 × USB 2.0, a second display over DisplayPort, line out and a 2 W speaker, M.2 B key (4G/5G, SIM) and E key (Wi-Fi) slots, and on-board TPM 2.0. The iDoor slot takes fieldbus/serial/digital-I/O modules and the 98R1P300S00 box adds a PCI or PCIe ×1 card (iDoor, the additional-port module and the 2.5″ SATA bay share the same space). 24 VDC ± 30 % input; Windows 10 LTSC, Windows 11 and Linux are supported.
Technical specifications
| PPC-319S RPL | |
|---|---|
| System | |
| CPU | 13th Gen Intel Core i3-1315UE (6 cores, 1.2 GHz, turbo 4.5 GHz) / i5-1335UE (10 cores, 1.3 GHz, turbo 4.5 GHz) / i7-1365UE (10 cores, 1.7 GHz, turbo 4.9 GHz) |
| Cache | 10 MB / 12 MB / 12 MB |
| Memory | 1 × SO-DIMM DDR5 4800 MHz, max. 32 GB |
| Storage | 1 × 2.5″ SATA bay; 1 × M.2 M key 2280 (SATA or NVMe PCIe ×4), SATA RAID 0/1 |
| Network (LAN) | 2 × 10/100/1000/2500 Mbps (Intel I226-LM), TSN capable |
| Security | 1 × TPM 2.0 (on board as default) |
| Watchdog timer | 255 timer levels; set by software |
| Speaker | 1 × 2 W |
| Display | |
| Display type | 19″ TFT LCD (LED backlight) |
| Aspect ratio | 5:4 |
| Max. resolution | 1280 × 1024 |
| Viewing angle | 89° (left / right / up / down) |
| Luminance | 450 cd/m² |
| Contrast ratio | 1000:1 |
| Backlight lifetime | 50.000 hr (min.) |
| Touchscreen | |
| Touchscreen type | 5-wire resistive or multi-touch P-CAP |
| Light transmission | 81 ± 3 % (resistive) · > 86 % (P-CAP) |
| Controller | USB interface |
| I/O and expansion | |
| I/O | 2 × RS-232/422/485; 3 × USB 3.2, 1 × USB 2.0 (2 × USB 2.0 optional); 1 × DisplayPort; 1 × line out |
| Dual display | Supported (1 × external DP) |
| Expansion | 1 × M.2 B key 2242 / 3042 / 3052 (PCIe ×1, USB 3.0 and SIM slot; supports iDoor and 4G, 5G by request); 1 × M.2 E key 2230 (PCIe and USB 2.0); 1 × iDoor (optional); 1 × PCI or PCIe ×1 (optional expansion box) |
| iDoor modules | PCM-34R1TP (2.5GbE TSN), PCM-34R2GL (2 × GbE), PCM-34D2R4 / D2R2 (isolated RS-422/485 / RS-232), PCM-34D4R4 / D4R2 (4-port), PCM-37D24DI (24-ch isolated DIO), PCM-23C1CF (CFast) |
| Physical characteristics | |
| Dimensions (W × H × D) | 429,7 × 354,6 × 56,4 mm |
| Weight | 6,3 kg |
| Mounting | Panel mount (cutout in datasheet), VESA 75; wall kit, stand and arm optional |
| Power and software | |
| Input voltage | 24 VDC ± 30 % |
| Power consumption | 70 W |
| OS support | Windows 10 LTSC, Windows 11, Linux |
| Environment | |
| Operating temperature | −10 to 50 °C |
| Storage temperature | −20 to 60 °C |
| Relative humidity | 10 – 95 % @ 40 °C (non-condensing) |
| Shock (operating) | 10 G peak acceleration, 11 ms duration, IEC 60068-2-27 |
| Vibration (operating) | Random 5 – 500 Hz, 2 Grms with SSD, IEC 60068-2-64 |
| Front panel protection | IP66 |
| Certification | |
| EMC | CE, FCC Class B, BSMI, EN 60601-1-2, UKCA |
| Safety | CB, UL, CCC, UKCA |
Key features
- 19″ true-flat touchscreen with industrial-grade LCD panel
- High-performance, fanless 13th Gen Intel Core i processor
- Slim, compact fanless design with aluminium alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 × external DP)
- 1 × M.2 M key 2280 (SATA or NVMe PCIe ×4) for storage, SATA RAID 0/1
- 2 × 2500BASE-T Ethernet with Time-Sensitive Networking (TSN)
- Supports VESA 75
- TPM 2.0 hardware security (on board as default)
- Supports iDoor
- Supports PCI or PCIe
Ordering information
| Part number | Description |
|---|---|
| PPC-319S-RDI3A | 19″ panel PC with Intel Core i3-1315UE, resistive touch |
| PPC-319S-RDI5A | 19″ panel PC with Intel Core i5-1335UE, resistive touch |
| PPC-319S-RDI7A | 19″ panel PC with Intel Core i7-1365UE, resistive touch |
| PPC-319S-PDI5A | 19″ panel PC with Intel Core i5-1335UE, P-CAP touch |
Memory, storage and operating system are bundled on request at order time.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V |
| 1702002605 | Power cable, European type, 250 V / 6 A, 1.8 m |
| PPC-174T-WL-MTE | Wall mount kit for PPC series |
| PPC-STAND-A1E | Stand for PPC series |
| PPC-ARM-A03 | VESA-standard arm for PPC series |
| PPC-WLAN-D2 | M.2 Wi-Fi 6 + BT 5.2 module, 2T2R, with antenna |
| 98R3P300010 | PPC-300 RFID reader (read only, 13.56 MHz and 125 kHz) |
| 98R1P300S00 | Add-on box for PCI or PCIe expansion (riser card included; PCIe ×4 slot, PCIe ×1 signal) |
| 98R1P300S10 | Additional ports module (2 × USB 2.0; iDoor, additional ports and 2.5″ SATA share the same space) |
| PCM-34R1TP-AE | iDoor: 1-port Gigabit Ethernet, Intel I225, 2.5 Gb/s, TSN |
| PCM-34R2GL-AE | iDoor: 2-port Gigabit Ethernet, Intel I350 |
| PCM-34D2R4-AE | iDoor: 2-port isolated RS-422/485, DB9 |
| PCM-34D2R2-AE | iDoor: 2-port isolated RS-232, DB9 |
| PCM-34D4R4-AE / PCM-34D4R2-AE | iDoor: 4-port non-isolated RS-422/485 / RS-232, DB37 cable |
| PCM-37D24DI-AE | iDoor: 24-channel isolated digital I/O with counter, DB37 |
| PCM-23C1CF-BE | iDoor: 1-slot CFast |
Is this panel PC right for your project?
Share the screen size and touch type (glove use → resistive, multi-touch → P-CAP), your panel cutout, ambient conditions and the devices to be connected; let’s configure processor, memory, storage and iDoor/PCIe expansion together. FST commissions the panel PC together with SCADA/HMI software and the machine-vision system as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s PPC-319S RPL datasheet dated 27 May 2026 and the advantech.com product page.
