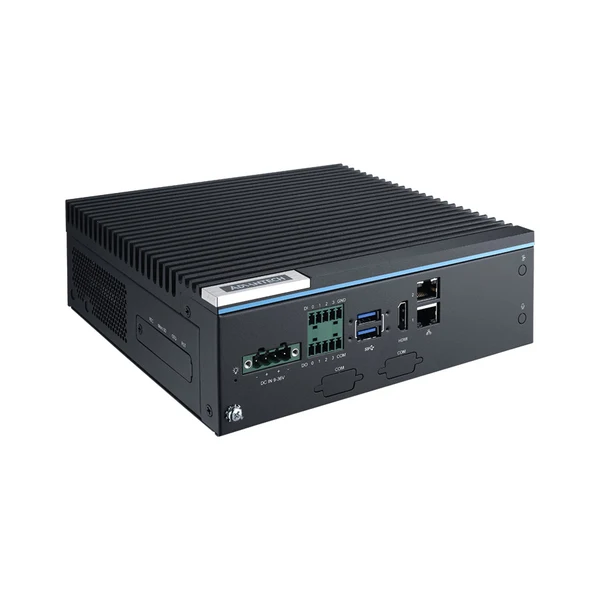

Advantech MIC-711 / 712 / 713 Series — NVIDIA AI PC

MIC-711, MIC-712 and MIC-713 are Advantech’s compact AI inference systems with NVIDIA Jetson Orin NX and Orin Nano modules: fanless, low-power edge computers that process camera images or sensor data on site and produce decisions in real time. The three chassis classes share the same Jetson module options — Orin Nano (4/8 GB, up to 67 TOPS) and Orin NX (8/16 GB, up to 157 TOPS, JetPack 6.2 Super mode) — and differ in I/O: the ultra-compact MIC-711, the ultra-slim MIC-712 for mobile equipment, and the MIC-713 with six USB and digital I/O. On this page FST groups the five Orin NX/Nano models of Advantech’s “AI Computer Systems” category into one series.

Common platform: Jetson Orin, fanless, Super mode

In all models the NVIDIA Jetson Orin module (Ampere GPU, Arm Cortex-A78AE CPU, LPDDR5) runs in a fanless aluminium housing; JetPack 6.2 and above enables Super mode (Nano 67 TOPS, NX 157 TOPS). Storage is an M.2 2280 NVMe SSD (128 GB pre-installed SKUs) and Micro SD; every model has an HDMI 4K output, an M.2 3052 B key 5G slot and nano SIM. Power is 9 – 36 VDC (MIC-712: 19 – 36 VDC), vibration resistance 3 Grms, shock 10 G. Allxon provides 24/7 remote monitoring and OTA software deployment, the optional OOB module out-of-band management (built into MIC-712). None of the models carries RED certification; fitting a Wi-Fi/5G module requires separate regional radio approval.

Which model for which job

MIC-711-ON / -OX (130 × 130 × 46 mm, 1.2 kg): single GbE and three USB for on-machine vision and edge analytics with few cameras; the second-layer kit adds 4-channel GMSL2 cameras and iDoor. MIC-712-OX (160 × 160 × 60 mm): ultra-slim body for mobile equipment, safety and security, 2 × GbE, 4 × USB 3.2 Gen2, −25 to 70 °C, optional CANBus/COM/TPM and GMSL. MIC-713-ON / -OX (194.8 × 174.3 × 65.85 mm): 2 × GbE (PoE by request), 6 × USB 3.2 Gen2, 4 DI / 4 DO, CAN FD, optional 2 × COM and TPM — for multi-camera USB3/GMSL vision systems and PLC-connected machine applications.

Camera connection and expansion

USB3 industrial cameras connect directly to the USB 3.2 ports and GigE Vision cameras to the GbE ports; in vehicle and mobile installations the MIC-FG-4G2C1 4-channel GMSL2 frame grabber (FAKRA) is used (via the expansion kit on MIC-711, via the on-board MIPI connector on MIC-712/713). For wireless there is an mPCIe or M.2 E key Wi-Fi 6 module and an M.2 3052 5G Sub-6 + GNSS module; on MIC-711/713 the iDoor bracket adds fieldbus/serial/I/O modules.

Where it is used

Quality inspection and defect detection on the production line (camera + deep-learning model), OCR/barcode and label verification, workplace-safety analytics (PPE, hazardous zones), vision computer in AGV/cobot cells, mobile-equipment and on-vehicle surveillance (MIC-712), traffic and retail analytics. FST delivers the Jetson system together with the HIKROBOT camera/lens/lighting layer, Advantech industrial computers/panels and model training and commissioning services as one solution.

Models in the series

The five compact Orin NX/Nano models are listed below; click a model name in the cards or the table for specifications, ordering and accessories. Contact us for the MIC-711D developer kits, MIC-713S open-frame solution kits, the AGX Orin based MIC-733-AO / MIC-732-AO and the Jetson Thor based MIC-742/743 in the same category.

Product

MIC-711-ON

Orin Nano · 67 TOPS · 4/8 GB · 1 × GbE · HDMI · 130 × 130 × 46 mm · New

Product

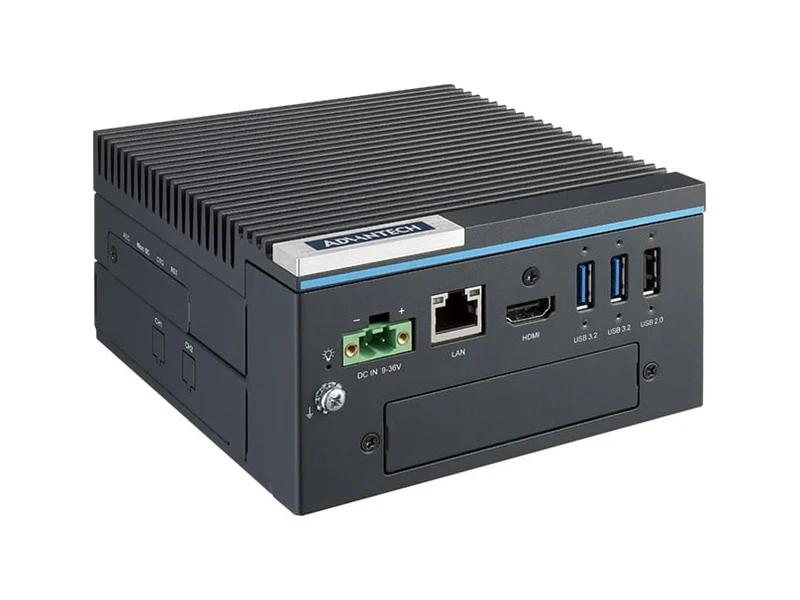

MIC-711-OX

Orin NX · 157 TOPS · 8/16 GB · 1 × GbE · HDMI · 130 × 130 × 46 mm · New

Product

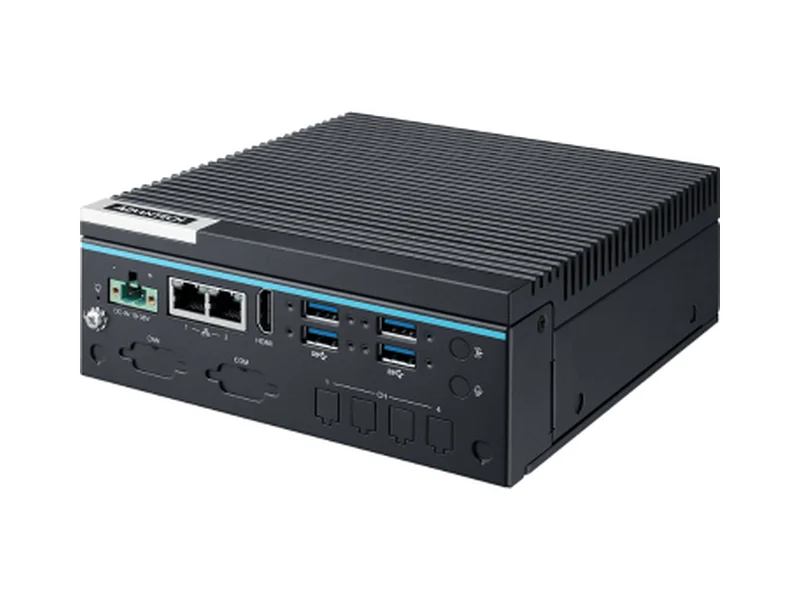

MIC-712-OX

Orin NX · 157 TOPS · 2 × GbE · 4 × USB 3.2 · GMSL/PoE options · −25 to 70 °C · New

Product

MIC-713-ON

Orin Nano · 67 TOPS · 2 × GbE · 6 × USB 3.2 · 4 DI / 4 DO · CAN FD · New

Product

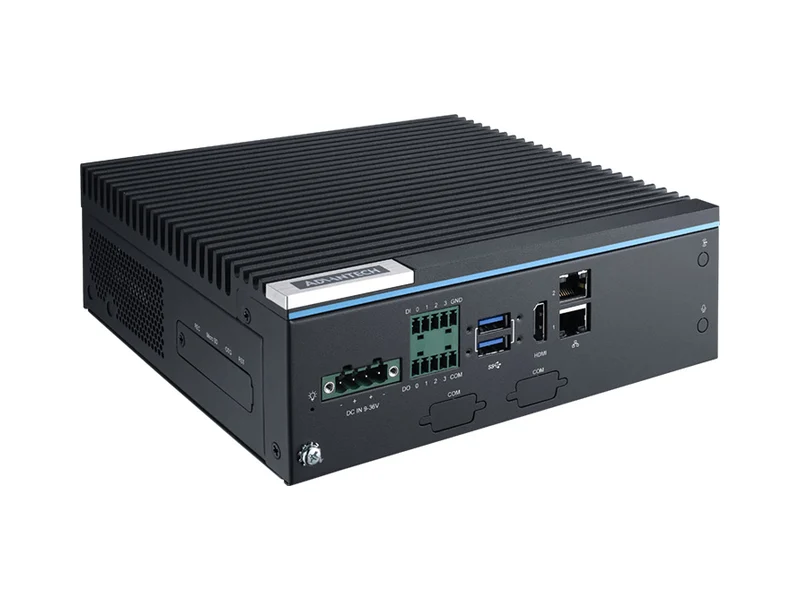

MIC-713-OX

Orin NX · 157 TOPS · 2 × GbE · 6 × USB 3.2 · 4 DI / 4 DO · CAN FD · New
