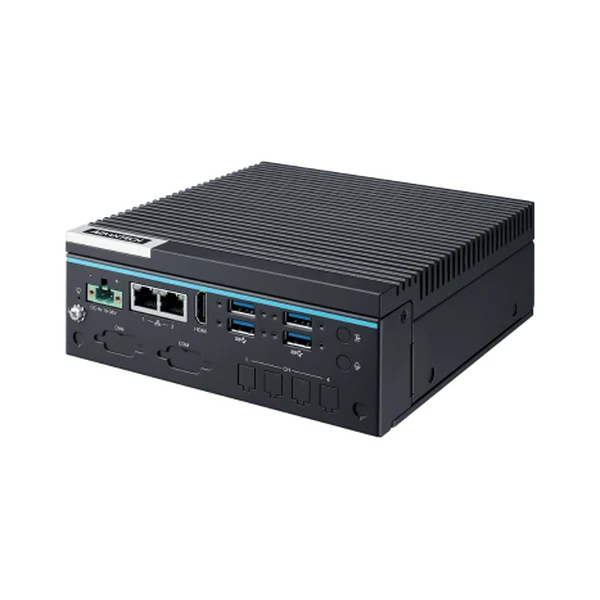

ADVANTECH MIC-712-OX — NVIDIA AI PC
Ultra-slim AI platform based on NVIDIA Jetson Orin NX (up to 157 TOPS) — for mobile equipment, safety and security; 8/16 GB LPDDR5, 2 × GbE, HDMI 4K, 4 × USB 3.2 Gen2, M.2 NVMe, M.2 E key Wi-Fi + M.2 B key 5G, optional GMSL/PoE/TPM/COM/CAN, built-in OOB management, 19 – 36 VDC, −25 to 70 °C. Listed as “New” by Advantech.
Status: In production
Product: Ultra-slim AI platform — Jetson Orin NX, 157 TOPS, mobile equipment
AI module: Jetson Orin NX 8 / 16 GB · up to 157 TOPS
Interfaces: 2 × GbE · HDMI · 4 × USB 3.2 Gen2 · M.2 E/B key
Storage: M.2 2280 NVMe (128 GB pre-installed on A1 SKU) · Micro SD
Environment: −25 to 70 °C (25 W) · 19 – 36 VDC · fanless
MIC-712-OX is the ultra-slim member of the MIC-71x family aimed at mobile equipment: NVIDIA Jetson Orin NX (8 or 16 GB LPDDR5, 1024 CUDA cores, 32 Tensor Cores) delivers up to 157 TOPS of AI inference in JetPack 6.2 Super mode. The 160 × 160 × 60 mm, 2.05 kg fanless body has two Gigabit Ethernet, HDMI 4K, four USB 3.2 Gen2 and two Micro USB ports for console and OTG. Storage is an M.2 2280 PCIe ×4 SSD (128 GB pre-installed on A1 SKUs) and Micro SD. The 19 – 36 VDC input suits 24 V vehicle and mobile-machine supplies; it operates from −25 to 70 °C in 25 W power mode and −25 to 50 °C in 40 W mode.
Expansion is via M.2 E key 2230 (Wi-Fi 6 + Bluetooth), M.2 B key 3052 (5G Sub-6 + GNSS) and nano SIM; a 4-channel GMSL2 frame grabber (MIC-FG-4G2C1) on the on-board MIPI connector connects vehicle cameras directly. One RS-232/422/485 and one CANBus port from on-board pin headers, an optional TPM 2.0 module and an audio cable can be added; out-of-band (OOB) management is integrated. 3 Grms vibration and 10 G shock resistance and CE/FCC/UKCA/CB/UL/BSMI/CCC certification apply (no RED; a radio module needs regional approval). Advantech’s web page also mentions an Orin Nano option; the datasheet dated 16 April 2026 lists Orin NX SKUs only.
Technical specifications
| MIC-712-OX | |
|---|---|
| Processor system (Jetson module) | |
| Jetson module | NVIDIA Jetson Orin NX — up to 157 TOPS (Super mode) |
| CPU | 16 GB: 8-core NVIDIA Arm Cortex-A78AE v8.2 64-bit (2 MB L2 + 4 MB L3); 8 GB: 6-core (1.5 MB L2 + 4 MB L3) |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Memory | 16 GB or 8 GB LPDDR5 |
| I/O | |
| Ethernet | 2 × 10/100/1000 Mbps |
| Display | 1 × HDMI, max. 3840 × 2160 @ 60 Hz |
| USB | External: 4 × USB 3.2 Gen2 |
| Debug / OTG | 1 × Micro USB (console), 1 × Micro USB (OTG) |
| Optional interfaces | 1 × RS-232/422/485 and 1 × CANBus (on-board pin headers, cable 1700019116); audio (line-in + mic, cable 1700027920-01) |
| Expansion and storage | |
| M.2 E key | 1 × M.2 2230 E key (PCIe + USB 2.0) — Wi-Fi 6 module |
| M.2 B key | 1 × M.2 3052 B key (USB 3.2) — 5G module; 1 × nano SIM |
| GMSL | 1 × MIPI connector (optional 4-ch GMSL2 frame grabber MIC-FG-4G2C1) |
| TPM | 1 × TPM 2.0 (optional PCA-TPMSPI-00A1) |
| Storage | 1 × M.2 2280 (PCIe ×4; 128 GB SSD pre-installed on A1 SKUs); 1 × Micro SD |
| Power | |
| Power mode | AT |
| Input voltage | 19 – 36 VDC |
| Environment | |
| Operating temperature | −25 to 70 °C (25 W power mode) / −25 to 50 °C (40 W power mode), with 0.7 m/s airflow |
| Operating humidity | 95 % @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 – 500 Hz, random, 1 hr/axis |
| Shock | 10 G / 11 ms |
| Mechanical and software | |
| Dimensions (W × D × H) | 160 × 160 × 60 mm |
| Weight | 2.05 kg (without packing) |
| Installation | Desktop; wall bracket in the box, DIN-rail bracket optional |
| BSP | JetPack 6.2 or above |
| Remote management | Out-of-band (OOB) management integrated in the system |
| Certification | |
| EMC / safety | CE, FCC, UKCA, CB, UL, BSMI, CCC (no RED certification) |
| Note | No RED certification: adding a Wi-Fi/5G module requires separate regional radio approval. |
Key features
- Ultra-slim design (160 × 160 × 60 mm) for mobile equipment in safety and security applications
- NVIDIA Jetson Orin NX — up to 157 TOPS with Super mode (the web feature list also mentions an Orin Nano option; the datasheet lists Orin NX only)
- 2 × GbE, 4 × USB 3.2 Gen2, HDMI 4K
- Multiple expansions for GMSL, PoE and USB; optional TPM 2.0, COM and CANBus
- M.2 E key Wi-Fi 6, M.2 B key 5G, nano SIM
- Out-of-band (OOB) management integrated in the system
- −25 to 70 °C wide operating range (25 W mode)
Ordering information
| Part number | Description |
|---|---|
| MIC-712-OX4A1 | Jetson Orin NX 16 GB, JetPack 6.2, 128 GB NVMe SSD pre-installed, Super mode |
| MIC-712-OX3A1 | Jetson Orin NX 8 GB, JetPack 6.2, 128 GB NVMe SSD pre-installed, Super mode |
| MIC-712-OX4A2 | Jetson Orin NX 16 GB, no SSD/BSP included (customer provides SSD and installs JetPack 6.2), Super mode |
| MIC-712-OX3A2 | Jetson Orin NX 8 GB, no SSD/BSP included (customer provides SSD and installs JetPack 6.2), Super mode |
Part number: 4 = 16 GB, 3 = 8 GB, 2 = 4 GB module; A2/B2 = JetPack 6.2 + 128 GB NVMe pre-installed, A3/B3 = no SSD/BSP. Wireless modules and the GMSL card are ordered separately.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSA-A120W24T2-4 | Power adapter 100 – 240 V, 120 W, 24 V (C14) |
| 1702002605 | Power cord, EU plug, C13, 1.83 m |
| EWM-W179M201E | Wi-Fi 6 + Bluetooth M.2 A/E key module; antenna 1751000460-01, cable 1751000620-01 |
| AIW-356-DQ | 5G Sub-6 + GNSS M.2 3052 B key module (by region); 4 × antenna 1750009372-01, cable 1751000624-01 |
| PCA-TPMSPI-00A1 | TPM 2.0 module (optional) |
| 1700019116 | COM / CANBus cable |
| 1700027920-01 | Audio port cable (1 × line-in + 1 × mic) |
| MIC-FG-4G2C1 | 4-ch GMSL2 video capture card (FAKRA); RF cable 1751000805-01 per camera |
| 1960095312N001 | DIN-rail bracket |
Is this AI system right for your project?
Share the number and interface of cameras (USB3, GigE, GMSL), your inference model and target frame rate, the mounting location and ambient conditions; let’s decide on the Jetson module (Nano/NX, memory), storage and wireless options together. FST delivers the Jetson system together with the HIKROBOT camera/lens/lighting layer and model commissioning services as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s MIC-712-OX datasheet dated 16 April 2026 and the advantech.com product page.
Source: Advantech product data
