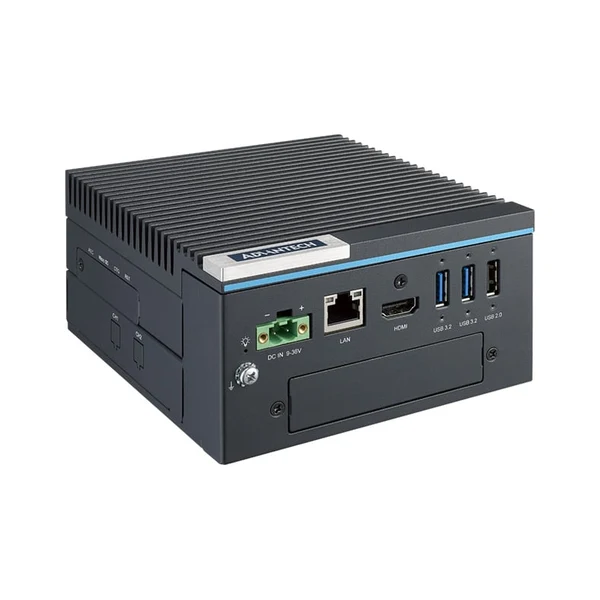

ADVANTECH MIC-711-OX — NVIDIA AI PC
Fanless, ultra-compact AI inference system based on NVIDIA Jetson Orin NX (up to 157 TOPS) — 8/16 GB LPDDR5, 1 × GbE, HDMI 4K, 3 × USB, M.2 NVMe, mPCIe + M.2 5G, 2 × nano SIM, 9 – 36 VDC, −10 to 60 °C; Allxon remote management, GMSL/iDoor expansion kit. Listed as “New” by Advantech.
Status: In production
Product: Ultra-compact AI inference system — Jetson Orin NX, 157 TOPS
AI module: Jetson Orin NX 8 / 16 GB · up to 157 TOPS
Interfaces: 1 × GbE · HDMI · 3 × USB · mPCIe · M.2 5G
Storage: M.2 2280 NVMe (128 GB pre-installed SKU) · Micro SD
Environment: −10 to 60 °C (Super mode −10 to 50 °C) · 9 – 36 VDC · fanless
MIC-711-OX is the NVIDIA Jetson Orin NX top of the MIC-711 family: 8 GB (6-core CPU) or 16 GB (8-core CPU) options with the 1024-CUDA-core, 32-Tensor-core Ampere GPU deliver up to 157 TOPS of AI performance in JetPack 6.2 Super mode. Chassis, ports and expansion are identical to MIC-711-ON: 130 × 130 × 46 mm, 1.2 kg fanless design, one Gigabit Ethernet, HDMI 4K, two USB 3.2 and one USB 2.0, M.2 2280 NVMe SSD (128 GB pre-installed on A2 SKUs) and Micro SD. Roughly 2.3 times the AI performance in the same body makes it the choice for multi-model inference and higher-resolution camera streams.
Expansion: full-size mPCIe (Wi-Fi 6), M.2 3052 B key (5G Sub-6 + GNSS), two nano SIMs; with the 98RVC711002 second-layer kit a 4-channel GMSL2 camera input (MIC-FG-4G2C1), iDoor and four extra antenna holes. Allxon 24/7 remote monitoring and OTA deployment, optional OOB module. 9 – 36 VDC input; operating range −10 to 60 °C, −10 to 50 °C in Super mode (fan kit for 60 °C), 3 Grms vibration and 10 G shock resistance. As there is no RED certification, configurations with a radio module need separate regional approval. The earlier OX4A1/OX3A1 SKUs (JetPack 5.1.2, no Super mode) are marked EOL in Advantech’s datasheet.
Technical specifications
| MIC-711-OX | |
|---|---|
| Processor system (Jetson module) | |
| Jetson module | NVIDIA Jetson Orin NX — up to 157 TOPS (Super mode) |
| CPU | 16 GB: 8-core NVIDIA Arm Cortex-A78AE v8.2 64-bit (2 MB L2 + 4 MB L3); 8 GB: 6-core (1.5 MB L2 + 4 MB L3) |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Memory | 16 GB or 8 GB LPDDR5 |
| I/O | |
| Ethernet | 1 × 10/100/1000 Mbps |
| Display | 1 × HDMI, max. 3840 × 2160 @ 60 Hz |
| USB | External: 2 × USB 3.2 Gen1 (5 Gbit/s; the web table says Gen2), 1 × USB 2.0; internal: 1 × USB 2.0 (pin header) |
| OTG | 1 × Micro USB (OTG / system recovery) |
| Expansion and storage | |
| Mini PCIe | 1 × mPCIe (PCIe + USB 2.0 signals) |
| M.2 | 1 × M.2 3052 B key (USB signal) — 5G/LTE module |
| SIM | 2 × nano SIM |
| Storage | 1 × M.2 2280 M key NVMe (PCIe ×4); 1 × Micro SD |
| Expansion kit | 98RVC711002 second layer: 4-ch GMSL video capture card, iDoor module and 4 additional antenna holes (standard chassis has 2) |
| Power | |
| Power mode | Terminal block, 2-pin, AT |
| Input voltage | 9 – 36 VDC |
| Environment | |
| Operating temperature | −10 to 60 °C (with 0.7 m/s airflow); Super mode: −10 to 50 °C (fan kit for 60 °C); derating possible with a cellular module |
| Operating humidity | 95 % @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 – 500 Hz, random, 1 hr/axis |
| Shock | 10 G / 11 ms |
| Mechanical and software | |
| Dimensions (W × D × H) | 130 × 130 × 46 mm |
| Weight | 1.2 kg |
| Installation | Desktop / wall mount; DIN-rail kit optional |
| BSP | JetPack 5.1 and above (Ubuntu 20.04 and above); JetPack 6.2+ for Super mode |
| Remote management | Allxon 24/7 remote monitoring and OTA deployment; OOB module optional (with expansion kit) |
| Certification | |
| EMC / safety | CB, UL, CE, FCC, BSMI, CCC (no RED certification) |
| Note | No RED certification: adding a Wi-Fi/5G module requires separate regional radio approval. |
Key features
- Fanless, ultra-compact design (130 × 130 × 46 mm, 1.2 kg)
- NVIDIA Jetson Orin NX — up to 157 TOPS, 8 / 16 GB LPDDR5
- 1 × GbE, 2 × USB 3.2, 1 × USB 2.0, HDMI 4K
- 1 × mPCIe, 1 × M.2 3052 (5G), 1 × M.2 2280 NVMe, 2 × nano SIM
- Allxon 24/7 remote monitoring and OTA deployment
- Super mode with JetPack 6.2 and above
- 4-ch GMSL camera input and iDoor via the second-layer expansion kit
Ordering information
| Part number | Description |
|---|---|
| MIC-711-OX4A2 | Jetson Orin NX 16 GB, JetPack 6.2, 128 GB NVMe SSD pre-installed, Super mode |
| MIC-711-OX3A2 | Jetson Orin NX 8 GB, JetPack 6.2, 128 GB NVMe SSD pre-installed, Super mode |
| MIC-711-OX4A3 | Jetson Orin NX 16 GB, no SSD/BSP included (customer provides SSD and installs JetPack 6.2), Super mode |
| MIC-711-OX3A3 | Jetson Orin NX 8 GB, no SSD/BSP included (customer provides SSD and installs JetPack 6.2), Super mode |
| MIC-711-OX4A1 / OX3A1 | JetPack 5.1.2 versions without Super mode — EOL according to Advantech’s datasheet |
Part number: 4 = 16 GB, 3 = 8 GB, 2 = 4 GB module; A2/B2 = JetPack 6.2 + 128 GB NVMe pre-installed, A3/B3 = no SSD/BSP. Wireless modules and the GMSL card are ordered separately.
Accessories and optional items
| Part number | Description |
|---|---|
| 96PSA-A65W19P2-1 | Power adapter 100 – 240 V, 65 W, 19 V |
| 170203183C | Power cord, EU plug, 1.83 m |
| MIC-FG-4G2C1 | 4-ch GMSL2 video capture card (FAKRA); RF cable 1751000805-01 per camera |
| EWM-W173H01E | Wi-Fi 6 + Bluetooth 5.0 mPCIe module (2.4/5 GHz); antenna 1751000460-01, cable 1751000626-01 |
| AIW-356-DQ | 5G Sub-6 + GNSS M.2 3052 B key module (by region); 4 × antenna 1750009372-01, cable 1751000624-01 |
| 1960065854N021 | Bracket for iDoor PCM series add-on module |
| 98RVC711010 | MIC-711 DIN-rail kit |
| 98RV710AL00 | Allxon OOB (out-of-band) remote management module |
| 98RVC711002 | MIC-711 expansion kit (second layer: 4-ch GMSL card, iDoor, 4 extra antenna holes) |
Is this AI system right for your project?
Share the number and interface of cameras (USB3, GigE, GMSL), your inference model and target frame rate, the mounting location and ambient conditions; let’s decide on the Jetson module (Nano/NX, memory), storage and wireless options together. FST delivers the Jetson system together with the HIKROBOT camera/lens/lighting layer and model commissioning services as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s MIC-711-OX datasheet dated 12 August 2026 and the advantech.com product page.
