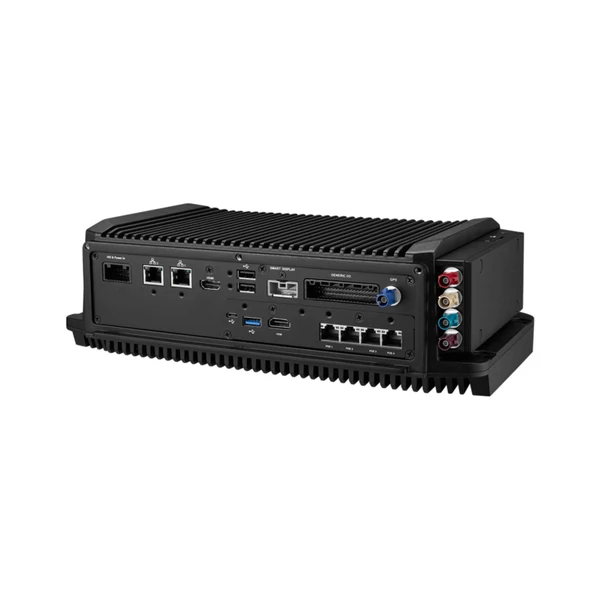

ADVANTECH TREK-60N — NVIDIA AI PC
Dual-system rugged edge AI platform for in-vehicle and harsh environments — an Intel Atom x5-E3940 or Core i7-1365URE host system (Windows / Ubuntu) together with a Jetson Orin NX 8 GB AI module and 4 × PoE camera inputs; 2 × CAN (J1939, OBD-II), J1708, 4 × RS-232/485, 6 DI / 4 DO, 2 × GbE, GNSS, 4G/5G and Wi-Fi expansion, Smart Display Port; 12 / 24 V vehicle power (ISO 7637-2, E-Mark), iVPM 2.0; IP65, 5M3, −20 to 60 °C; DeviceOn iService remote management. Listed as “New” by Advantech.
Status: In production
Product: Dual-system in-vehicle edge AI platform — Intel + Jetson Orin NX, 4 × PoE, CAN, GNSS
Systems: Intel Atom x5-E3940 or Core i7-1365URE + NVIDIA Jetson Orin NX 8 GB
Camera / vehicle interfaces: 4 × PoE · 2 × CAN · J1708 · 4 × RS-232/485 · 6 DI / 4 DO · 2 × GbE · 2 × HDMI · Smart Display Port 2.0
Positioning / wireless: u-blox NEO-M8N / M9L GNSS · Wi-Fi 6/7 + BT 5.3 · 4G/5G (M.2, mini SIM)
Power / protection: 12 / 24 V vehicle power · ISO 7637-2 · E-Mark · iVPM 2.0 · IP65 · −20 to 60 °C
TREK-60N is Advantech’s dual-system rugged edge AI platform designed for in-vehicle and harsh environments (“In-Vehicle AI Solutions” category). Two computers run in one chassis: an Intel Atom x5-E3940 (Windows 10 IoT) or Core i7-1365URE (Windows 11 IoT or Ubuntu 24.04) host system for fleet management, the driver interface and application software, and an NVIDIA Jetson Orin NX 8 GB (1024 CUDA, 32 Tensor Cores, its own 128 GB NVMe) for AI inference on the video from four PoE cameras. The 314 × 172.2 × 95.3 mm chassis (5.8 kg) is IP65 rated with MIL-STD-810G and EN 60721-3 5M3 shock/vibration tolerance; the Atom version operates from −20 to 60 °C and the Core i7 version from −20 to 50 °C without airflow.
The vehicle interfaces come on the TREK family’s standard VIO 2.0 and Generic I/O 2.0 cables: ignition/power input, J1708 (J1587), two J1939 / OBD-II compliant CAN channels (CAN FD on the Core i7 version), four RS-232/485, six isolated DI, four isolated DO and dual audio in/out. The Intel side has two Gigabit LAN, USB ports, HDMI and Smart Display Port 2.0 for the TREK-303 / 306 smart displays (video, audio, USB and power on one cable); the Jetson side has four PoE ports (30 W total, power control via MRM SDK), 4K HDMI and USB 3.0. The built-in GNSS (Atom: NEO-M8N; Core i7: NEO-M9L with dead reckoning), G-sensor and gyroscope, and the Wi-Fi 6/7 + Bluetooth 5.3 and 4G/5G modules in the M.2 slots work through five FAKRA antenna connectors. iVPM 2.0 vehicle power management provides ignition delay, wake-up by RTC / call / G-sensor and battery protection; DeviceOn iService provides OTA updates and remote SSH. Certifications CE, FCC, RCM, CCC, UL/cUL, CB, E-Mark (E13), SAE J1455, CE (RED).
Technical specifications
| TREK-60N | |
|---|---|
| Host system (Intel) | |
| Processor | Intel Atom x5-E3940 quad-core 1.8 GHz (-A1) or Intel Core i7-1365URE up to 4.9 GHz (-K3) — by part number |
| Memory | Atom: 1 × SO-DIMM DDR3L 1866 up to 8 GB; Core i7: 2 × SO-DIMM DDR5 up to 64 GB (16 GB in the SKU) |
| Graphics / display | Integrated 2D/3D; HDMI 1.3 (Atom) / HDMI 2.0 (Core i7); Smart Display Port 2.0 (12 V / 2 A for TREK displays, video + audio + USB 2.0, power/reset) |
| Storage | Atom: 1 × internal mSATA up to 128 GB; Core i7: 1 × M.2 2242 NVMe up to 512 GB (128 GB in the SKU); 1 × externally accessible key-locked 2.5″ SSD tray (up to 7.6 TB); micro SD (on request) |
| Operating system | Atom: Windows 10 IoT Enterprise 2019 LTSC (Linux on request); Core i7: Windows 11 IoT LTSC (-MA) or Ubuntu 24.04 LTS (-NA) |
| Sensors | 1 × G-sensor and gyroscope |
| System (Jetson module) | |
| Jetson module | NVIDIA Jetson Orin NX 8 GB — 6-core Arm Cortex-A78AE |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Memory | 8 GB 128-bit LPDDR5, 102.4 GB/s |
| Storage | 1 × internal M.2 NVMe 128 GB 3D TLC (industrial-grade) |
| Jetson-side I/O | 4 × RJ45 10/100 Base-T(X) PoE 802.3af/at (30 W total, power control via MRM SDK); HDMI (3840 × 2160 @ 60 Hz); 1 × USB 3.0 Type A; 1 × Micro USB OTG |
| Operating system | Ubuntu 22.04 / JetPack 6.2.1 (the web table says JetPack 5.1 / Ubuntu 20.04 for the Atom SKU); iVS DevStack |
| Vehicle interfaces (VIO 2.0 / Generic I/O 2.0) | |
| VIO 2.0 | VIO cable: 1 × ignition and power input, 1 × J1708 (J1587), 2 × CAN (CAN FD on the Core i7 version; J1939, OBD-II/ISO 15765, CAN 2.0A/B, ISO 11898-2, up to 1 Mbit/s; configurable via SDK) |
| Generic I/O 2.0 | Generic I/O cable: 2 × 4-wire RS-232 (default) / RS-485, 2 × 2-wire RS-232, 6 × isolated DI (dry/wet), 4 × isolated DO, 2 × line-out, 2 × mic-in |
| Standard I/O | |
| USB / LAN (Intel side) | Atom: 1 × USB 3.0 (front, key-locked) + 2 × USB 2.0; Core i7: 1 × USB 2.0 (front) + 2 × USB 3.2 (rear); 2 × Gigabit LAN (optional locking mechanism or M12) |
| Indicators / buttons | 5 × LED (power, storage, WLAN, WWAN, GPS); power button via the TREK display (wake-on-ignition by default); key-locked Clear CMOS and Reset buttons behind the front door |
| GNSS and wireless (RF extension) | |
| GNSS | Atom: u-blox NEO-M8N (GPS, Galileo, GLONASS, BeiDou; 2.5 m; NEO-M8U/M8L dead reckoning on request); Core i7: u-blox NEO-M9L (dead reckoning available) |
| WLAN / Bluetooth | 1 × M.2 2230 A+E key — Wi-Fi 6/7 + Bluetooth 5.3 module (Wi-Fi 6/7 and 5G on request); the web table also lists a mini PCIe Wi-Fi 5 |
| WWAN | 1 × M.2 3042/3052 B key (USB 3.0) — 4G/5G module; externally accessible covered mini SIM + embedded SIM (on request) |
| Antenna | 5 × FAKRA: 1 × GPS (C-coded), 2 × Wi-Fi + Bluetooth (I-coded), 2 × WWAN/LTE/5G (D-coded); MIMO |
| Power (vehicle) | |
| Input voltage | 12 / 24 V vehicle power (web table: 6 – 32 VDC), ISO 7637-2 and SAE J1113 compliant |
| Vehicle power management | iVPM 2.0: programmable ignition on/off/delay; PoE power total/on/off management (MRM SDK); wake-on-alarm (RTC), wake-on-call/SMS, wake-on-G-sensor; battery low-voltage protection; monitoring and diagnostics |
| Environment and vehicle standards | |
| Operating temperature | Atom: −20 to 60 °C; Core i7: −20 to 50 °C (−20 to 55 °C on request), without airflow; depends on Orin NX usage |
| Storage temperature | −40 to 80 °C |
| IP rating | IP65 (excluding rear I/O); optional IP65 M12 system I/O cover TREK-60-IP651A0 |
| Vibration / shock | MIL-STD-810G, EN 60721-3 (5M3) |
| EMC / safety | EMC: CE, FCC, RCM, CCC; safety: UL/cUL, CB, CCC |
| Vehicle regulation | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 |
| RF regulation | CE (RED), FCC ID, IC ID |
| Mechanical and software | |
| Dimensions (W × D × H) | 314 × 172.2 × 95.3 mm (datasheet; the web table says 314 × 165.5 × 75.1 mm for the Core i7 SKUs) |
| Weight | 5.8 kg excluding SSD (web table: 4.2 kg for Core i7) |
| Remote management | DeviceOn iService: OTA software installation, remote SSH, anomaly monitoring, device control |
Key features
- Intel + NVIDIA dual system for excellent vehicle edge AI computing performance
- 4-channel PoE video streams for AI capacity
- In-vehicle specialised design: 12 / 24 V certified car power (E-Mark, ISO 7637-2), dual CANbus
- IP65, 5M3 shock and vibration tolerance, −20 to 60 °C without airflow
- Modular design supports the latest RF communication technologies
- ONE cable connection with TREK displays
Ordering information
| Part number | Description |
|---|---|
| TREK-60N-A1A0MN00E | Atom x5-E3940, 8 GB / 64 GB, Orin NX 8 GB + 128 GB NVMe, GPS |
| TREK-60N-K3A0MA00E | Core i7-1365URE, 16 GB / 128 GB, Orin NX 8 GB + 128 GB, GPS, VIO, Windows 11 IoT LTSC |
| TREK-60N-K3A0NA00E | Core i7-1365URE, 16 GB / 128 GB, Orin NX 8 GB + 128 GB, GPS, VIO, Ubuntu 24.04 |
Part number: A1 = Atom x5-E3940, K3 = Core i7-1365URE; MA = Windows, NA = Linux. The package includes the VIO cable (power 100 cm + 2 × CAN / J1708 30 cm) and a 5 m outdoor LTE/GPS FAKRA combo antenna. Advantech estimates mass production of the RF extension modules for Q3 2026.
Accessories and optional items
| Part number | Description |
|---|---|
| TREK-303R-H2A0E / TREK-306P-H2A0E | 7″ WVGA resistive / 10.4″ XVGA P-CAP touch smart display (SDP 2.0); display cable 1700030181-01 (10 m) / 1700030183-01 (5 m) |
| RAM-MOUNT-06E | VESA RAM mount (3.625″ base, 5.625″ double-socket arm) |
| TREK-60-EXTRF0D0 / -EXTRF0E0 | RF extension — Telit 4G / Telit 5G |
| TREK-60-EXTRF200 / -EXTRF2D0 / -EXTRF2E0 | RF extension — Wi-Fi 7 / Wi-Fi 7 + Telit 4G / Wi-Fi 7 + Telit 5G |
| TREK-60-IP651A0 | IP65 M12 system I/O cover |
| TREK-60-EXTIOA00 / -EXTIOA10 | I/O extension — 4 / 8-channel analog video capture |
| 1700030180-11 | Generic I/O cable (RS-232, line-out/in, DI/DO), 60 cm |
| 96PSA-A150W12W7-4 | AC/DC adapter 100 – 240 V, 150 W, 12 V, lockable DC jack (indoor); power cable 1700030387-11 |
| 1751000841-01 / 1751000818-01 | IP67 external antenna 5G FAKRA-D 5 m / Wi-Fi FAKRA-I 5 m |
