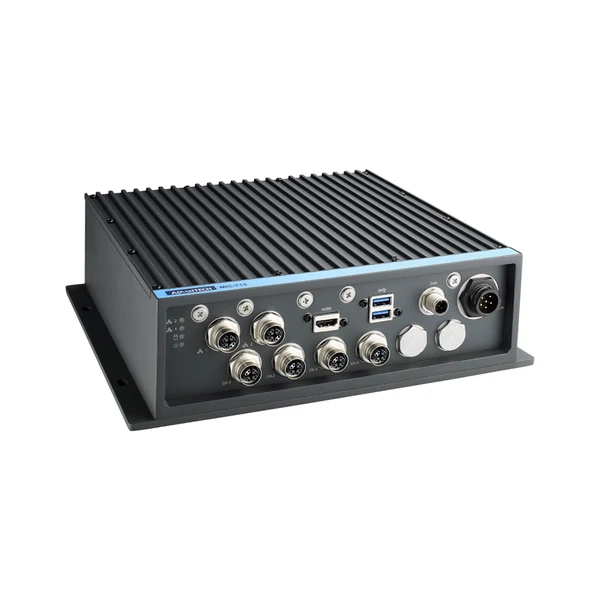

ADVANTECH MIC-715-NX — NVIDIA AI PC
IP67 waterproof fanless in-vehicle AI inference system / AI network video recorder based on NVIDIA Jetson Xavier NX (21 TOPS) — 6 × GbE M12 X-coded (4 with PoE 802.3af), 2 × CAN, 2 × USB 3.0, 4K HDMI; 2 × Mini PCIe, M.2 3052, nano SIM, M.2 2280 NVMe, micro SD; 12 / 24 VDC M16 with ignition; −25 to 60 °C; Allxon remote management. Advantech catalogue status “Release to Market”.
Status: In production
Product: IP67 in-vehicle AI inference system / AI NVR — Jetson Xavier NX, 4 × PoE M12, 2 × CAN
AI module: Jetson Xavier NX 8 GB (21 TOPS)
Interfaces: 6 × GbE M12 (4 × PoE) · 2 × CAN · 2 × USB 3.0 · 4K HDMI
Expansion: 2 × Mini PCIe · M.2 3052 B key · nano SIM · M.2 2280 NVMe · micro SD
Power / protection: 12 / 24 VDC with ignition · IP67 · fanless · −25 to 60 °C
MIC-715-NX is Advantech’s IP67 waterproof, fanless AI inference system designed for in-vehicle use; the Advantech datasheet also positions it as an “AI network video recorder” (“AI Rugged System & AI NVR” category within the Jetson platforms). It ships with an NVIDIA Jetson Xavier NX 8 GB module (6-core Carmel, 384 CUDA + 48 Tensor Cores, 21 TOPS) and 16 GB eMMC; the 275 × 220 × 80 mm, 4.5 kg chassis operates from −25 to 60 °C and withstands 3 Grms vibration and 10 G shock. Power is 12 or 24 VDC through an M16 connector with ignition signal (DIP switch for 24 V). Being Xavier NX based, it offers lower AI performance than the Orin family TREK-50N; the Advantech catalogue status is “Release to Market” and the datasheet dates from 2024.
All Ethernet connections are on M12 X-coded connectors: six Gigabit ports, four of which power cameras directly with IEEE 802.3af PoE; the waterproof M12-to-RJ45 cable is ordered separately. There are two CAN channels (waterproof 5-pin cable), two USB 3.0, Micro USB OTG and 4K HDMI. Two Mini PCIe and one M.2 3052 B key slot with a nano SIM take 4G/LTE and Wi-Fi modules, the M.2 2280 NVMe (PCIe x1) slot takes an SSD and the micro SD slot additional storage. Linux ships with the JetPack 4.4.1 and above BSP; 24/7 remote monitoring and OTA deployment are supported through the Allxon portal. Certifications CB, UL, CE, FCC, CCC; there is no RED certificate (to be assessed separately if a wireless module is added).
Technical specifications
| MIC-715-NX | |
|---|---|
| System (Jetson module) | |
| Jetson module | NVIDIA Jetson Xavier NX 8 GB — 6-core NVIDIA Carmel Arm v8.2 64-bit |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores; up to 21 TOPS |
| Memory | 8 GB LPDDR4 |
| Flash | 16 GB eMMC |
| Ethernet and expansion | |
| Ethernet | 6 × 10/100/1000 Mbps, M12 X-coded 8-pin female — 4 with PoE (IEEE 802.3af) |
| Expansion | 2 × Mini PCIe (PCIe + USB); 1 × M.2 3052 B key (PCIe + USB); 1 × nano SIM |
| Storage | 1 × M.2 2280 M key NVMe (PCIe x1); 1 × micro SD slot |
| Standard I/O | |
| Display | HDMI (up to 3840 × 2160 @ 60 Hz) |
| USB | 2 × USB 3.0 (external); 1 × Micro USB OTG |
| CAN | 2 × CAN |
| Power (vehicle) | |
| Input voltage | 12 / 24 VDC (12 V – 6 A) with ignition, M16 6-pin male; 12 V by default — set DIP switch SW1 to 01 for 24 V |
| Environment | |
| Operating temperature | −25 to 60 °C (0.7 m/s airflow, Max-P ARM mode) |
| Humidity | 95 % @ 40 °C (non-condensing) |
| Vibration / shock | 3 Grms 5 – 500 Hz random 1 hr/axis; 10 G / 11 ms |
| IP rating | IP67 waterproof fanless design |
| Mechanical and software | |
| Dimensions (W × D × H) | 275 × 220 × 80 mm |
| Weight | 4.5 kg |
| Installation | Desktop |
| BSP / remote management | Linux, JetPack 4.4.1 and above; Allxon 24/7 remote monitoring and OTA deployment |
| Certification | |
| Certification | CB, UL, CE, FCC, CCC (no RED certification) |
Key features
- Ruggedised IP67 waterproof fanless design
- Embedded NVIDIA Jetson Xavier NX with up to 21 TOPS
- 2 × GbE and 4 × PoE with IEEE 802.3af compliance
- 2 × USB 3.0, 2 × CANbus, 1 × HDMI
- Supports 2 × mPCIe, 1 × M.2 3052, 1 × M.2 2280
- Linux OS with BSP; Allxon 24/7 remote monitoring and OTA deployment
Ordering information
| Part number | Description |
|---|---|
| MIC-715-NXA1 | Jetson Xavier NX 8 GB, 16 GB eMMC, micro SD slot |
No part number is listed on the advantech.com product page; the single SKU comes from the datasheet dated 29 July 2024 (Advantech catalogue status “Release to Market”). The M12-to-RJ45 and CAN cables and the power cords are ordered separately.
Accessories and optional items
| Part number | Description |
|---|---|
| 1700025503-01 | Waterproof M12-to-RJ45 cable, 100 cm |
| 1700022250-21 | Waterproof 5-pin CAN cable, 200 cm |
| 1700001524 / 170203183C / 170203180A / 1702031836 / 1700008921 / 1700019146 | Power cord US / EU / UK / AU / Japan / China, 183 cm |
| XSK320-LRS-150-12 | Open-frame AC/DC 100 – 240 V 150 W 12 V (development/testing only) |
