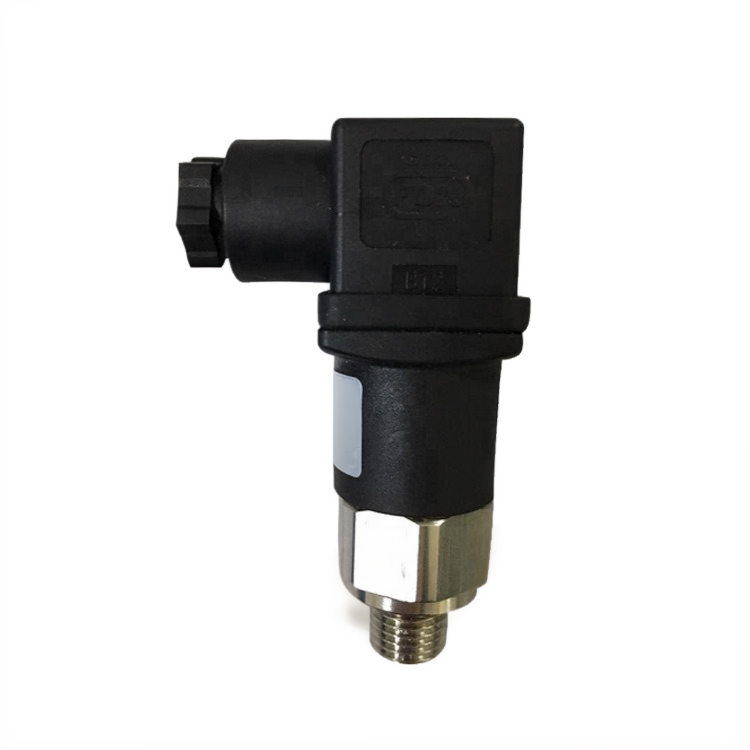

Pressure Switch

Pressure Switch

KPS Series
Key Features
  • Mechanical diaphragm and piston sensor options
  • SPDT / DPDT contact output options
Detailed Parameters
MediumLiquid / gas
Measuring Range1,2…12 bar / 50…400 bar
Operating Temperature-20°C … +85°C
Pmax1,5 x maximum skala
Accuracy±%1
ConnectionSpade terminal, optional kablolu (wired)
Protection ClassIP54, IP67 (with protective cover)
Output SignalPNP / NPN, NO / NC
Power Supply18 – 36 VDC
