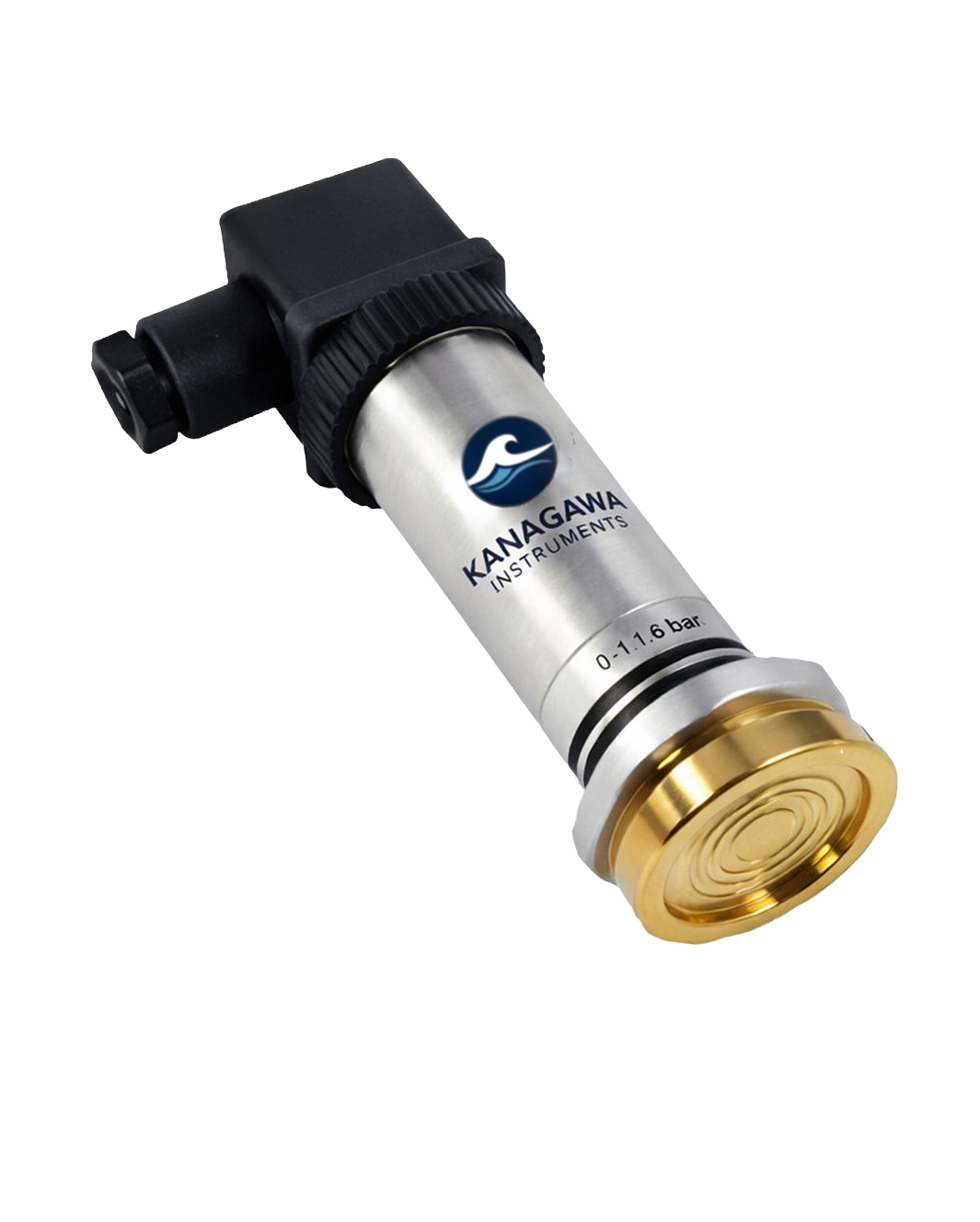

Flush Diaphragm Pressure Transmitter
KFPT Series
Key Features
- Flush diaphragm design that prevents clogging
- Hygienic design compatible with CIP/SIP
- High precision and fast response
- Ideal solution for demanding media
- Low maintenance and long service life
- Digital integration and flexibility
Detailed Parameters
| Medium Type | Liquids and gases for uygundur |
| Measuring Range | 0…0,1 bar – 0…1000 bar |
| Accuracy | < ±0,5% FS (optional: < ±0,2% FS) |
| Operating Temperature | -40°C … +125°C (optional: +250°C) |
| Supply Voltage | 10 – 32 V DC |
| Process Connection | ISO 2852 Tri-Clamp (1”, 1.5”, 2”) |
| Body Material | AISI 304, AISI 316 (optional: gold plated) |
| Output Signal | 4…20 mA 0…10 V DC HART MODBUS |
| Protection Class | IP67, IP68 |
