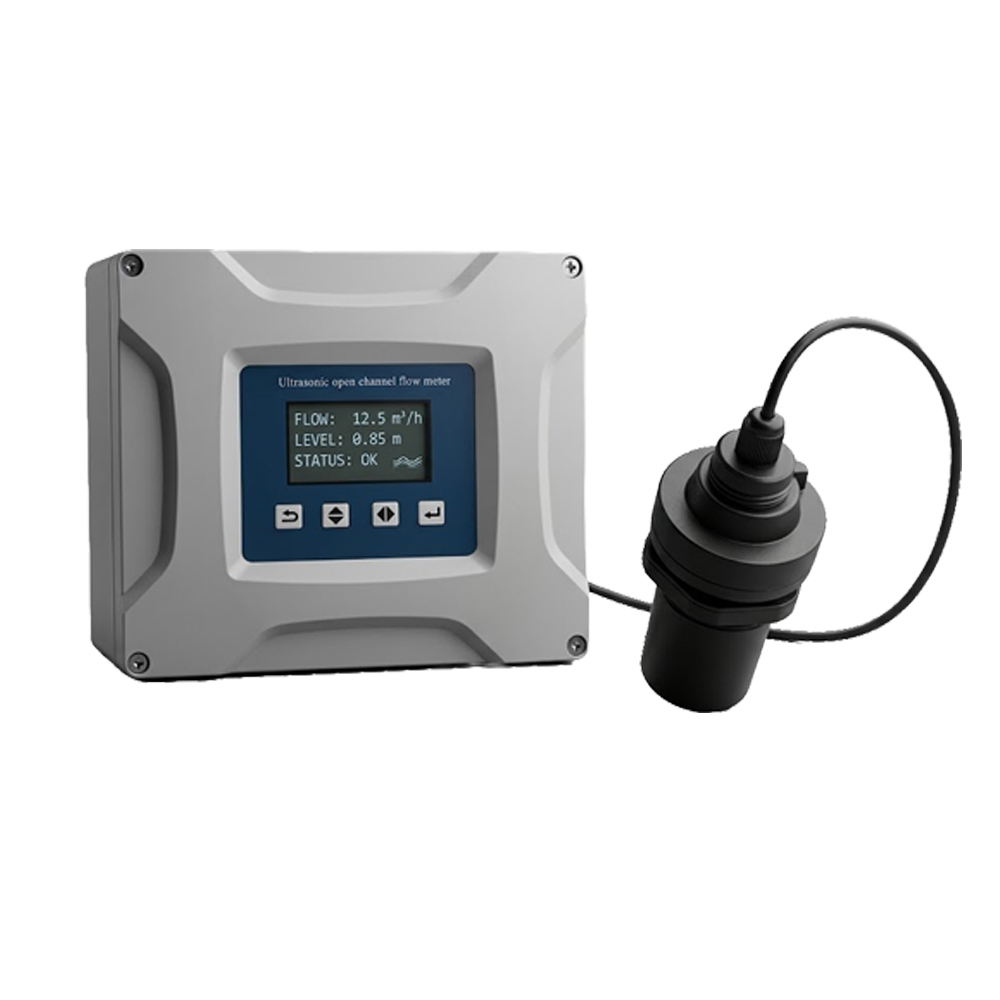

Ultrasonic / Open Channel Flowmeter
KOCF Series
Key Features
- Non-contact ultrasonic measuring technology
- Design suited to open channel and weir applications
- Parshall flume support
- High measuring accuracy
- Minimum maintenance requirement
- Wide range of communication options
Detailed Parameters
| Medium | Liquid |
| Range | 0-6 m … 0-10 m |
| Power Supply | 24 VDC ( |
| Optional | 230 VAC) |
| Communication | RS-485 MODBUS, HART, PROFIBUS |
| Accuracy | <±2 mm |
| Connection | Kanallar, Flume Sistemleri / standard Kanallar |
| Protection Class | IP65 indicator, IP67 sensor |
| Output | Pulse, 4-20 mA |
| Indicator | Flow rate, total volume and level TFT display |
