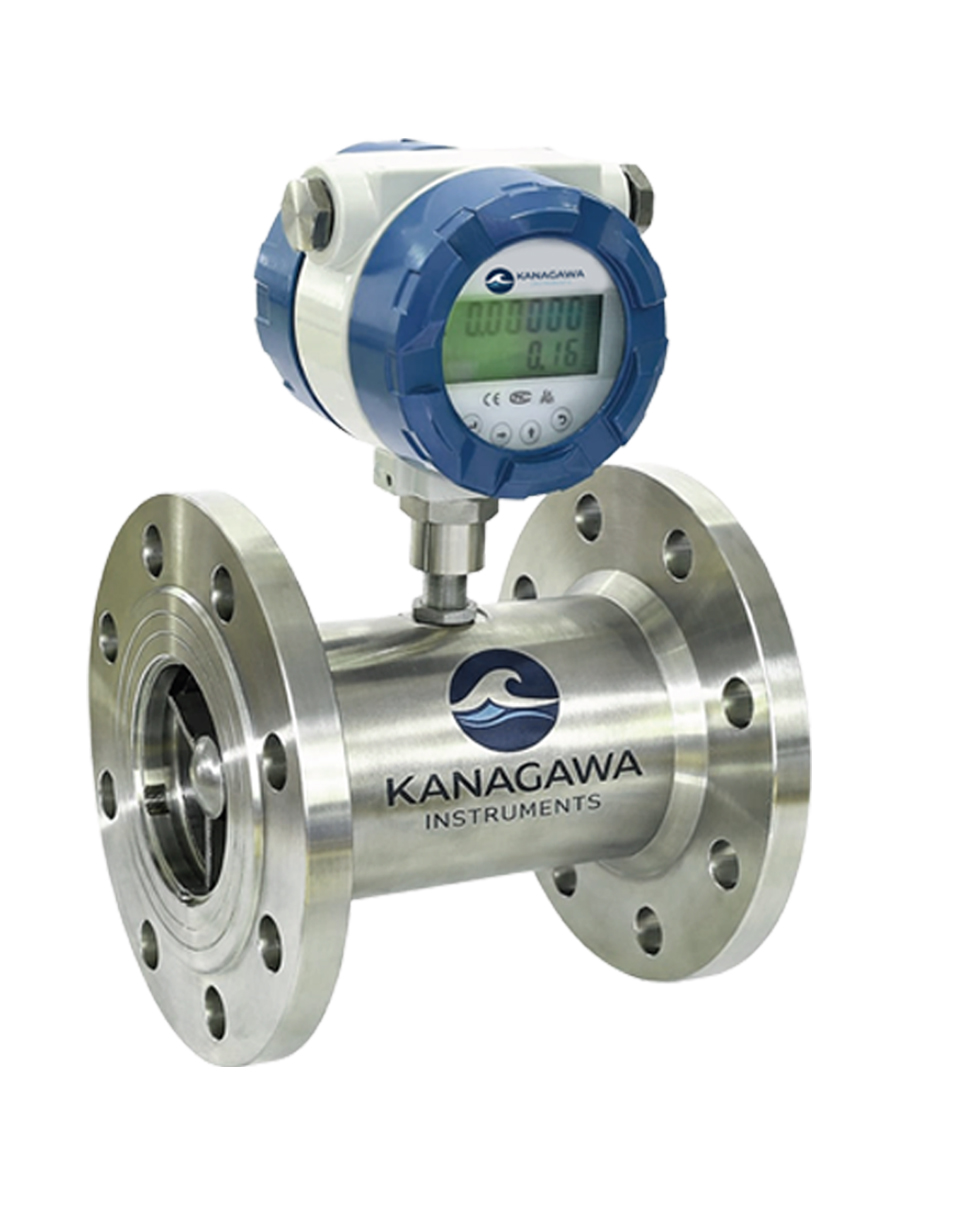

Turbine Flowmeter for Liquids
KLTF Series
Key Features
- ±0.25% high accuracy
- ±0.1% outstanding repeatability
- Low pressure loss
- Wide flow measuring range
- Strong mechanical resistance
- Long bearing life
Detailed Parameters
| Diameter Range | DN4–DN200 |
| Accuracy | ±1.0%; ±0.5% |
| Body Material | SS304; SS316 |
| Rotor Material | 2Cr13; CD4MCu |
| Connection Type | Flanged; Clamp (clamped); threaded; Wafer |
| Medium Temperature | -20°C … +150°C |
| Output Signal | 4–20 mA; Pulse (Darbe) |
| Communication | RS485; HART |
| Power Supply | 24V DC; Batarya; 220V AC |
| Explosion Protection | Exd IICT6 Gb |
| Protection Class | IP65 |
