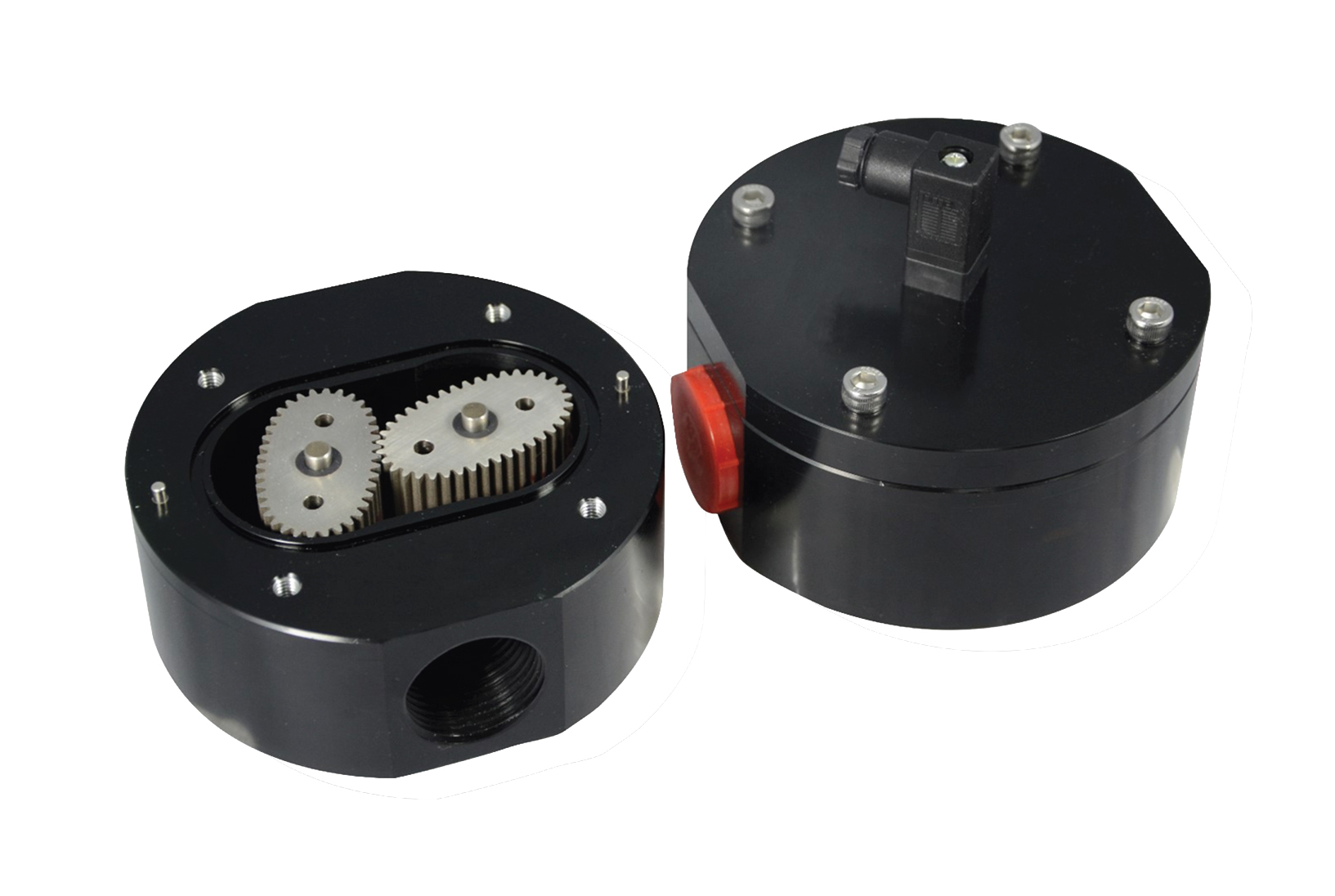

Industrial Oval Gear Flowmeter
KOGF Series
Key Features
- Construction that adapts to different applications
- Advanced positive displacement measuring technology
- Outstanding precision and measurement reliability
- Resistance to demanding process conditions
Detailed Parameters
| Medium | Liquid |
| Flow Range (Liquid) | 1…150 ml/dk | 0,5…12 l/dk |
| Accuracy | < ±1% / ±0,5% / ±0,2% |
| Tmax | -25…70°C (optional: 120°C) |
| Pmax | 40 bar (optional: 300 bar) |
| Connection Size | 1/8” … 1” |
| Body Material | Aluminium (optional: AISI 316L stainless steel) |
| Output Signal | Pulse, 4–20 mA, RS485 (MODBUS) |
