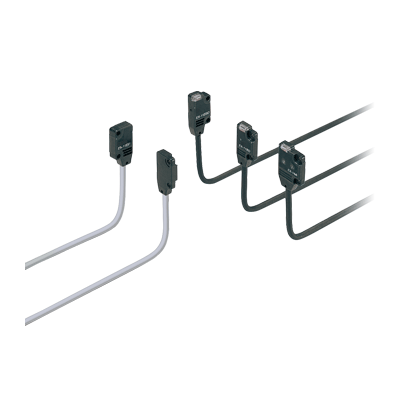

Ultra-slim Photoelectric Sensor EX-10 Ver.2
Panasonic — EX-10 Series
At just 3.5 mm thick it is the slimmest photoelectric sensor in its class. The sensor unit complies with ISO 13849-1 Category 1 PLc, and on narrow-beam models light diffusion is about half that of the standard type.
Key Features
- Body just 3.5 mm thick
- Sensor unit complies with ISO 13849-1 Category 1 PLc
- Flexible mounting
- Light diffusion roughly halved on narrow-beam types
- Low power consumption
- High-speed response time of 0.5 ms
Detailed Parameters
| Sensing Range | 150 mm / 500 mm / 1 m (tipe göre) |
| Min. Sensing Object | ø1 mm opak nesne (150 mm ayar mesafesinde) |
| Repeatability | Algılama eksenine dik ≤0,05 mm |
| Supply Voltage | 12 – 24 V DC ±%10 |
| Current Consumption | Verici ≤10 mA, alıcı ≤10 mA |
| Output | NPN/PNP açık kolektör transistör; azami 50 mA |
| Utilization Category | DC-12 veya DC-13 |
| Short-circuit Protection | Dahili |
| Regulations & Certifications | CE, UKCA, ISO 13849-1 (Kat. 1, PLc), UL |
