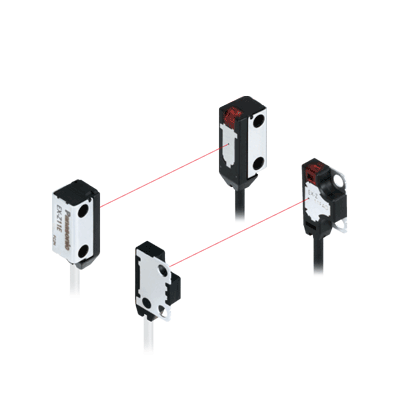

Ultra-minute Photoelectric Sensor EX-Z
Panasonic — EX-Z Series
A slit is built into the front of the body, so objects as small as ø0.3 mm can be detected without an optional slit. With front and side sensing, thru-beam and reflective types, it fits into confined spaces.
Key Features
- Detects ø0.3 mm objects without a slit
- Front and side sensing body options
- High environmental resistance
- Fast 0.5 ms response time
Detailed Parameters
| Sensing Distance | 50 mm / 200 mm (tipe göre) |
| Min. Sensing Object | ø0,3 mm opak nesne (50 mm ayar mesafesinde) |
| Repeatability | Algılama eksenine dik ≤0,02 mm / ≤0,03 mm |
| Supply Voltage | 12 – 24 V DC ±%10 |
| Current Consumption | Verici ≤10 mA, alıcı ≤10 mA |
| Output | NPN/PNP açık kolektör transistör; azami 20 mA |
| Response Time | ≤0,5 ms |
| Short-circuit Protection | Dahili |
| Regulations & Certifications | CE, UKCA, UL/c-UL |
