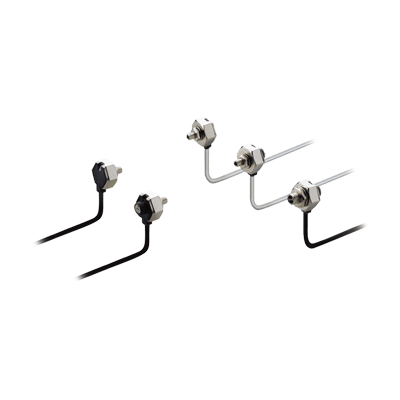

Threaded Miniature Photoelectric Sensor EX-30 Ver.2
Panasonic — EX-30 Series
You only need a ø4 mm hole where the object is to be stopped or checked (ø6 mm for the reflective type). The centre of the sensing axis coincides with the centre of the mounting hole, which makes setting the sensing position much easier.
Key Features
- Simple design with a single mounting hole
- New design that solves the weak points of fiber sensors
- Low power consumption
- Long sensing range
- High response speed of 0.5 ms
- Certified for global use
Detailed Parameters
| Sensing Range | 500 mm / 800 mm (karşılıklı); 50 mm (yayınık yansımalı) |
| Sensing Object | ø2 mm ve üzeri opak nesne; yansımalıda opak, yarı saydam veya saydam |
| Hysteresis | Çalışma mesafesinin ≤%15’i (yansımalı tip) |
| Repeatability | ≤0,05 mm (karşılıklı) / ≤0,5 mm (yansımalı) |
| Supply Voltage | 12 – 24 V DC ±%10 |
| Current Consumption | Verici ≤10 mA, alıcı ≤10 mA / ≤13 mA |
| Output | NPN/PNP açık kolektör transistör |
| Output Operation | Light-ON / Dark-ON; bazı modellerde anahtarla seçilebilir |
| Regulations & Certifications | CE, UKCA, UL |
