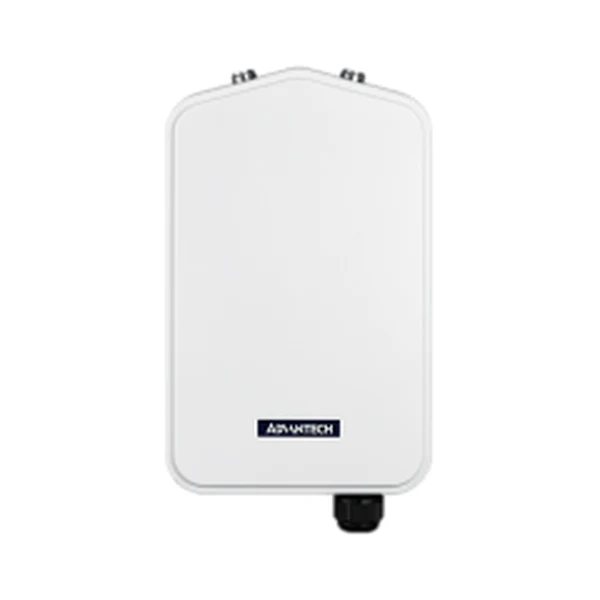

ADVANTECH WISE-6610P — Vibration Sensors
Pole/wall-mounted LoRaWAN gateway for outdoor use with an IP67 housing, 16-channel Semtech SX1302 chipset, PoE power, embedded LNS and Modbus/TCP, MQTT, BACnet and OPC UA support; −40 to +75 °C.
Status: In production
Product: 16-channel IP67 industrial LoRaWAN gateway
Wireless: LoRaWAN · 16 kanal · SX1302 · IN865/EU868/AU915/US915/KR920/AS923/JP923
Network: 10/100 Mbps Ethernet · PoE 802.3af/at · 4G (yalnız -C kodları)
Software: Gömülü LNS, Node-RED, Edgelink · Modbus/TCP, MQTT, BACnet, OPC UA
Enclosure / environment: IP67 · 160 × 255 × 79,5 mm · −40…+75 °C
WISE-6610P is a high-performance industrial LoRaWAN gateway designed for outdoor, pole or wall mounting with 16 wireless channels and an IP67 housing. The Semtech SX1302 chipset doubles packet-processing speed; two N-type antenna connectors and up to 27 dBm transmit power give wide site coverage. The embedded LoRaWAN network server decodes data from sensors such as the WISE-2410 on the device and passes it to higher-level systems via Modbus/TCP, MQTT, BACnet/IP or OPC UA.
It is powered over a single Ethernet cable with IEEE 802.3af/at PoE; Node-RED, LoRaWAN network server and Edgelink software packages are included. It is compatible with external network servers such as Actility, The Things Network, ChirpStack and AWS and provides DHCP, NAT, VLAN, QoS, dynamic routing, a firewall and OpenVPN/IPsec/L2TP/GRE VPN tunnels. 160 × 255 × 79.5 mm, 1.3 kg; micro-SD slot, and two nano-SIM slots for 4G backhaul in the -C models. Ordering codes: WISE-6610P-DEA (EU868), -DNA (NA915), -DTA (AS923).
Technical specifications
| WISE-6610P | |
|---|---|
| WSN support | |
| Standard | LoRaWAN |
| Frequency | IN865 / EU868 / AU915 / US915 / KR920 / AS923 / JP923 |
| Frequency channels | 16 |
| Transmit power | up to 27 dBm |
| Antenna connector | 2 × N-type |
| LAN interface | |
| Ethernet | 10/100 Mbps, auto MDI/MDIX |
| Standards | IEEE 802.3, 802.3u, 802.3af/at (PoE), 802.3ab |
| Protection | 1.5 kV built-in magnetic isolation |
| Software | |
| Network and routing | DHCP server, NAT/PAT, VRRP, dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP client/server, IGMP, BGP, OSPF, RIP, SMTP/SMTPS, SNMP v1/v2c/v3, backup routers, PPP, PPPoE, SSL, port forwarding, host port routing, Ethernet bridging, network server |
| Configuration | SSH, Web |
| Network security | HTTPS, SSH, VPN tunnels, SFTP, DMZ, firewall (IP / MAC / port filtering) |
| VPN tunnelling | OpenVPN client/server/P2P, L2TP, PPTP, GRE, EasyVPN, IPsec (IKEv1/IKEv2) |
| Software packages | Node-RED, LoRaWAN network server, Edgelink |
| Industrial protocols | Modbus/TCP, MQTT, BACnet, OPC UA |
| Mechanics | |
| Dimensions (W × H × D) | 160 × 255 × 79,5 mm |
| Mounting | Pole, wall |
| Weight | 1,3 kg |
| Enclosure rating | IP67 |
| Card slots | 1 × micro SD · 2 × nano SIM (only in WISE-6610P-C models) |
| Environment | |
| Operating temperature | −40…+75 °C |
| Storage temperature | −40…+85 °C |
| Operating humidity | 10 – 95 % RH |
Key features
- 16 channels, Semtech SX1302 chipset — doubles packet-processing speed
- Embedded LoRaWAN network server for private and public networks
- Compatible with network servers such as Actility, The Things Network, ChirpStack and AWS
- Modbus/TCP, MQTT, BACnet and OPC UA protocols
- Built-in Node-RED, LoRaWAN network server and Edgelink software packages
- Global LoRaWAN frequency plans
- IP67 housing, pole and wall mounting
- Powered via IEEE 802.3af PoE
- 4G backhaul (WISE-6610P-C models only)
Ordering information
| Part number | Description |
|---|---|
| WISE-6610P-DEA | 16-channel industrial LoRaWAN gateway — EU868 |
| WISE-6610P-DNA | 16-channel industrial LoRaWAN gateway — NA915 |
| WISE-6610P-DTA | 16-channel industrial LoRaWAN gateway — AS923 |
Accessories and related products
| Part number | Description |
|---|---|
| EKI-2701HP-AC-A | Gigabit IEEE 802.3at PoE+ injector (without power cord) |
| 1702002605 | Power cord for EU, 183 cm |
Is this product right for your vibration-monitoring project?
Share the equipment to be monitored, ambient conditions (standard/Ex, temperature) and your existing infrastructure (LoRaWAN, RS-485, PLC/SCADA); let’s select sensor, gateway and communication path together.
All product specifications are subject to change without notice; data compiled from Advantech’s WISE-6610P datasheet dated 13 May 2026 and the advantech.com product page.
Source: Advantech product data
