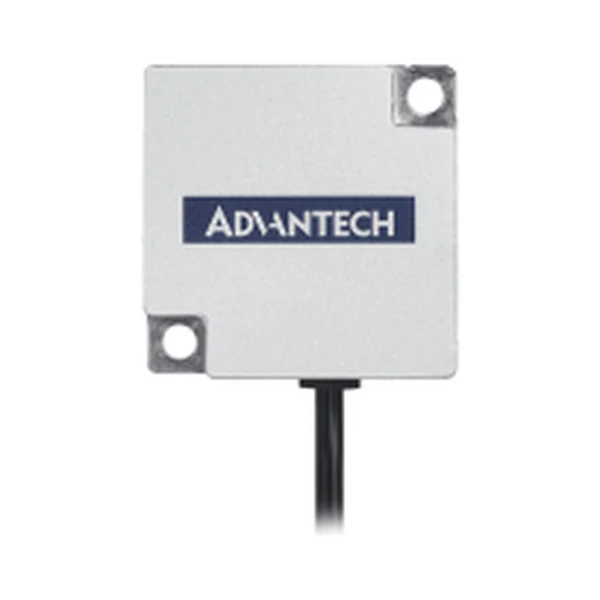

ADVANTECH WISE-2461 — Vibration Sensors
Compact stainless-steel Modbus/RTU sensor with an ARM Cortex-M33 processor, 3-axis 5 – 6000 Hz accelerometer, temperature sensing and ISO 10816 alarm configuration; −40 to +85 °C, IP68.
Status: In production
Product: 6 kHz three-axis RS-485 smart vibration sensor
Communication: RS-485 · Modbus/RTU · M12 D-kodlu
Measurement: 3 axes (X/Y/Z), 5 – 6000 Hz, ±16 g + temperature
Power: 10 – 30 V DC
Protection: IP68, stainless steel, −40 to +85 °C
WISE-2461 is an RS-485 smart vibration sensor that combines an ARM Cortex-M33 processor, a 3-axis accelerometer with 6 kHz bandwidth and a temperature sensor in a 30 × 30 × 13 mm stainless-steel housing. It computes velocity RMS, acceleration RMS/peak, displacement, crest factor and other metrics on all three axes on board; up to 6 customisable frequency bands per axis focus fault diagnosis on the frequencies of interest. ISO 10816 alarm thresholds are configured on the sensor.
A 16,384-point time-waveform record and 6400-line FFT resolution also allow raw-signal capture. The internally potted IP68 housing and −40 to +85 °C range suit outdoor applications; it connects via an M12 D-coded connector with a 1 m cable and mounts by stud, adhesive mounting pad or magnetic base. 10 – 30 V DC supply; CE and FCC certified. The single ordering code is WISE-2461-MA.
Technical specifications
| WISE-2461 | |
|---|---|
| General | |
| Power input | 10 – 30 V DC |
| Communication / configuration | RS-485 (Modbus/RTU) |
| Connector | M12 D-coded male, 1 m cable |
| IP class | IP68 |
| Casing material | Stainless steel |
| Mounting | Stud mount, mounting pad with adhesives, magnetic base |
| Dimensions (W × H × D) | 30 × 30 × 13 mm |
| Certification | CE, FCC |
| Environment | |
| Operating temperature | −40…+85 °C |
| Operating humidity | 10 – 95 % RH |
| Storage temperature | −40…+90 °C |
| Storage humidity | 5 – 95 % RH |
| 3-axis accelerometer | |
| Axes | X, Y, Z |
| Frequency range | 5 – 6000 Hz |
| Amplitude range | ±16 g (±2 / ±4 / ±8 / ±16 g) |
| Time-waveform record length | 16,384 points |
| FFT lines of resolution | 6400 lines |
| Output data rate (sample rate) | 26 667 Hz |
| Accuracy (Z axis) | 5 – 3000 Hz: 10 % · 3001 – 6000 Hz: 20 % |
| Noise | 75 µg/√Hz (X/Y) · 110 µg/√Hz (Z), ±16 g |
| Sensitivity change with temperature | ±1 % |
Key features
- RS-485 serial communication with Modbus/RTU
- 6 kHz @ 3-axis frequency detection range
- Three-axis velocity RMS, acceleration RMS/peak, displacement, crest factor and more for full-spectrum machinery health monitoring
- Up to 6 customisable frequency bands per axis for precise failure diagnosis
- ISO 10816/20816 compliant
- Wide −40 to +85 °C temperature range
- IP68, internally potted design for outdoor applications
Ordering information
| Part number | Description |
|---|---|
| WISE-2461-MA | 6 kHz three-axis smart vibration sensor |
Accessories and related products
| Part number | Description |
|---|---|
| 25F7000004N000 | Magnet base D30 × H9 mm |
| WISE-2410-MTB01 | Metal mounting base |
| 1700028162-01 | M12 A-coded 4-pin female connector with 1 m cable |
| WISE-4051-B | 2.4 GHz Wi-Fi IoT wireless I/O (8 DI / 1 RS-485) — wireless transmission module |
Is this product right for your vibration-monitoring project?
Share the equipment to be monitored, ambient conditions (standard/Ex, temperature) and your existing infrastructure (LoRaWAN, RS-485, PLC/SCADA); let’s select sensor, gateway and communication path together.
All product specifications are subject to change without notice; data compiled from Advantech’s WISE-2461 datasheet dated 25 February 2026 and the advantech.com product page.
