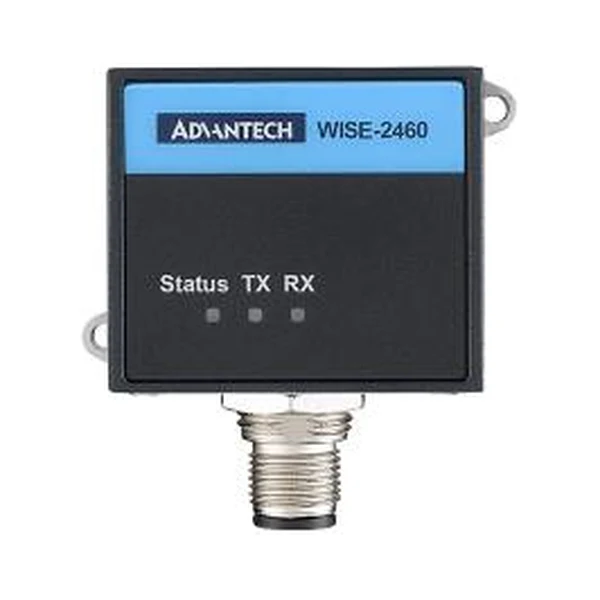

ADVANTECH WISE-2460 — Vibration Sensors
Wired vibration sensor with an ARM Cortex-M7 processor, 5 – 10,000 Hz single-axis (Z) detection range and Modbus/RTU (RS-485) output; −20 to +105 °C, IP68.
Status: In production
Product: 10 kHz single-axis RS-485 smart vibration sensor
Communication: RS-485 · Modbus/RTU
Measurement: 1 axis (Z), 5 – 10,000 Hz, ±50 g
Power: 10 – 30 V DC
Protection: IP68 · −20…+105 °C
WISE-2460 is a robust wired vibration sensor with an ARM Cortex-M7 processor and a single-axis accelerometer detecting up to 10 kHz, communicating over RS-485 with Modbus/RTU. It computes velocity RMS, acceleration RMS and peak, displacement and other vibration metrics on board; up to 10 custom detection bands can be defined between 5 and 10,000 Hz, so high-frequency fault signatures of gearboxes, bearings and high-speed equipment can be monitored.
The fully sealed IP68 housing and −20 to +105 °C operating range allow the sensor to be mounted directly on hot motor housings and in wash-down areas; it attaches via stud, mounting pad/adhesive or magnetic base. It is powered from 10 – 30 V DC and connected to the RS-485 line with an M12 cable. Where wireless transmission is needed, the Modbus data can be carried to a wireless network with the WISE-2200-M LoRaWAN Modbus node or the WISE-4051-B Wi-Fi I/O module; the single ordering code is WISE-2460-MA.
Technical specifications
| WISE-2460 | |
|---|---|
| General | |
| Power input | 10 – 30 V DC |
| LED indicators | Status, TX, RX |
| Communication / configuration | RS-485 (Modbus/RTU) |
| IP class | IP68 |
| Mounting | Stud mount, mounting pad and adhesives |
| Dimensions (W × H × D) | 58,4 × 36,7 × 40 mm |
| Certification | CE |
| Environment | |
| Operating temperature | −20…+105 °C |
| Operating humidity | 10 – 95 % RH |
| Storage temperature | −25…+120 °C |
| Storage humidity | 5 – 95 % RH |
| Single-axis accelerometer | |
| Axis | Z |
| Frequency range | 5 – 10 000 Hz |
| Amplitude range | ±50 g |
| Statistical time-domain values | Velocity RMS (plus acceleration RMS/peak, displacement) |
| Output data rate | 32 768 Hz |
| Accuracy | 5 – 4000 Hz: 5 % · 4001 – 10 000 Hz: 35 % |
| Noise | 25 µg/√Hz (±50 g) |
| Sensitivity change with temperature | ±5 % |
Key features
- RS-485 serial communication with Modbus/RTU
- 10 kHz @ 1-axis frequency detection range
- Velocity RMS, acceleration RMS, acceleration peak, displacement and other vibration data
- Up to 10 customisable detection bands between 5 and 10,000 Hz
- ISO 10816/20816 compliant
- Wide −20 to +105 °C temperature range
- IP68 enclosure
Ordering information
| Part number | Description |
|---|---|
| WISE-2460-MA | 10 kHz single-axis smart vibration sensor |
Accessories and related products
| Part number | Description |
|---|---|
| 25F7000004N000 | Magnet base D30 × H9 mm |
| WISE-2410-MTB01 | Metal mounting base |
| 1700028162-01 | M12 A-coded 4-pin female connector with 1 m cable |
| BB-RPS-V2-WR2-EU | 12 V / 1 A power supply, EU plug |
| WISE-4051-B | 2.4 GHz Wi-Fi IoT wireless I/O (8 DI / 1 RS-485) — wireless transmission module |
