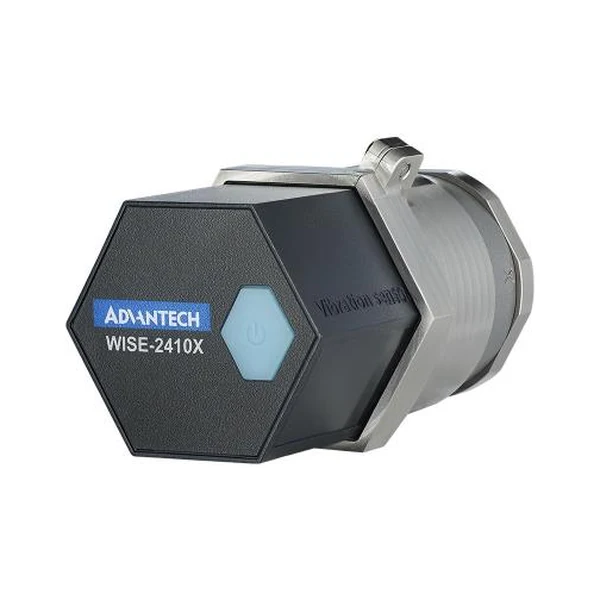

ADVANTECH WISE-2410X — Vibration Sensors
The ATEX- and IECEx-certified version of the WISE-2410 for hazardous and explosive environments: 3-axis acceleration + temperature, on-board computing, ISO 10816/20816-compliant, battery powered, IP65.
Status: In production
Product: Explosion-proof LoRaWAN smart vibration sensor
Communication: LoRaWAN
Ex certification: IECEx Zone 2 / Zone 21 · ATEX Cat. 2 · C1D2 · TS · INMETRO
Measurement: 3-axis acceleration + temperature
Protection: IP65 · 0…+70 °C
WISE-2410X combines vibration and temperature measurement in one housing and is ATEX- and IECEx-certified for installation in hazardous and explosive environments. It reports the equipment’s operating status accurately by cross-comparing RMS velocity and eigenvalues against the ISO 10816-1 classes and vibration characteristic values. The measurement chain matches the WISE-2410: 3-axis accelerometer, 6600 Hz output data rate, 5 – 1000 Hz frequency range, selectable ±2/±4/±8/±16 g amplitude.
Battery power and remote configuration support allow commissioning without cabling; settings are made with WISE Studio. Four ordering codes exist: WISE-2410X-A02EA for the EU 863-870 / RU 864-870 MHz band, and WISE-2410X-A02NA, -E21NA and -C12NA for the US 902-928 / AU 915-928 / AS 919-924 / TH 920-925 / JP 920-928 MHz bands (confirm the certification/region difference between codes with Advantech). No datasheet is published on the Advantech site for this product; the values below come from the product page’s specification table.
Technical specifications
| WISE-2410X | |
|---|---|
| Wireless communication | |
| Standard | LoRaWAN |
| Frequency band | -A02EA: EU 863-870 / RU 864-870 MHz · -A02NA, -E21NA, -C12NA: US 902-928 / AU 915-928 / AS 919-924 / TH 920-925 / JP 920-928 MHz |
| Environment and enclosure | |
| Ingress protection | IP65 |
| Operating temperature | 0…+70 °C |
| Hazardous-area certification | IECEx Zone 2, Zone 21 · ATEX Cat. 2 · C1D2 · TS · INMETRO |
| Vibration sensor | |
| Axes | X, Y, Z |
| Output data rate | 6600 Hz |
| Frequency range | 5 – 1000 Hz |
| Amplitude range | ±2 g, ±4 g, ±8 g, ±16 g |
| Accuracy | 5 – 1000 Hz (5 %) |
Key features
- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- On-board computing: VRMS, ARMS, peak, displacement, kurtosis, crest factor, skewness and standard deviation
- Battery power and remote configuration — no wiring installation needed
- Easy settings with WISE Studio
- ISO 10816 and ISO 20816 compliant
- 0 to +70 °C operating temperature
- IP65 enclosure
- IECEx Zone 2, Zone 21, ATEX Cat. 2, C1D2, TS, INMETRO compliant
Ordering information
| Part number | Description |
|---|---|
| WISE-2410X-A02EA | Explosion-proof LoRaWAN vibration sensor — EU 863-870 / RU 864-870 MHz |
| WISE-2410X-A02NA | Explosion-proof LoRaWAN vibration sensor — US/AU/AS/TH/JP bands |
| WISE-2410X-E21NA | Explosion-proof LoRaWAN vibration sensor — US/AU/AS/TH/JP bands |
| WISE-2410X-C12NA | Explosion-proof LoRaWAN vibration sensor — US/AU/AS/TH/JP bands |
Accessories and related products
| Part number | Description |
|---|---|
| 1760002647-01 | 3.6 V / 2500 mAh AA Li/SOCl2 battery |
| 25F7000004N000 | Magnet base D30 × H9 mm |
| WISE-2410-MTB01 | Metal mounting base |
Is this product right for your vibration-monitoring project?
Share the equipment to be monitored, ambient conditions (standard/Ex, temperature) and your existing infrastructure (LoRaWAN, RS-485, PLC/SCADA); let’s select sensor, gateway and communication path together.
All product specifications are subject to change without notice; data compiled from the specification table of the advantech.com WISE-2410X product page (no datasheet is published for this product).
Source: Advantech product data
