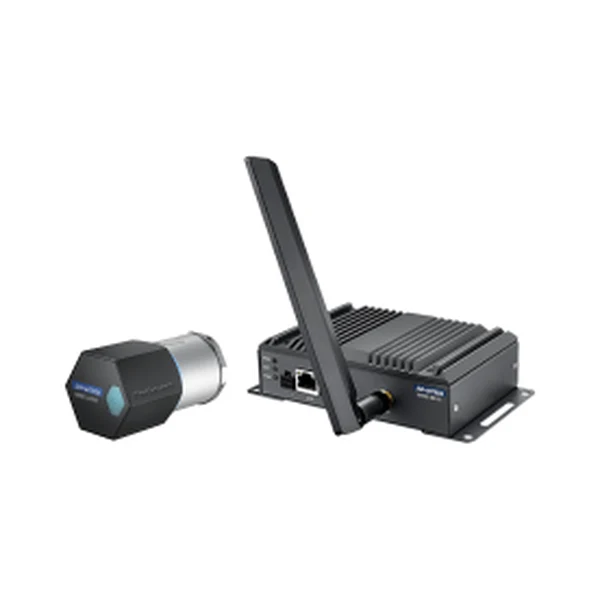

ADVANTECH WISE-2410SK — Vibration Sensors
A vibration-monitoring package that works out of the box: WISE-2410 vibration sensor + WISE-6610 LoRaWAN gateway + magnetic base + 2 batteries + gateway power adapter.
Status: In production
Product: LoRaWAN wireless condition-monitoring starter kit
Kit contents: WISE-2410 sensor, WISE-6610 gateway, magnetic base, 2 × AA battery, AC/DC adapter
Communication: LoRaWAN US 902-928 MHz (WISE-2410SK-NA)
Measurement: 3-axis acceleration + temperature
Protection: IP66 · −20…+80 °C
WISE-2410SK is a ready-to-use solution that delivers LoRaWAN wireless condition monitoring in one package: a WISE-2410 vibration sensor, a WISE-6610 LoRaWAN gateway, a magnetic base and two batteries for the sensor, and an AC/DC adapter for the gateway. For pilot deployments, single-machine monitoring or plants evaluating LoRaWAN infrastructure, it removes the need to select gateway and sensor separately.
The kit’s sensor has the same measurement chain as the standard WISE-2410: 3-axis accelerometer, on-board velocity RMS/acceleration/displacement/kurtosis/crest factor/skewness/standard deviation, temperature measurement, ISO 10816-1 compliance, IP66 enclosure and roughly two years of battery operation. Ordering code WISE-2410SK-NA is for the US 902-928 MHz band; for the EU868 band, order the WISE-2410-EB sensor and WISE-6610-EB gateway separately.
Technical specifications
| WISE-2410SK | |
|---|---|
| Package | |
| Contents | 1 × WISE-2410 vibration sensor, 1 × WISE-6610 LoRaWAN gateway, 1 × magnetic base, 2 × 3.6 V AA battery, 1 × AC/DC adapter (gateway) |
| Sensor — wireless communication | |
| Standard | LoRaWAN |
| Frequency band | US 902-928 MHz |
| Spreading factor | SF7 – SF12 |
| Transmit power | up to 20 dBm |
| Sensitivity | −148 dB |
| Sensor — general | |
| Power input | 2 × 3.6 V AA battery (included in kit) |
| Battery life | 2 years (one data update per hour) |
| IP class | IP66 |
| Mounting | Stud, mounting pad/adhesive, magnetic base (in kit) |
| Dimensions (H × D) | 84,7 × 48,3 mm |
| Operating temperature | −20 to +80 °C (battery powered) |
| Sensor — 3-axis accelerometer | |
| Axes | X, Y, Z |
| Frequency range | 10 – 1000 Hz |
| Amplitude range | ±16 g |
| Output data rate | 6600 Hz |
| Statistical time-domain values | Velocity RMS; acceleration RMS and peak; displacement; kurtosis; crest factor; skewness; standard deviation |
| Temperature measurement | −20…+120 °C |
Key features
- Sensor + gateway + accessories in one package, ready to install
- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- On-board computing: VRMS, ARMS, peak, displacement, kurtosis, crest factor, skewness, standard deviation
- Battery powered — no wiring installation needed
- Easy settings with WISE Studio
- ISO 10816-1 compliant
- IP66 enclosure, −20 to +80 °C
Ordering information
| Part number | Description |
|---|---|
| WISE-2410SK-NA | Wireless smart condition-monitoring starter kit — US 902-928 MHz |
Is this product right for your vibration-monitoring project?
Share the equipment to be monitored, ambient conditions (standard/Ex, temperature) and your existing infrastructure (LoRaWAN, RS-485, PLC/SCADA); let’s select sensor, gateway and communication path together.
All product specifications are subject to change without notice; data compiled from Advantech’s WISE-2410SK datasheet dated 19 July 2023 and the advantech.com product page.
