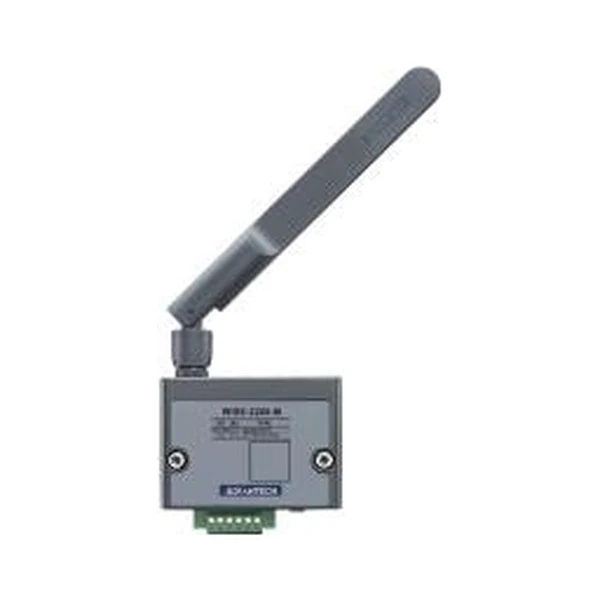

ADVANTECH WISE-2200-M — Vibration Sensors
Single-channel RS-485 communication device that carries data from wired Modbus sensors such as the WISE-2460/2461 onto a LoRaWAN network: 128 Modbus addresses, 30 rules, 5 – 50 V DC wide input, DIN-rail/wall/pole mounting.
Status: In production
Product: LoRaWAN Modbus/RTU RS-485 node
Wireless: LoRaWAN · EU868 / US915 / AS923 / CN470 (kod bazlı)
Wired interface: 1 × RS-485 · Modbus/RTU · 128 adres · 30 kural
Power: 5 – 50 V DC · 1,5 W
Environment: −25…+70 °C · 71 × 52 × 30 mm
WISE-2200-M is a read/write communication node that connects RS-485 Modbus/RTU devices to a LoRaWAN network. It supports up to 128 Modbus addresses and 30 rule definitions; wired vibration sensors such as the WISE-2460 and WISE-2461, or meters and gauges, are connected to the RS-485 line, and the node polls them and forwards the values over LoRaWAN to a WISE-6610-series gateway. Wireless collection thus becomes possible for wired sensors without pulling network infrastructure.
LoRaWAN’s low power and high penetration, with up to 20 dBm transmit power and −148 dB receiver sensitivity, cover large areas. It is powered from a terminal block over a 5 – 50 V DC wide input at 1.5 W, configured via Micro-B USB and mounted on DIN 35 rail, wall or pole. It is certified NCC, FCC, CE, ANATEL, NBTC, RCM, KC and TELEC. Order WISE-2200-MEA (EU868), -MNA (NA915; optional patches for KR/AU/JP), -MTA (AS923) or -MCA (CN470) according to the frequency plan.
Technical specifications
| WISE-2200-M | |
|---|---|
| Wireless communication | |
| Standard | LoRaWAN |
| Frequency bands | EU 863-870 / RU 864-870 / US 902-928 / AU 915-928 / AS 919-924 / TH 920-925 / JP 920-928 / CN 470-520 MHz |
| Spreading factor | SF7 – SF12 |
| Transmit power | up to 20 dBm |
| Topology | Star (LoRa/LoRaWAN) |
| Sensitivity | −148 dB |
| Data rate | 50 kbps (FSK, EU) · 21,9 kbps (SF7, US/TW) · 5,47 kbps (SF7, JP) |
| General | |
| Channel | 1 × RS-485 (Modbus connection; Data+, Data−) |
| Messaging protocol | Modbus/RTU |
| Capacity | max. 128 addresses, 30 rules |
| LED indicators | 2 |
| Power input | 5 – 50 V DC, terminal block |
| Power consumption | 1,5 W |
| Configuration interface | Micro-B USB |
| Mounting | DIN 35 rail, wall, pole |
| Dimensions (W × H × D) | 71 × 52 × 30 mm (without antenna) |
| Certification | NCC, FCC, CE, ANATEL, NBTC, RCM, KC, TELEC |
| Environment | |
| Operating temperature | −25…+70 °C |
| Operating humidity | 5 – 95 % RH |
| Storage temperature | −40…+85 °C |
| Storage humidity | 0 – 95 % RH |
Key features
- LoRaWAN wireless technology with less interference and high penetration
- Modbus/RTU communication protocol support
- Up to 128 addresses and 30 rule settings
- 5 – 50 V DC wide input power range
- Compact design for plug-and-play applications
- Industrial design for different environments
Ordering information
| Part number | Description |
|---|---|
| WISE-2200-MEA | LoRaWAN Modbus R/W communication device — EU868 |
| WISE-2200-MNA | LoRaWAN Modbus R/W communication device — NA915 (optional patches: KR, AU/NZ/BR, JP) |
| WISE-2200-MTA | LoRaWAN Modbus R/W communication device — AS923 |
| WISE-2200-MCA | LoRaWAN Modbus R/W communication device — CN470 |
Accessories and related products
| Part number | Description |
|---|---|
| WISE-6610-EB / -NB / -TB / -JB / -CB | LoRaWAN gateway (EU868 / NA915 / AS923 / JP923 / CN470) |
Is this product right for your vibration-monitoring project?
Share the equipment to be monitored, ambient conditions (standard/Ex, temperature) and your existing infrastructure (LoRaWAN, RS-485, PLC/SCADA); let’s select sensor, gateway and communication path together.
All product specifications are subject to change without notice; data compiled from Advantech’s WISE-2200-M datasheet dated 14 May 2026 and the advantech.com product page.
