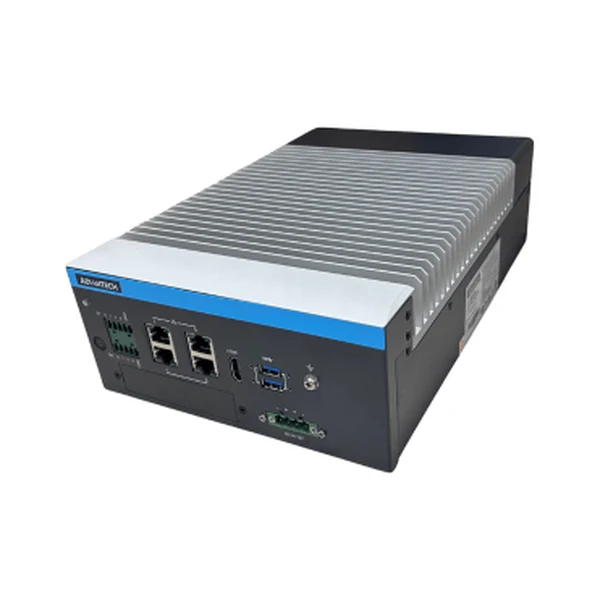

ADVANTECH MIC-733-TS — NVIDIA AI PC
NEMA TS2 compliant compact fanless AI inference system for traffic cabinets based on NVIDIA Jetson AGX Orin 32 GB (200 TOPS) — −34 to 74 °C, 500 ms power-interruption backup, 4 × GbE PoE / 2 × PoE+ (60 W), 4K HDMI, 2 × USB 3.0, 4 DI / 4 DO, 2 × RS-232/422/485; 2 × Mini PCIe, 2 × nano SIM, M.2 B key, iDoor, TPM 2.0; 512 GB NVMe and a ruggedised 240 W adapter included; Allxon remote management. Advantech catalogue status “Release to Market”.
Status: In production
Product: NEMA TS2 traffic AI inference system — Jetson AGX Orin 32 GB, −34 to 74 °C, 4 × PoE
AI module: Jetson AGX Orin 32 GB (200 TOPS)
Traffic standard: NEMA TS2 · −34 to 74 °C · 500 ms power-interruption backup
Interfaces: 4 × GbE PoE / 2 × PoE+ (60 W) · 4K HDMI · 2 × USB 3.0 · 4 DI / 4 DO · 2 × COM
Power / size: 12 VDC (240 W adapter included) · 192 × 290 × 87 mm · desktop / wall
MIC-733-TS is the version of the MIC-733 platform adapted to NEMA TS2 requirements for traffic signal cabinets: −34 to 74 °C operating temperature (in 30 W AGX Orin mode), 500 ms power-interruption backup and the ruggedised 240 W adapter in the package are aimed at uninterrupted operation in intersection control cabinets. It ships with a Jetson AGX Orin 32 GB module (8-core, 1792 CUDA + 56 Tensor Cores, 200 TOPS), 64 GB eMMC and a pre-installed 512 GB industrial NVMe (−40 to 85 °C). The 192 × 290 × 87 mm chassis is deeper than MIC-733-AO (power section), weighs 4.5 kg and mounts on a desktop or wall. The Advantech catalogue status is “Release to Market”; the product page has no web specification table beyond the photo, so the data is taken from the datasheet.
The four Gigabit Ethernet ports power four Gigabit PoE cameras or two PoE+ devices with the 60 W PoE board in the package; 4K HDMI, two USB 3.0, four DI / four DO and two RS-232/422/485 on a pin header connect detectors, the signal controller and a local display. Two Mini PCIe and two nano SIMs take Wi-Fi and 4G modules, the M.2 3052 B key takes a 5G + GNSS module; the iDoor bracket reserve and the SPI TPM 2.0 module are optional; micro SD adds storage. It ships with the JetPack 6.1 and above BSP; Allxon provides 24/7 remote monitoring and OTA deployment, the OOB module out-of-band management. Certifications NEMA TS2, CE, FCC; there is no RED certificate.
Technical specifications
| MIC-733-TS | |
|---|---|
| System (Jetson module) | |
| Jetson module | NVIDIA Jetson AGX Orin 32 GB |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit, 2 MB L2 + 4 MB L3 |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, up to 930 MHz |
| AI performance | Up to 200 TOPS |
| Memory | 32 GB 256-bit LPDDR5 |
| Flash | 64 GB eMMC (ordering table) |
| I/O | |
| Ethernet | 4 × 10/100/1000 Mbps — 4 × Gigabit PoE or 2 × PoE+, 60 W total power budget (PoE board 98917330011 included) |
| Display | HDMI (up to 3840 × 2160 @ 60 Hz) |
| USB | 2 × USB 3.0; 1 × Micro USB OTG (recovery) |
| Digital I/O | 4-ch DI, 4-ch DO (5-pin terminal blocks included) |
| Serial port | 2 × RS-232/422/485 (on-board pin header; optional DB9 extension cable 1700019968) |
| Power switch | 1 × power on/off button |
| Expansion and storage | |
| Mini PCIe / SIM / M.2 | 2 × Mini PCIe (PCIe + USB); 2 × nano SIM; 1 × M.2 3052 B key (USB) |
| iDoor / TPM (optional) | 1 × iDoor bracket reserve; TPM 2.0 module |
| Storage | 1 × M.2 2280 M key — 512 GB 3D TLC NVMe (−40 to 85 °C) pre-installed; 1 × micro SD |
| Power | |
| Input voltage | 12 VDC — with the ruggedised 240 W adapter included (XMIC-FSP270-RHAN3, 4-pin terminal block) |
| Power interruption | 500 ms power-interruption backup (NEMA TS2) |
| Power mode | AT / ATX (AT default) |
| Environment | |
| Operating temperature | −34 to 74 °C (0.7 m/s airflow, 30 W AGX Orin mode); derating possible in MaxN mode and with an LTE module |
| Humidity | 95 % @ 40 °C (non-condensing) |
| Vibration | 3 Grms, 5 – 500 Hz, random, 1 hr/axis |
| Shock | 10 G / 11 ms |
| Mechanical and software | |
| Dimensions (W × D × H) | 192 × 290 × 87 mm |
| Weight | 4.5 kg |
| Installation | Desktop / wall mount (2 brackets included) |
| BSP / remote management | JetPack 6.1 and above; Allxon 24/7 remote monitoring and OTA |
| Certification | |
| Certification | NEMA TS2, CE, FCC (no RED certification) |
Key features
- Compact fanless design
- Embedded NVIDIA Jetson AGX Orin
- NEMA TS2 compliance
- −34 to 74 °C operating temperature support
- 500 ms power-interruption backup (based on NEMA TS2)
Ordering information
| Part number | Description |
|---|---|
| MIC-733-TS5A1 | Jetson AGX Orin 32 GB, 64 GB eMMC, 512 GB NVMe pre-installed, 60 W PoE board and 240 W adapter included |
No part number is listed on the advantech.com product page; the single SKU comes from the datasheet dated 27 April 2026 (Advantech catalogue status “Release to Market”). The package includes the 4-pin power and 2 × 5-pin DI/DO terminal blocks, a Micro USB cable for recovery, EU and US power cords, the 240 W adapter, the PoE board, the 512 GB NVMe and 2 mounting brackets.
Accessories and optional items
| Part number | Description |
|---|---|
| SQF-C8M… / 96FD80-P1TB-TS1 | SQFlash M.2 2280 NVMe SSD 128 GB – 2 TB (0 to 70 / −20 to 85 / −40 to 85 °C grades) or SSSTC 1 TB Gen4 (−25 to 85 °C) |
| EWM-W173H01E / EWM-W172H01E | Wi-Fi 6 + BT 5.0 / Wi-Fi 5 + BT 4.2 Mini PCIe module; antenna cable 1751000626-01, IP67 antenna 1751000717-01 or IP54 antenna 1751000460-01, bracket 9656EWMG00E |
| AIW-356-DQ | 5G Sub-6 + GNSS M.2 3052 B key module (by region); 4 × antenna cable 1751000623-01, 4 × antenna 1750009372-01 |
| 98RV710AL00 | Allxon OOB (out-of-band) module |
| 1700029019-01 | Power cord PSE/BSMI |
| PCA-TPMSPI-00A1 | TPM 2.0 module (SPI) |
| 1700019968 + 1960068789T008 | 2 × DB9 extension cable and iDoor COM×2 cover for the on-board serial ports; iDoor PCM module bracket 1960065854N021 |
Is this AI inference system right for your project?
Share your application (field / traffic cabinet), the number and type of cameras (PoE / GMSL2 / USB), the wireless (4G / 5G / Wi-Fi) and storage needs, the ambient temperature and the supply voltage; let’s decide on the module (32 / 64 GB), the model and the accessory set together. FST configures the MIC-733 system with the camera, wireless module and SSD selection and delivers it as one solution with model commissioning and remote-management setup services.
All product specifications are subject to change without notice; data compiled from Advantech’s MIC-733-TS datasheet dated 27 April 2026 and the advantech.com product page.
