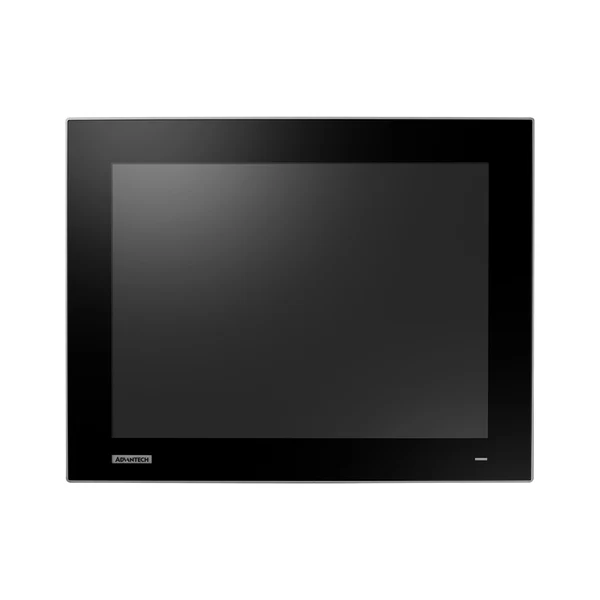

ADVANTECH FPM-719 — Industrial Panels
19″ SXGA (1280 × 1024) resistive-touch industrial monitor — 350 cd/m², HDMI/DP/VGA inputs, IP66 front panel, −20 to 60 °C, 24 VDC, panel/wall/VESA/rack mounting.
Status: In production
Product: 19″ industrial touch monitor — SXGA, IP66 front panel
Display: 19″ · 1280 × 1024 · 350 cd/m²
Touch: Resistive (USB / RS-232)
Video input: HDMI · DP · VGA
Protection: IP66 front panel · −20 to 60 °C
FPM-719 is the 19″ SXGA (1280 × 1024) resistive-touch industrial monitor of Advantech’s FPM-700 series: 350 cd/m² brightness, 1000:1 contrast, 170 / 160° viewing angle and a 70,000-hour backlight. The 5-wire analog resistive screen suits glove use; the anti-glare tempered-glass surface and two user-defined contrast/brightness settings on the OSD buttons allow quick adjustment on site. The 19″ SXGA screen with a 70,000-hour backlight and 4H surface hardness is intended for main operator stations in control rooms and bright production areas.
The three models share one platform: direct HDMI, DisplayPort and VGA inputs, a combo USB/RS-232 touch interface, 1 × USB 2.0 at the rear, 24 VDC via terminal block and lockable connectors. The front panel is die-cast magnesium alloy and the rear cover die-cast aluminium; the front is IP66-rated. A −20 to 60 °C operating range, 1 Grms vibration resistance and stand/wall/panel/VESA 75 mounting cover on-machine and cabinet-door applications. In the ordering code, -R9AE is made in China and -R9AU in Taiwan; the rack-mount kit and 60 W adapter are optional.
Technical specifications
| FPM-719 | |
|---|---|
| LCD display | |
| Display type | 19″ SXGA TFT LED LCD |
| Aspect ratio | 5:4 |
| Max. resolution | 1280 × 1024 |
| Max. colours | 16.7 million |
| Viewing angle (H / V) | 170 / 160° |
| Luminance | 350 cd/m² |
| Contrast ratio | 1000:1 |
| Backlight life | 70,000 hr |
| Touchscreen | |
| Touch type | 5-wire analog resistive |
| Touch interface | USB / RS-232 (combo) |
| Light transmission | Above 75 % |
| Surface hardness | 4H |
| OS support | Windows XP / Vista / 7 / 8 / 10 / 11, XPe and Linux |
| Interfaces and power | |
| Video ports | HDMI, DisplayPort, VGA |
| USB (rear I/O) | 1 × USB 2.0 Type A (touch) |
| Power input | Terminal block, 24 VDC |
| Power consumption (standby / max.) | 1.04 W / 15.44 W |
| Physical characteristics | |
| Dimensions (W × H × D) | 454 × 379.8 × 48.5 mm |
| Panel cutout | 443.5 × 369.3 mm |
| Weight (net) | 6.2 kg |
| Enclosure | Front panel: die-cast magnesium alloy; rear cover: die-cast aluminium |
| Mount options | Stand, wall, panel and VESA arm (75 × 75 mm) |
| Environment | |
| Operating temperature | −20 to 60 °C |
| Storage temperature | −30 to 70 °C |
| Relative humidity | Operating 95 % @ 40 °C, non-operating 95 % @ 60 °C (non-condensing) |
| Front panel protection | IP66 |
| Vibration | 5 – 500 Hz, 1 Grms (operating, random) |
| Certification | |
| Certification | BSMI, CCC, CE, FCC Class A, UL, KC (datasheet); the web table also lists CB |
| Packing list | |
| In the box | Terminal block, panel clampers and screws, ground cable, USB touch cable (1.69 m), VGA cable (1.8 m), HDMI/DP lockable kit |
Key features
- 19″ SXGA TFT LED LCD, 350 cd/m², 70,000-hour backlight life
- 5-wire analog resistive
- Direct HDMI, DP and VGA inputs; anti-glare tempered-glass surface; OSD buttons with 2 user-defined contrast/brightness settings
- Die-cast aluminium chassis with IP66-rated aluminium alloy front bezel
- Lockable I/O connectors
- Slim design for easy panel installation
- Panel, wall, desktop or VESA arm mounting
Ordering information
| Part number | Description |
|---|---|
| FPM-719-R9AE | 19″ SXGA industrial monitor with resistive touchscreen, 24 VDC (made in China) |
| FPM-719-R9AU | 19″ SXGA industrial monitor with resistive touchscreen, 24 VDC (made in Taiwan) |
The last letter of the part number indicates the place of manufacture: E = China, U = Taiwan. The monitor has no compute of its own; the video source (box PC, PLC, IPC) is selected separately.
Accessories and optional items
| Part number | Description |
|---|---|
| PWR-247-DE | Power adapter 100 – 240 V, 60 W, 24 V / 2.5 A |
| 1702002605 | Power cable, EU plug, 1.8 m |
| 1702002600 / 1702031801-11 / 1700000596-11 | Power cable, US / UK / China-Australia plug, 1.8 m |
| FPM-719-RMKE | FPM-719 rack-mount kit |
| FPM-200W-ADKE | Adapter bracket (datasheet; the web accessory list shows FPM-7000G-ADKE “mounting bracket of adapter”) |
| FPM-1000T-SMKE | Desktop mounting kit for FPM series |
| PPC-174T-WL-MTE | Wall mount kit (A800B) |
| PPC-ARM-A03 | VESA-standard arm (A-CLEVER) |
| PPC-STAND-A1E | Stand mounting kit |
Is this monitor right for your project?
Share the screen size and touch type (glove use → resistive, multi-touch → P-CAP), your panel cutout, ambient conditions and the video output of the computer to be connected (HDMI/DP/VGA/USB-C); let’s choose the model, mounting kit and, if needed, the box PC together. FST commissions the monitor together with the industrial computer and SCADA/HMI software as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s FPM-719 datasheet dated 8 September 2026 and the advantech.com product page.
Source: Advantech product data
