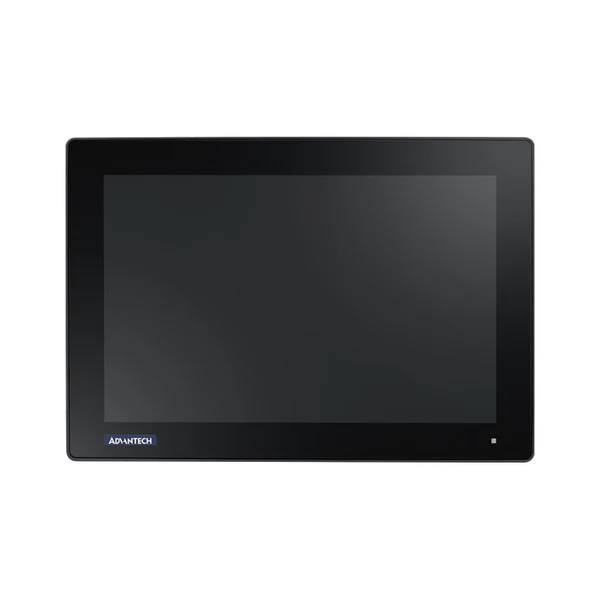

ADVANTECH FPM-710SW — Industrial Panels
10.1″ WUXGA (1920 × 1200) P-CAP touch industrial monitor — video, touch and power over a single USB-C cable, plus HDMI/DP inputs, IP66 true-flat front, 380 cd/m², 12 – 24 VDC, panel/VESA 100 mounting. Listed as “New” by Advantech.
Status: In production
Product: 10.1″ industrial touch monitor — WUXGA, IP66 front panel
Display: 10.1″ · 1920 × 1200 · 380 cd/m²
Touch: P-CAP 10-point (USB)
Video input: HDMI, DisplayPort and USB Type-C (video + touch + power over one cable)
Protection: IP66 front panel · −10 to 50 °C
FPM-710SW is Advantech’s first single-cable industrial touch monitor: the USB Type-C connection carries video, touch data and power over one cable, with HDMI and DisplayPort inputs also available. The 10.1″ WUXGA (1920 × 1200) 16:10 panel offers 380 cd/m² brightness, 800:1 contrast, 178° viewing angle and a 30,000-hour backlight; 10-point P-CAP touch sits behind a 7H true-flat glass surface. The compact body (260.5 × 179.1 × 45 mm, 1.1 kg) ships with a built-in panel mount kit; stand, wall and VESA 100 arm mounting are also supported.
Single-cable operation requires the host’s Type-C port to supply video and power; Advantech’s datasheet lists UNO-238-C3N1AE / C5N1AE / C7N1AE and UNO-2271G-I331AE as compatible (driving several monitors from one PC depends on host capability). In classic wiring, 12 – 24 VDC is fed via terminal block with HDMI/DP plus USB touch; consumption is max. 10.66 W at 24 V. The die-cast aluminium body and IP66 front bezel, −10 to 50 °C operating range and 1 Grms vibration resistance suit on-machine and cabinet-door use. The box includes USB-C (2 m), HDMI (2 m), USB touch and ground cables plus an HDMI/DP lockable kit.
Technical specifications
| FPM-710SW | |
|---|---|
| LCD display | |
| Display type | 10.1″ WUXGA TFT LED LCD |
| Aspect ratio | 16:10 |
| Max. resolution | 1920 × 1200 |
| Max. colours | 16.7 million |
| Viewing angle (H / V) | 178 / 178° |
| Luminance | 380 cd/m² |
| Contrast ratio | 800:1 |
| Backlight life | 30,000 hr |
| Touchscreen | |
| Touch type | Projected capacitive (P-CAP), 10-point multi-touch |
| Touch interface | USB |
| Surface hardness | 7H |
| OS support | Windows 7 / 8 / 10 / 11, XPe, CE and Linux (multi-touch: Windows 7/8/10, Linux) |
| Interfaces and power | |
| Video ports | HDMI, DisplayPort and USB Type-C (video + touch + power over one cable) |
| USB (rear I/O) | USB 3.0 Type A → Type B (touch) |
| Power input | Terminal block, 12 – 24 VDC (or USB-C) |
| Power consumption (standby / max.) | 12 V: 1.04 W / 10.16 W · 24 V: 0.82 W / 10.66 W |
| Type-C compatible hosts (Advantech) | UNO-238-C3N1AE / C5N1AE / C7N1AE, UNO-2271G-I331AE |
| Physical characteristics | |
| Dimensions (W × H × D) | 260.5 × 179.1 × 45.0 mm |
| Panel cutout | 251.1 × 169.7 mm (corner R5, ± 0.5 mm) |
| Weight (net) | 1.1 kg |
| Enclosure | Front panel and rear cover: die-cast aluminium |
| Mount options | Stand, wall, panel and VESA arm (100 × 100 mm) |
| Environment | |
| Operating temperature | −10 to 50 °C |
| Storage temperature | −20 to 60 °C |
| Relative humidity | Operating 95 % @ 40 °C, non-operating 95 % @ 60 °C (non-condensing) |
| Front panel protection | IP66 |
| Vibration | 5 – 500 Hz, 1 Grms (operating, random) |
| Certification | |
| Certification | BSMI, CCC, CE, FCC Class A, UL, CB, KC |
| Packing list | |
| In the box | Terminal block, USB-C cable (2 m, USB 3.2), HDMI cable (2 m), USB touch cable (1.05 m), ground cable, HDMI/DP lockable kit |
Key features
- 10.1″ WUXGA TFT LED LCD, 380 cd/m², 30,000-hour backlight life
- Projected capacitive (P-CAP), 10-point multi-touch
- True-flat glass surface, widescreen format (40 % more viewing area)
- Die-cast aluminium chassis with IP66-rated aluminium alloy front bezel
- Lockable I/O connectors
- Slim design for easy panel installation
- Panel, wall, desktop or VESA arm mounting
Ordering information
| Part number | Description |
|---|---|
| FPM-710SW-P7AE | 10.1″ WUXGA industrial monitor with P-CAP touch (made in China) |
| FPM-710SW-P7AU | 10.1″ WUXGA industrial monitor with P-CAP touch (made in Taiwan) |
The last letter of the part number indicates the place of manufacture: E = China, U = Taiwan. The monitor has no compute of its own; the video source (box PC, PLC, IPC) is selected separately.
Accessories and optional items
| Part number | Description |
|---|---|
| PWR-247-DE | Power adapter 100 – 240 V, 60 W, 24 V / 2.5 A |
| 1702002605 | Power cable, EU plug, 1.8 m |
| 1702002600 / 1702031801-11 / 1700000596-11 | Power cable, US / UK / China-Australia plug, 1.8 m |
| FPM-1000T-SMKE | Desktop mounting kit for FPM series |
| PPC-174T-WL-MTE | Wall mount kit (A800B) |
| PPC-ARM-A03 | VESA-standard arm (A-CLEVER) |
| PPC-STAND-A1E | Stand mounting kit |
Is this monitor right for your project?
Share the screen size and touch type (glove use → resistive, multi-touch → P-CAP), your panel cutout, ambient conditions and the video output of the computer to be connected (HDMI/DP/VGA/USB-C); let’s choose the model, mounting kit and, if needed, the box PC together. FST commissions the monitor together with the industrial computer and SCADA/HMI software as one solution.
All product specifications are subject to change without notice; data compiled from Advantech’s FPM-710SW datasheet dated 8 September 2026 and the advantech.com product page.
